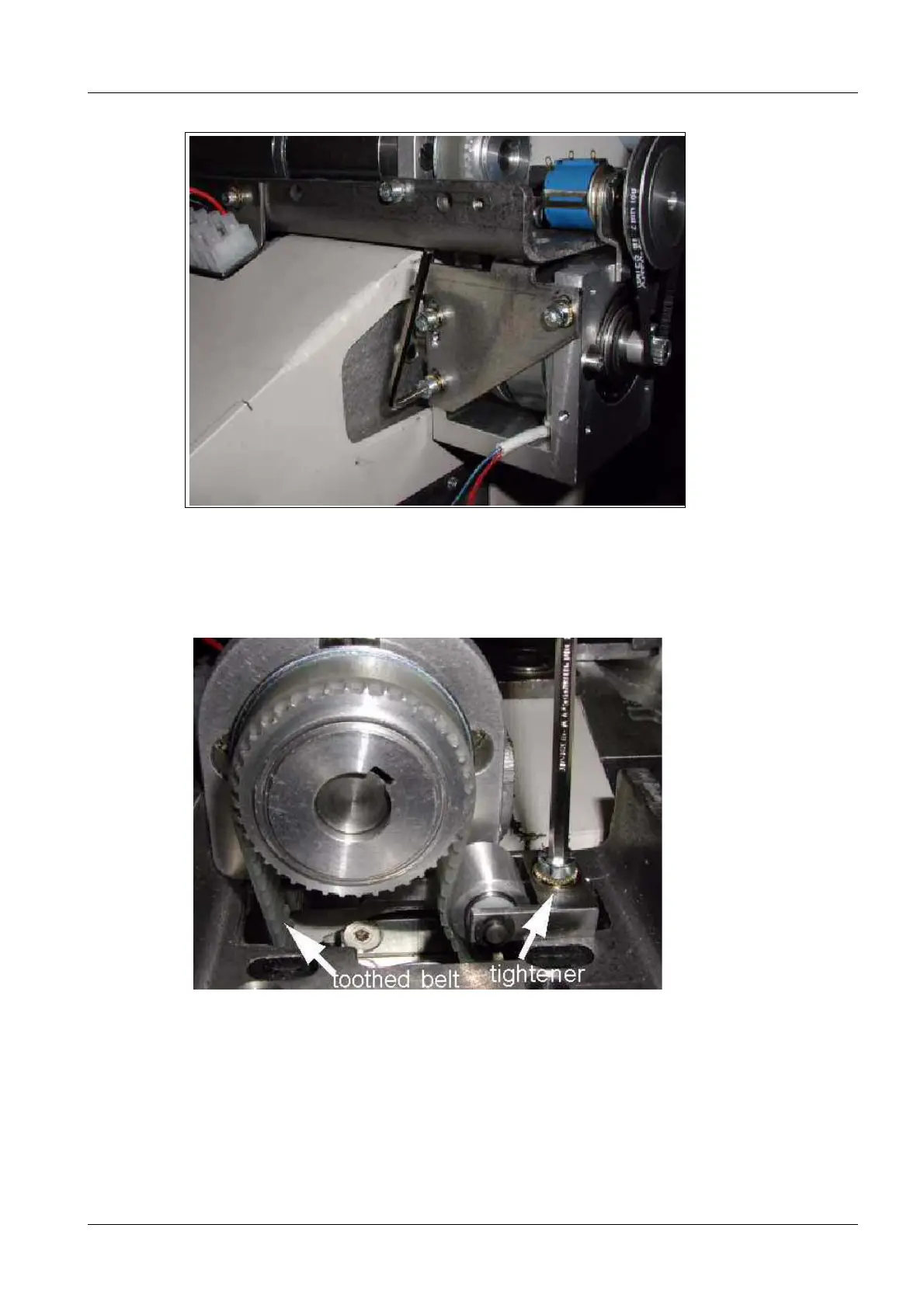

Fig. 31: Lateral bracket_1
• Attach lateral brackets (Fig. 30 / p. 34) on both sides (Fig. 31 / p. 35), first on top and
then on the side; use big washers.
Fig. 32: Toothed belt
