Siemens ARCADIS Orbic Installation And Startup

36 3D Reconstruction Upgrade Part 2
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 36 of 46
Medical Solutions

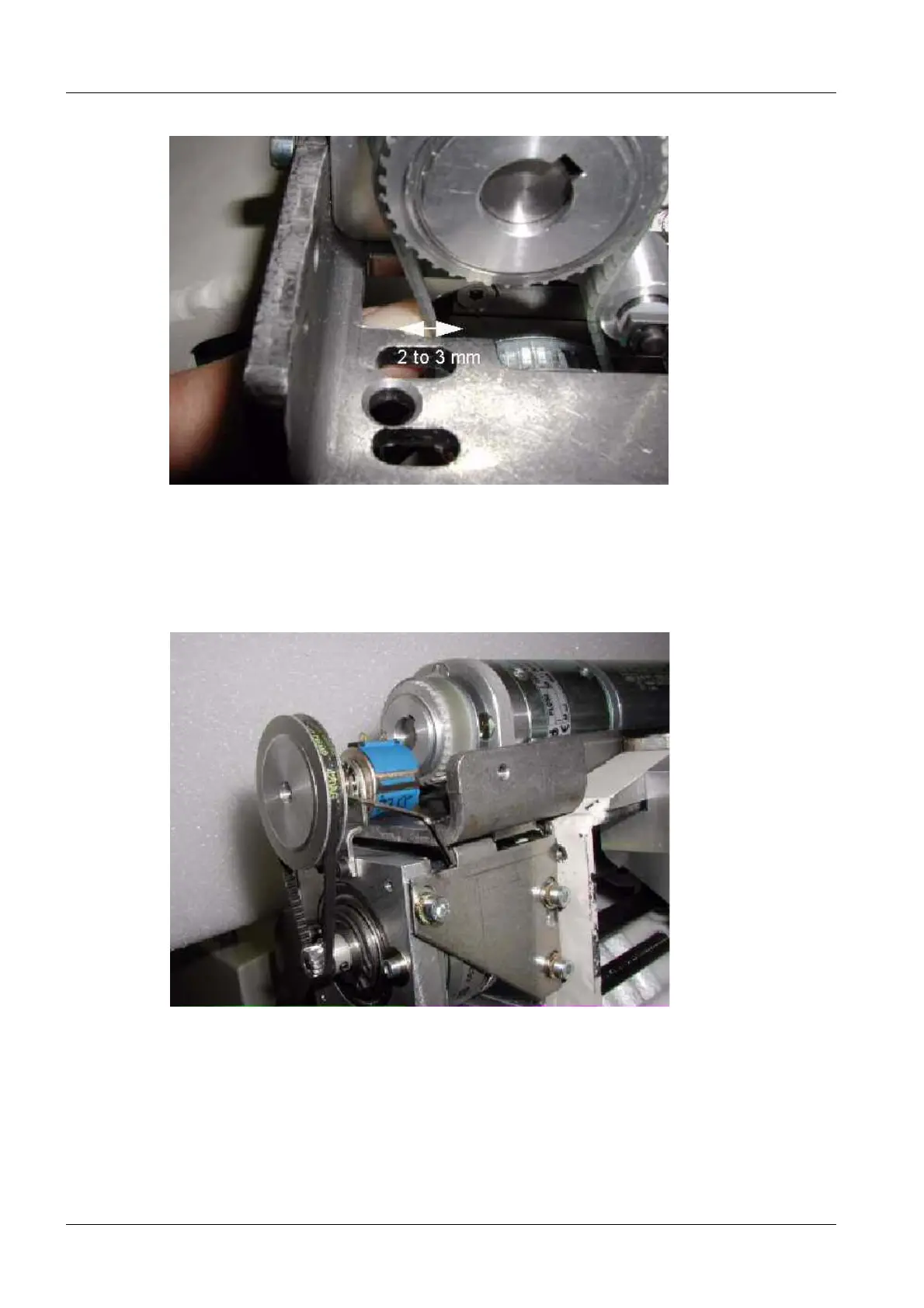

Fig. 33: Belt tensioning
• Loosen the belt tightener at the coupling unit (Fig. 32 / p. 35).
• Install the wide toothed belt on the motor (Fig. 32 / p. 35).
• Tighten the belt. On the opposite side of the belt tightener, it should be possible to press
the belt down approx. 2 - 3 mm with your thumb (Fig. 33 / p. 36).
Fig. 34: Belt pulley
