Siemens AG SPR2-320.814.02.01.02 ARCADIS Orbic
01.05 CS SD 24
3D Reconstruction Upgrade Part 2 37
Page 37 of 46
Medical Solutions

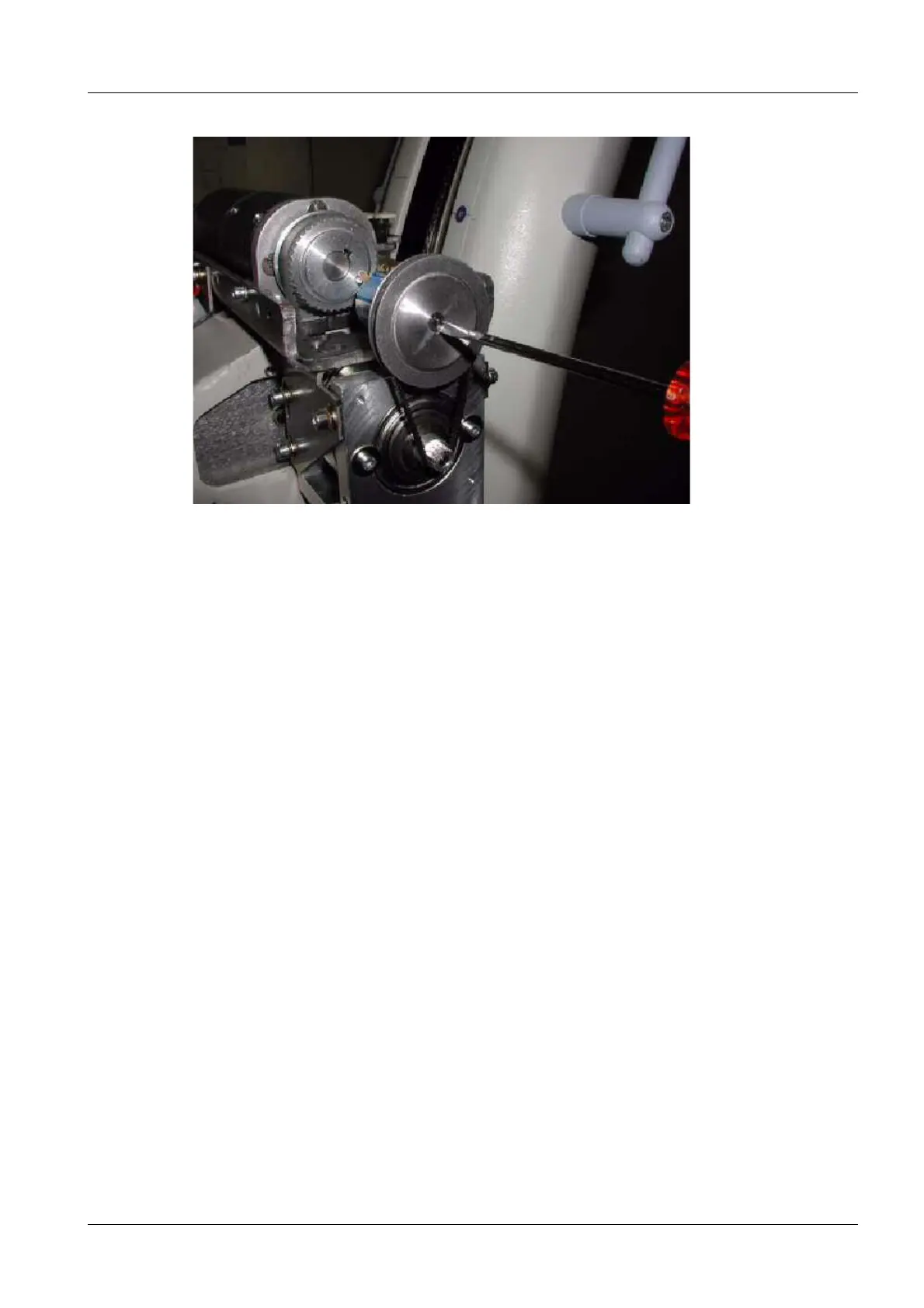

Fig. 35: Potentiometer
• Move the C-arm into the -95° degree orbital position (limit switch = side of image inten-
sifier).
• Loosen the Allen screw at the belt pulley (Fig. 34 / p. 36).
• Attach the outside toothed belt (see (Fig. 34 / p. 36).
• Use a screwdriver to turn the potentiometer counterclockwise into the end position
(Fig. 35 / p. 37).
• Once the potentiometer is in this position, turn it fully clockwise twice.
• Secure the belt pulley with the Allen screw (Fig. 34 / p. 36).
