Siemens ARCADIS Orbic Installation And Startup

28 3D Reconstruction Upgrade Part 1
ARCADIS Orbic SPR2-320.814.02.01.02 Siemens AG
01.05 CS SD 24
Page 28 of 46
Medical Solutions

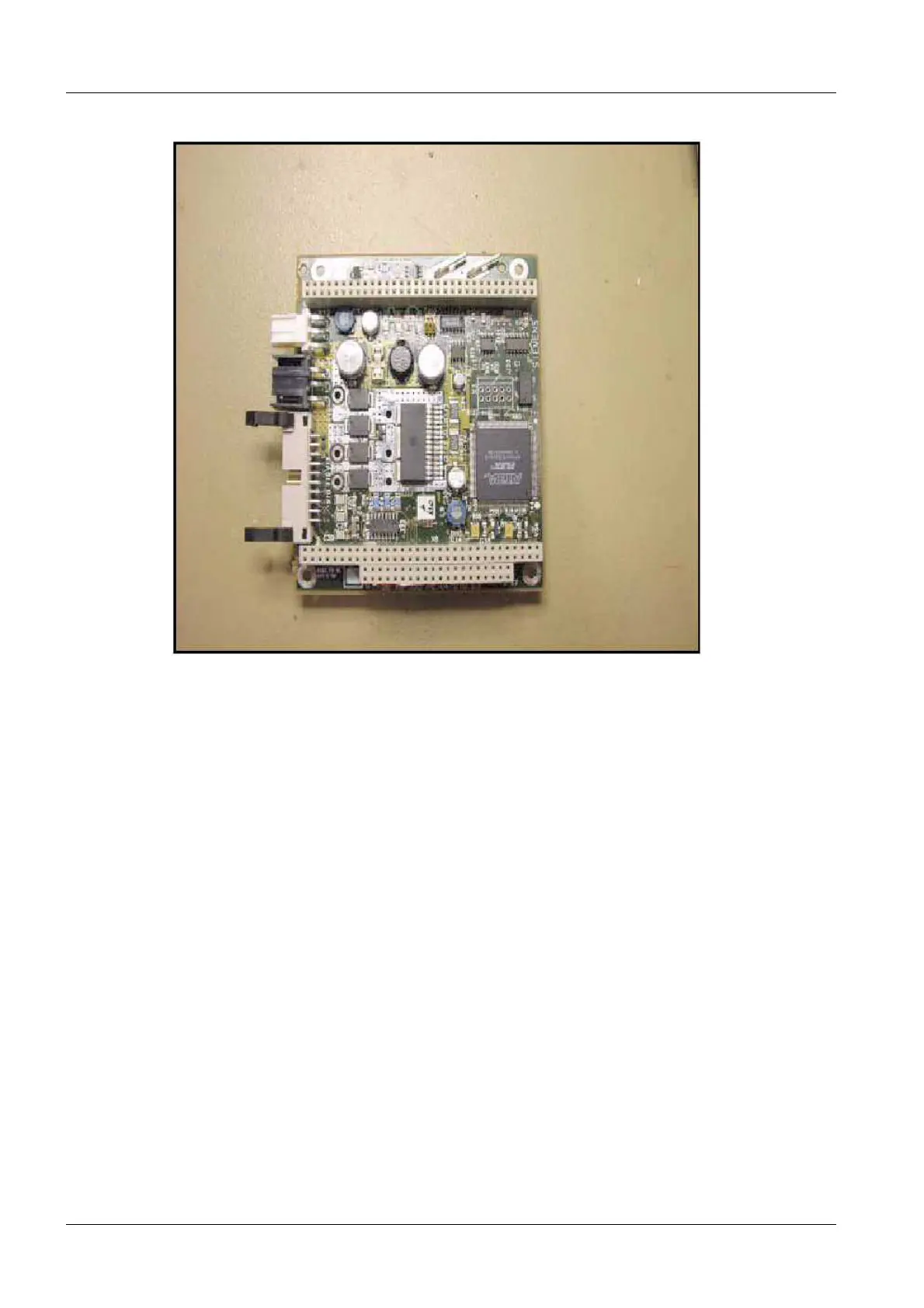

Fig. 19: PC board D10
Orbital drive cable set, item no. 71 39 970 0
• D10 is inserted into PC board D200 (Fig. 19 / p. 28).
• Proceed as follows with respect to the previously routed orbital drive cable set.
- Insert plug D10.X11into plug-in-location D10.X11 on PC board D10 .
- Insert plug D10.X10 into plug-in-location D10.X10 on PC board D10.
- Insert plug D200.X116 into plug-in-location D200.X116 on PC board D200.
- Insert plug D200.X221 into plug-in-location D200.x221 on PC board D200.
