Siemens AT18 - Page 23

Operating Manual - Elevator Door Operation AT18
23
1. Plug in plug A of the at ribbon cable into the plug-in connection D

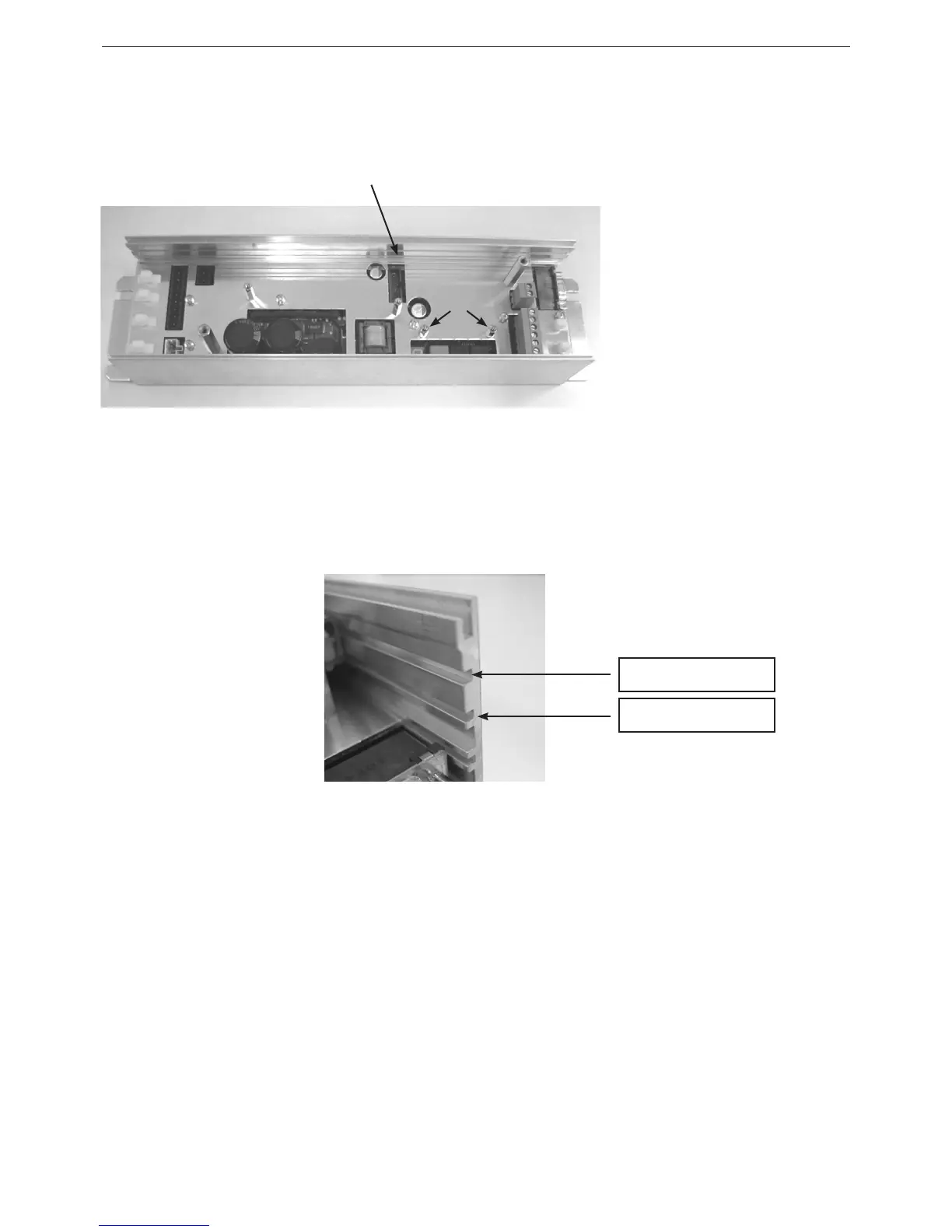

Photo 4
2. Insert the terminal module into the bottom groove of the housing prole (see photo 5) and set it
onto the two spacer bolts E (photo 4).
Photo 5
E
D
Relay module
Terminal module
