Operating Manual - Elevator Door Operation AT18
15.12.5 Oscilloscope function

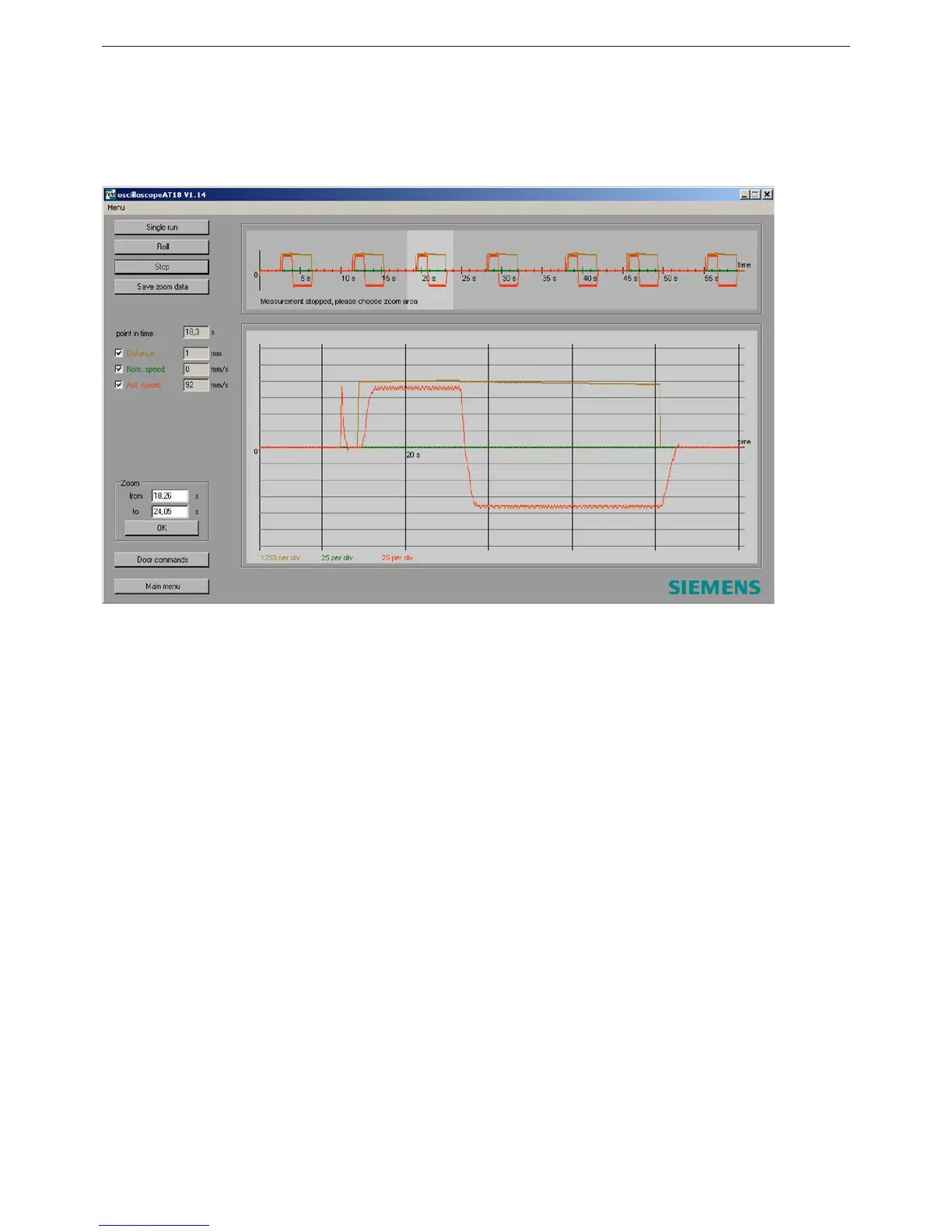

With the aid of the oscilloscope function its is possible to record the door speed and the distance
done in a time window of 60 seconds (single record) or continuously (permanent record).
Illustration 17
Via the “Movement instructions” button the elevator door can be moved correspondingly as at the
movement cycle editor.
