Operating Manual - Elevator Door Operation AT18
33
15.4.3 Wire conguration of the motor plug
1
8

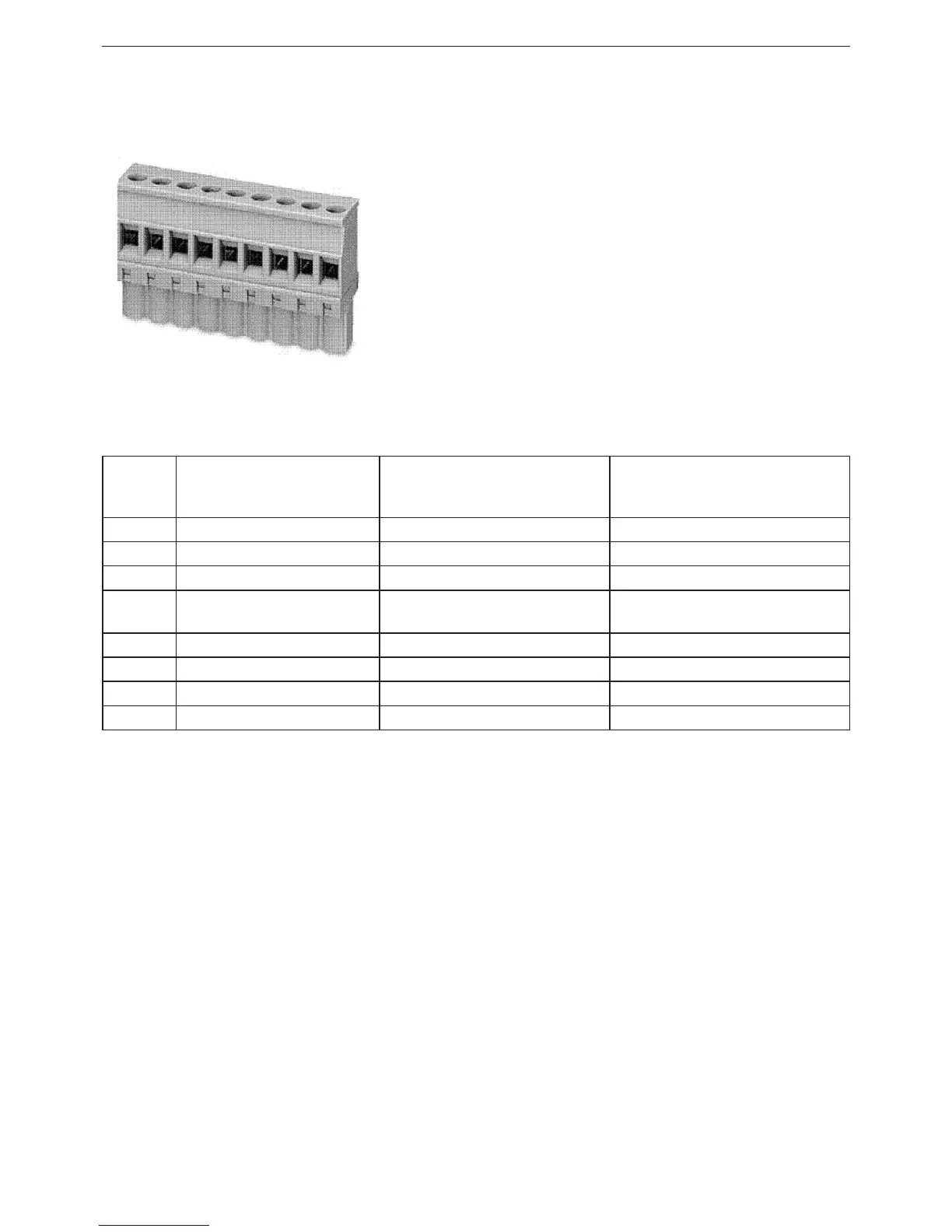

Illustration 5c: Motor plug
Terminal Signal Wire Colour Motor 3 (30V / 4A,
up to 180kg door weight)
Wire colour Motor
(24V / 1.8A up to 120 kg door
weight)
1 +5 V grey grey
2 Channel A yellow white
3 Channel B green yellow
4 Motor identication
(motor ID)
brown green
5 GND white brown
6 PR yellow-green is dropped
7 Motor+ black 2 brown
8 Motor- black 1 white
