7 Using the CP 443−1 Advanced with PROFINET CBA
B4A−48
CP 443-1 Advanced for Industrial Ethernet / Manual Part B4A
Release 01/2007
C79000-G8976-C193-06
Singleton Components
Remember that when you use the CP 443−1 Advanced in the componentization of
the S7−400 station, you create a singleton component.
Singleton components are PROFINET CBA components with separate storage
and handling of the device−specific data. The device−specific configuration data
and program data are located in the STEP 7 basic project of the PROFINET
component.
For more detailed information, refer to the documentation of SIMATIC iMap and
the basic help of STEP 7.
Representation in SIMATIC iMap

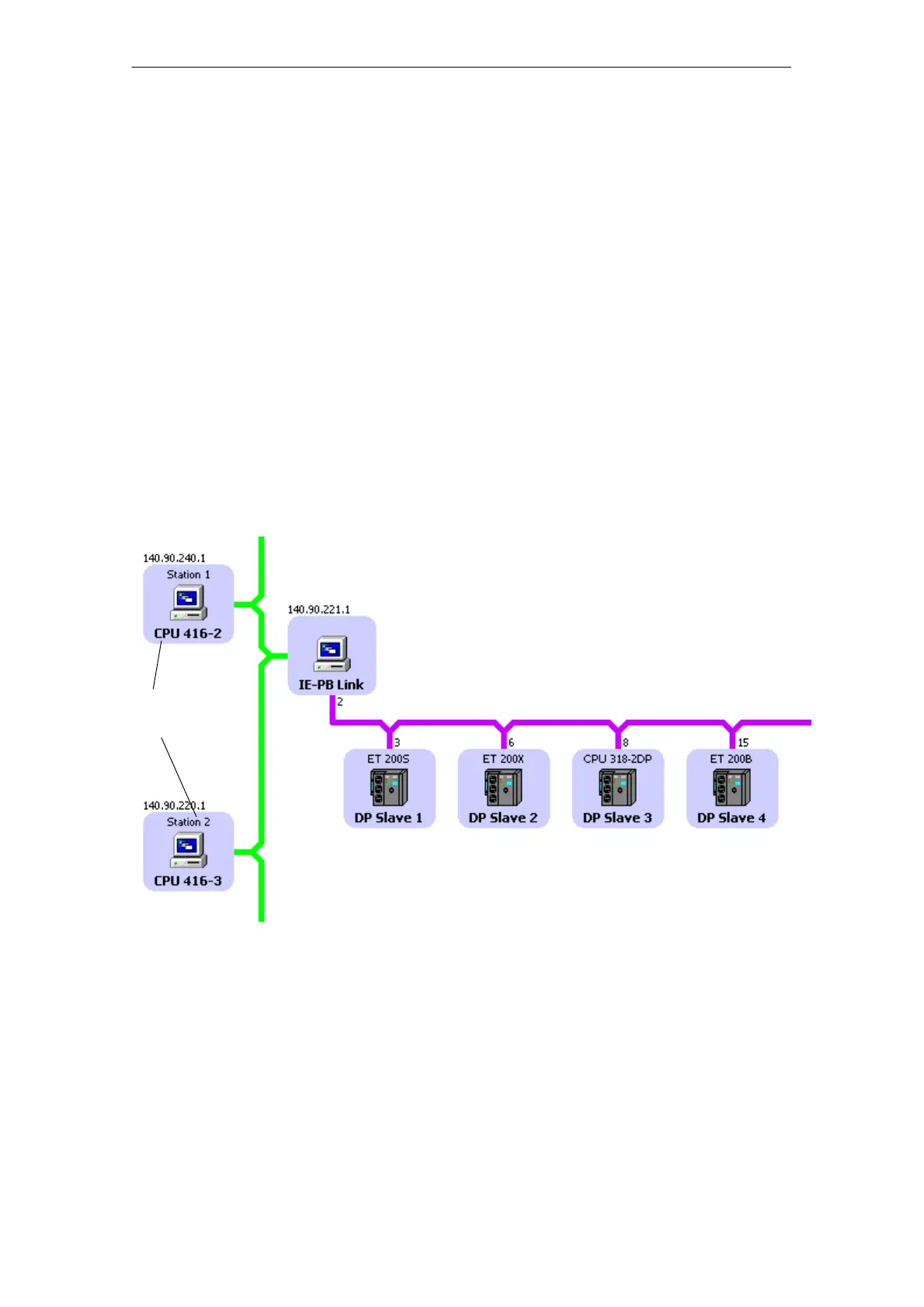

S Network View in SIMATIC iMap
The following graphic shows the network view of SIMATIC iMAP and illustrates
how a CP 443−1 Advanced in an S7−400 station establishes a connection
between DP slaves on PROFIBUS DP and the S7−400 station on Industrial
Ethernet over an IE/PB Link.
Ind. Ethernet
PROFIBUS DP
S7−400 stations with
CP 443−1 Advanced
