Siemens CP 443-1 User Manual

7 Using the CP 443−1 Advanced with PROFINET CBA
B4A−49
CP 443-1 Advanced for Industrial Ethernet / Manual Part B4A
Release 01/2007
C79000-G8976-C193-06

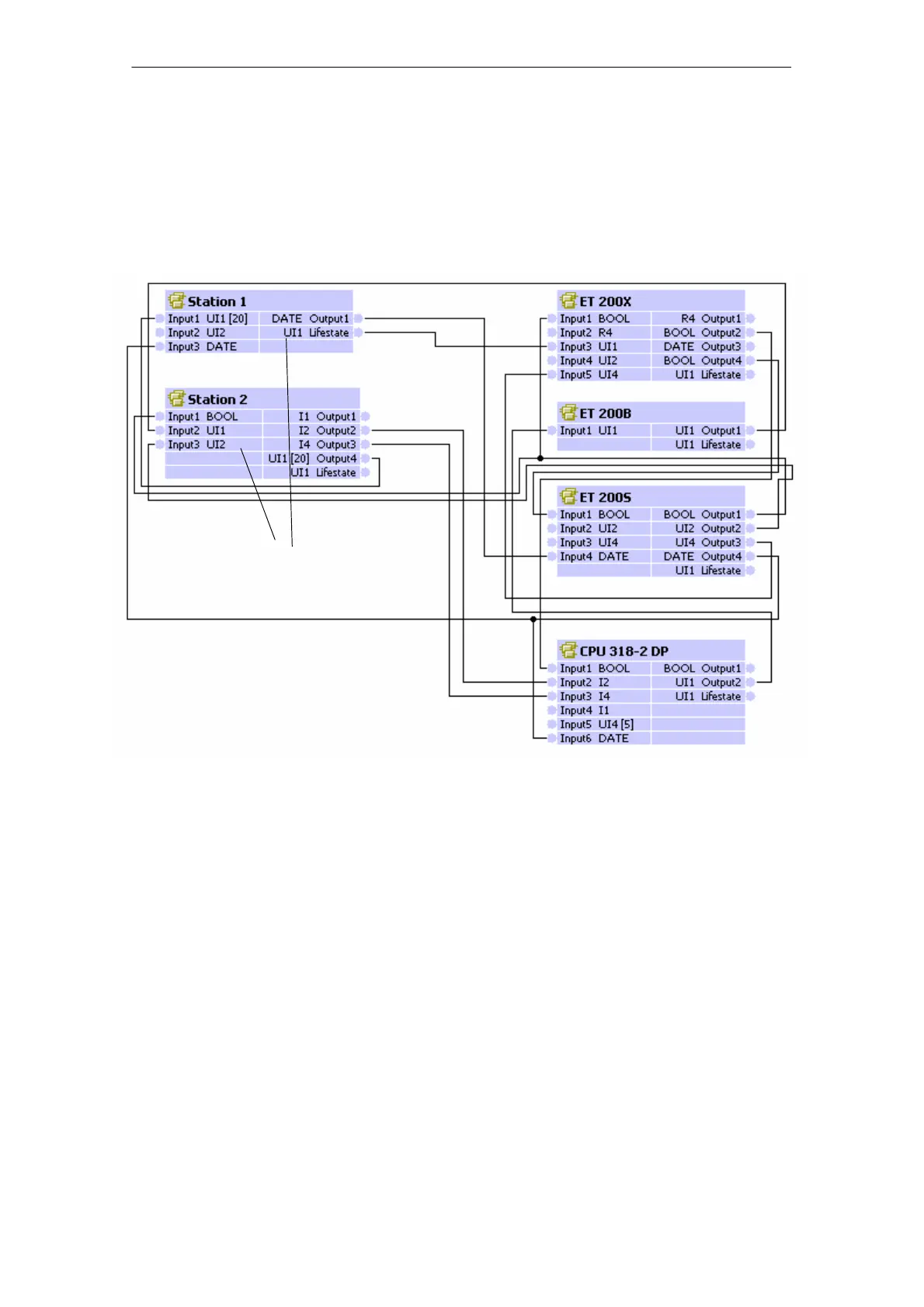

S Plant view in SIMATIC iMap
In the plant view, the interconnection of input and outputs over the
CP 443−1 Advanced becomes visible.
Here, you can only see the PROFINET CBA components with their
interconnections to the process inputs and process outputs.
S7−400 stations with
CP 443−1 Advanced
Assigning Addresses and Properties in SIMATIC iMap
You can modify addresses and properties for singleton components such as an
S7−400 station with CP 443−1 Advanced only in STEP 7.
Downloading Configuration Data
When you use the module with PROFINET CBA, downloading the configuration
data involves two steps:
