Cycle and reaction times
5.3 Response time
CPU 31xC and CPU 31x, Technical Data
5-14 Manual, 01/2006 Edition, A5E00105475-06
DP cycle times in the PROFIBUS DP network
If you have configured your PROFIBUS DP master system in STEP 7, STEP 7 calculates the
typical DP cycle time to be expected. You can then view the DP cycle time of your
configuration on the PG.

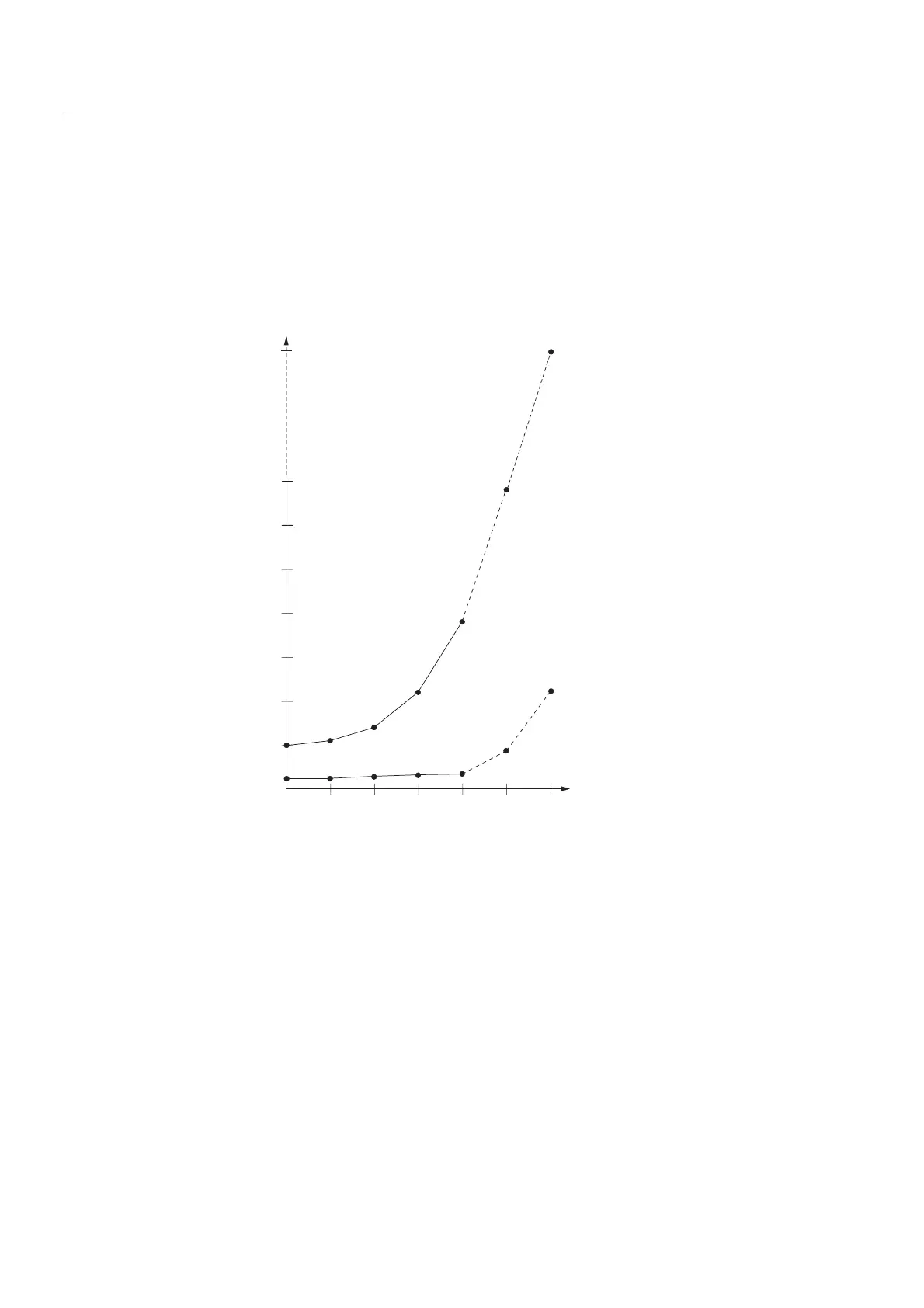

The figure below gives you an overview of the DP cycle time. In this example, let us assume
that the data of each DP slave has an average length of 4 bytes.
PV
PV
PV
PV
PV
PV
PV
PV

 




%XVUXQWLPH
7UDQVPLVVLRQUDWH0ELWV
7UDQVPLVVLRQUDWH0%LWV
1XPEHURI'3VODYHVPD[LPXP
QXPEHULVGHSHQGHQWRQ&38
0LQLPXP
VODYHLQWHUYDO
With multi-master operation on a PROFIBUS-DP network, you must make allowances for the
DP cycle time at each master. That is, you will have to calculate the times for each master
separately and then add up the results.

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
