Operating and display elements
2.2 Operating and display elements: CPU 31x
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
2-7
2.2.2 Operating and display elements: CPU 317-2 DP
Operating and display elements
1 2 3
4
5
6
7
6723
581
)5&(
'&9
6)
%)
%)
05(6
6723
581
00&
; ;

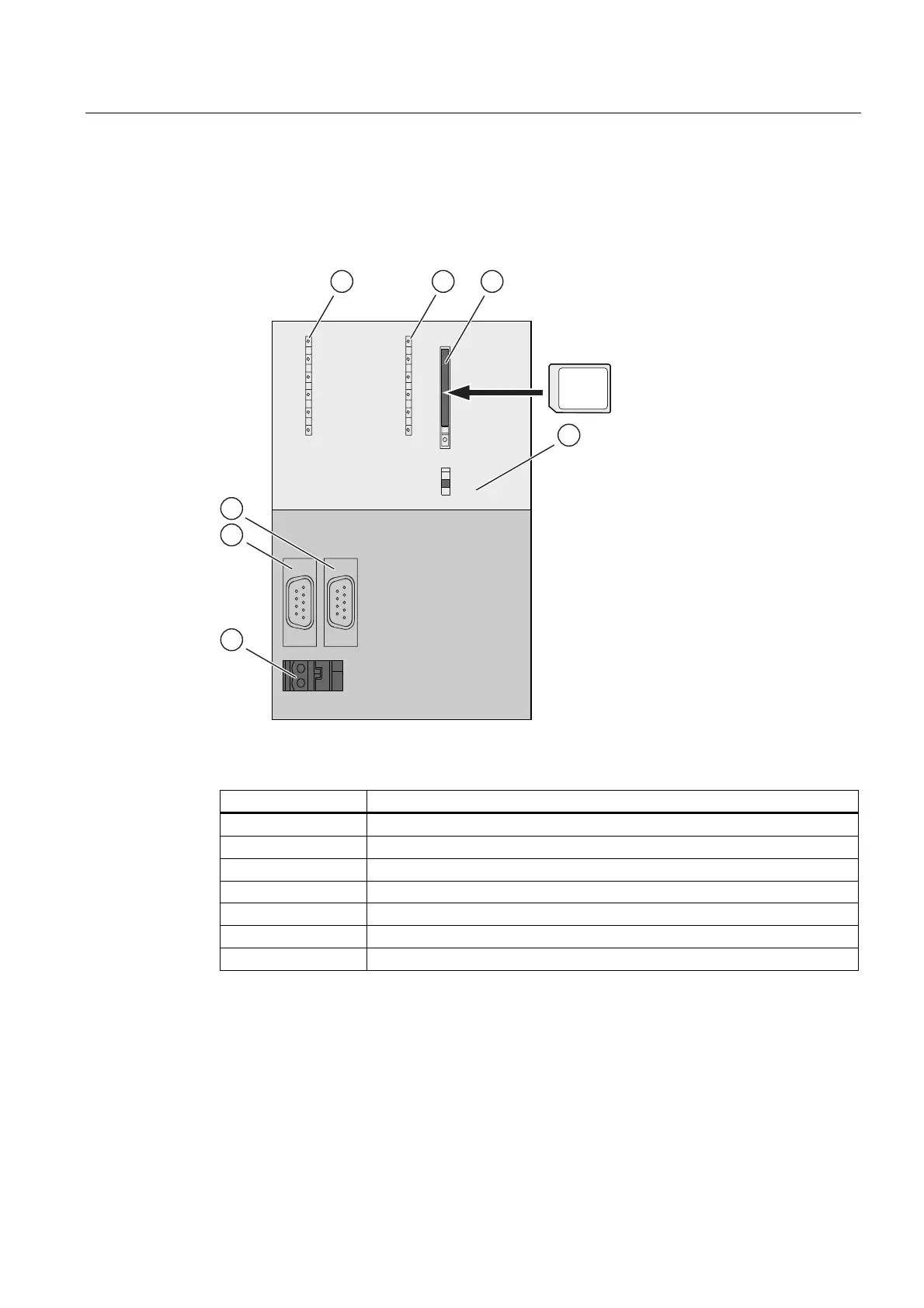

The figures show the following CPU elements
(1) Bus error indicators
(2) Status and error displays
(3) Slot for the SIMATIC Micro Memory Card (MMC) incl. the ejector
(4) Mode selector switch
(5) Power supply connection
(6) 1. Interface X1 (MPI/DP)
(7) 2. Interface X2 (DP)

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
