Siemens CPU 313C User Manual

Communication
3.2 Communication services
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
3-11
3.2.7 Routing
Properties
STEP 7 V5.1 + SP4 or higher allows you to access your S7 stations on all subnets with your
PG/PC, for example, to
• download user programs
• download a hardware configuration, or
• perform debugging and diagnostic functions.
Note
If you use your CPU as I-slave, the routing function is only possible when the
DP interface is switched to active IN STEP 7, set the Test, Commission Routing check
box on the properties dialog of the DP interface. For detailed information, refer to the
Programming with STEP 7 manual, or directly to the STEP 7 Online Help

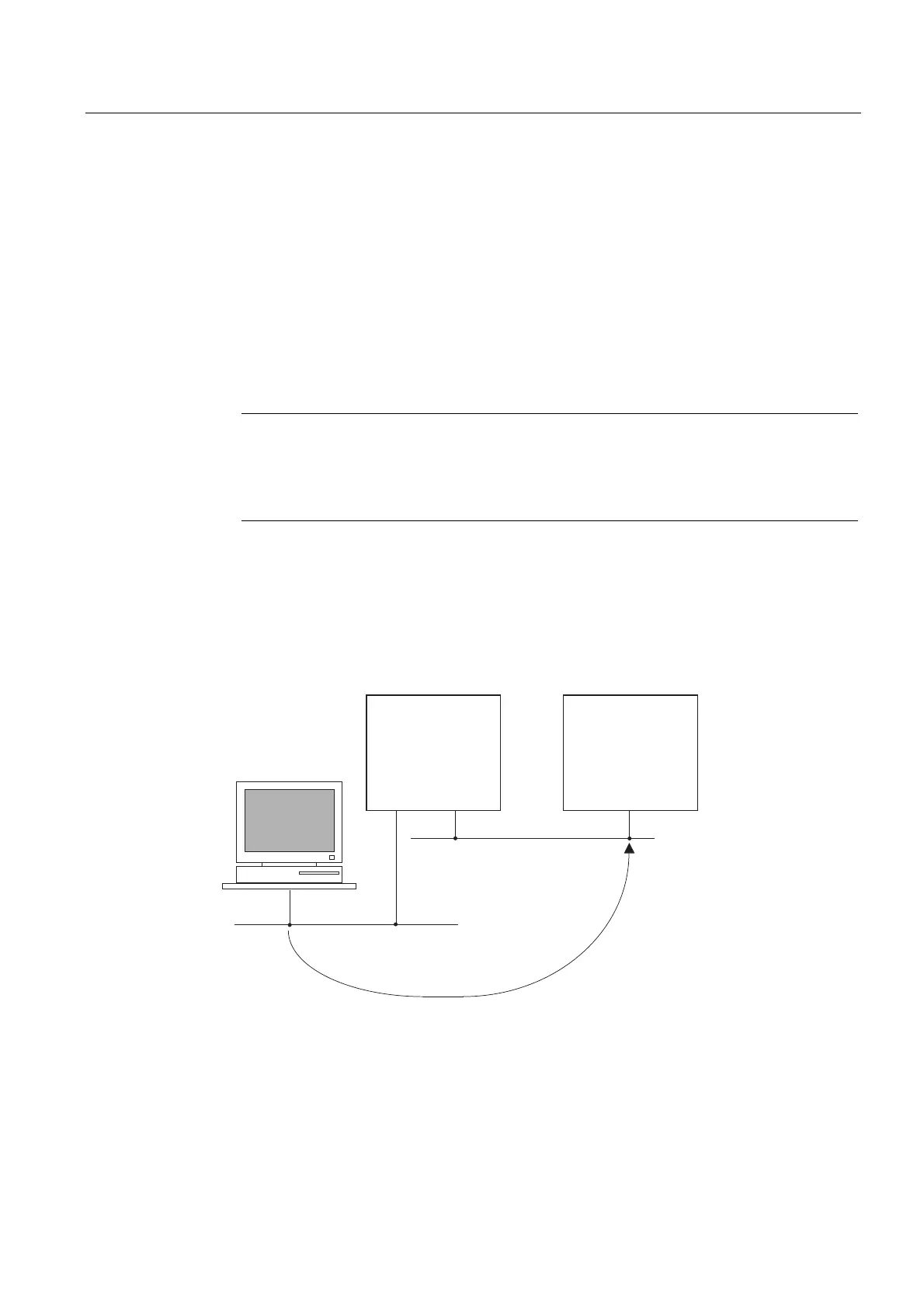

Routing network nodes: MPI - DP
Gateways between subnets are routed in a SIMATIC station that is equipped with interfaces
to the respective subnets. The figure below shows CPU 1 (DP master) acting as router for
subnets 1 and 2.
3*
6 6
6XEQHWHJ352),%86'3
6XEQHWHJ03,
&38'3PDVWHU &38'3VODYH

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
