Siemens CPU 313C User Manual

Technical data of CPU 31xC
6.6 Technical data of the integrated I/O
CPU 31xC and CPU 31x, Technical Data
Manual, 01/2006 Edition, A5E00105475-06
6-33

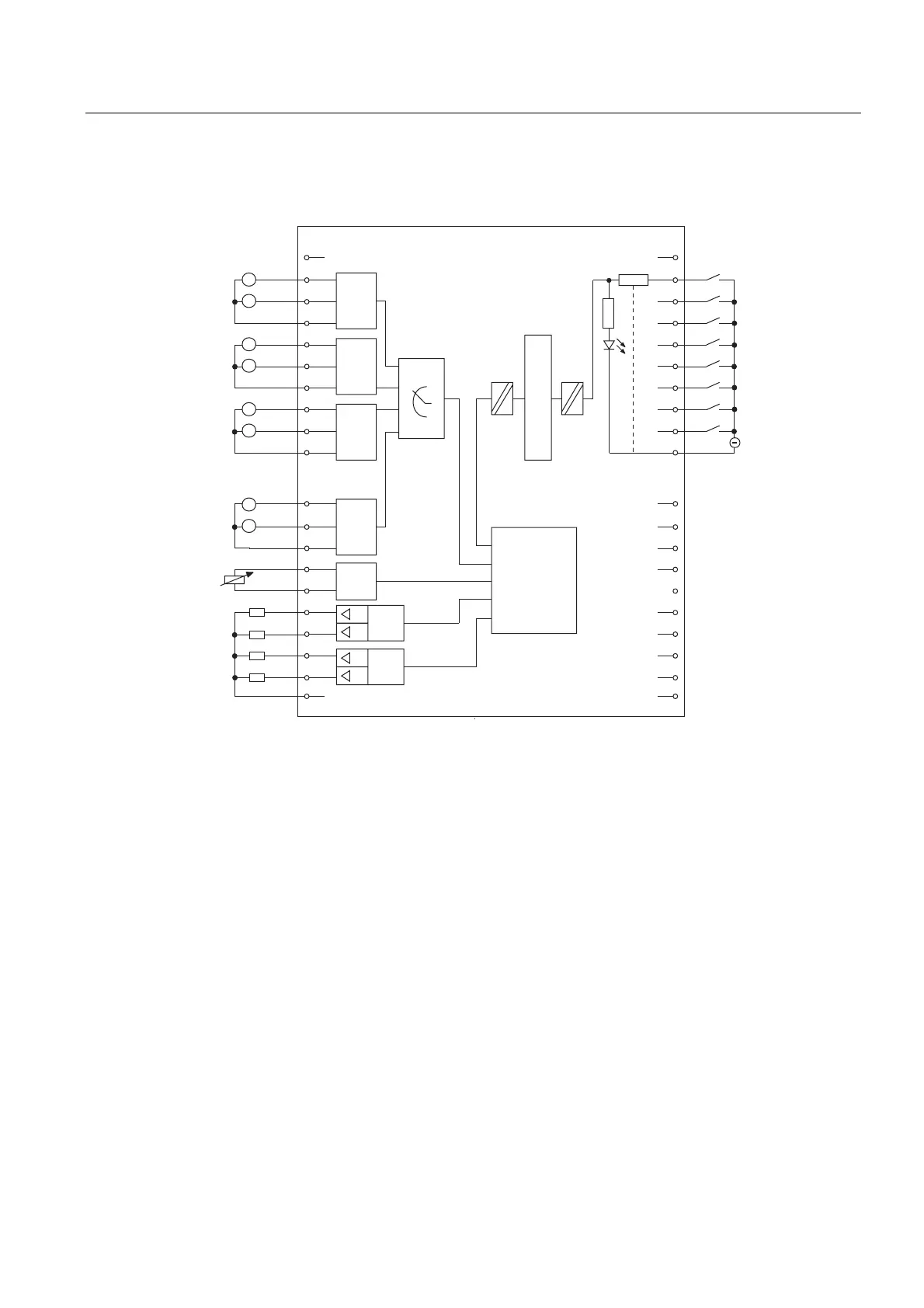

Block diagram of integrated digital/analog I/O of CPUs 313C/314C-2
&38LQWHUIDFH
&RQWUROOHU








































$,
0
$,
$,$ ',
$,
$,
$,
$
$
$,
&+
&+
&+
&+
&+
&+
37
8
8
,
,
$,
$,
$
9
$
9
$
9
$,
$
9
$,
5
$2
$2
0
$1$
9
$
9
$
Simultaneous usage of technological functions and standard I/O
Technological functions and standard I/O can be used simultaneously with appropriate
hardware. For example, you can use all digital inputs not used for counting functions as
standard DI.
Read access to inputs used by technological functions is possible. Write access to outputs
used by technological functions is not possible.
See also
CPU 312C (Page 6-3)
CPU 313C (Page 6-8)
CPU 313C-2 PtP and CPU 313C-2 DP (Page 6-14)
CPU 314C-2 PtP and CPU 314C-2 DP (Page 6-21)

Siemens CPU 313C Specifications

General

MPI Interface	Yes
Number of digital inputs	24
Number of digital outputs	16
Number of analog inputs	4
Number of analog outputs	2
Supply voltage	24 V DC
High-speed counters	Yes
Bit Operations Execution Time	0.1 µs
Word Operations Execution Time	0.2 µs
Power Consumption	5 W
Dimensions (W x H x D)	40 x 125 x 130 mm
Operating Temperature	0 to 60 °C
Communication Interfaces	MPI
Programming Languages	LAD, FBD, STL
Product type designation	CPU 313C
Weight	490 g
