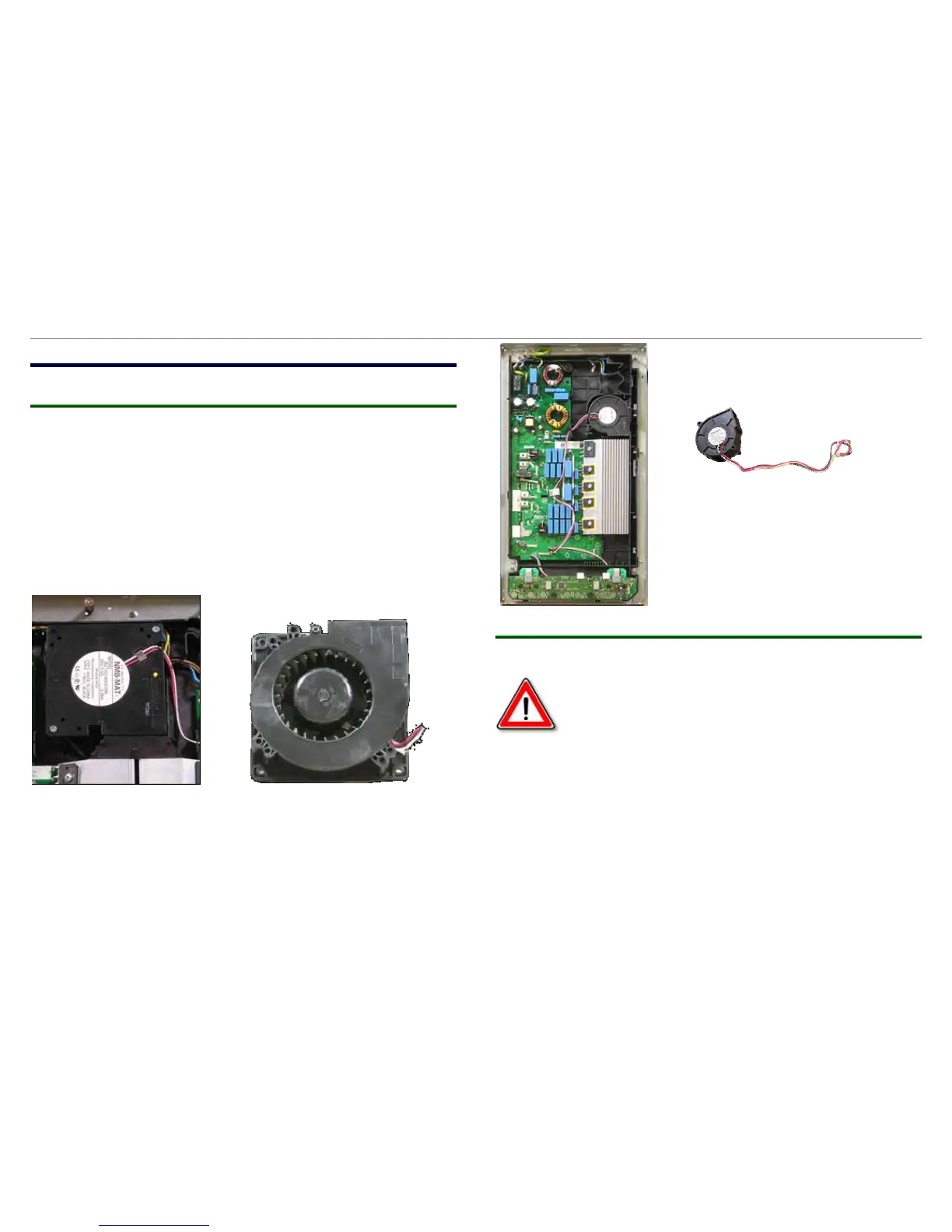

3.3 Fan
3.3.1 Characteristics and assembly
The fan used operates on direct current (without dynamo brushes)
and contains electronic components.
It is connected to the ELIN plate by means of a 3-wire connection with
some of the ends soldered to the fan’s circuit board
+24V
GND = earth
TACHO = tachograph
It is attached by means of clips (dominos and 2I). In other models it is
attached to a bracket, which is screwed into place.
1.1.2 Function
To cool the electronic components.
Warning!
Between the content of the housing and the entrance of the fan there
should be a gap of at least 2 cm.
Do not keep small objects and papers in the box, since these could be
absorbed by the fan and reduce the cooling effect, or damage the fan.
