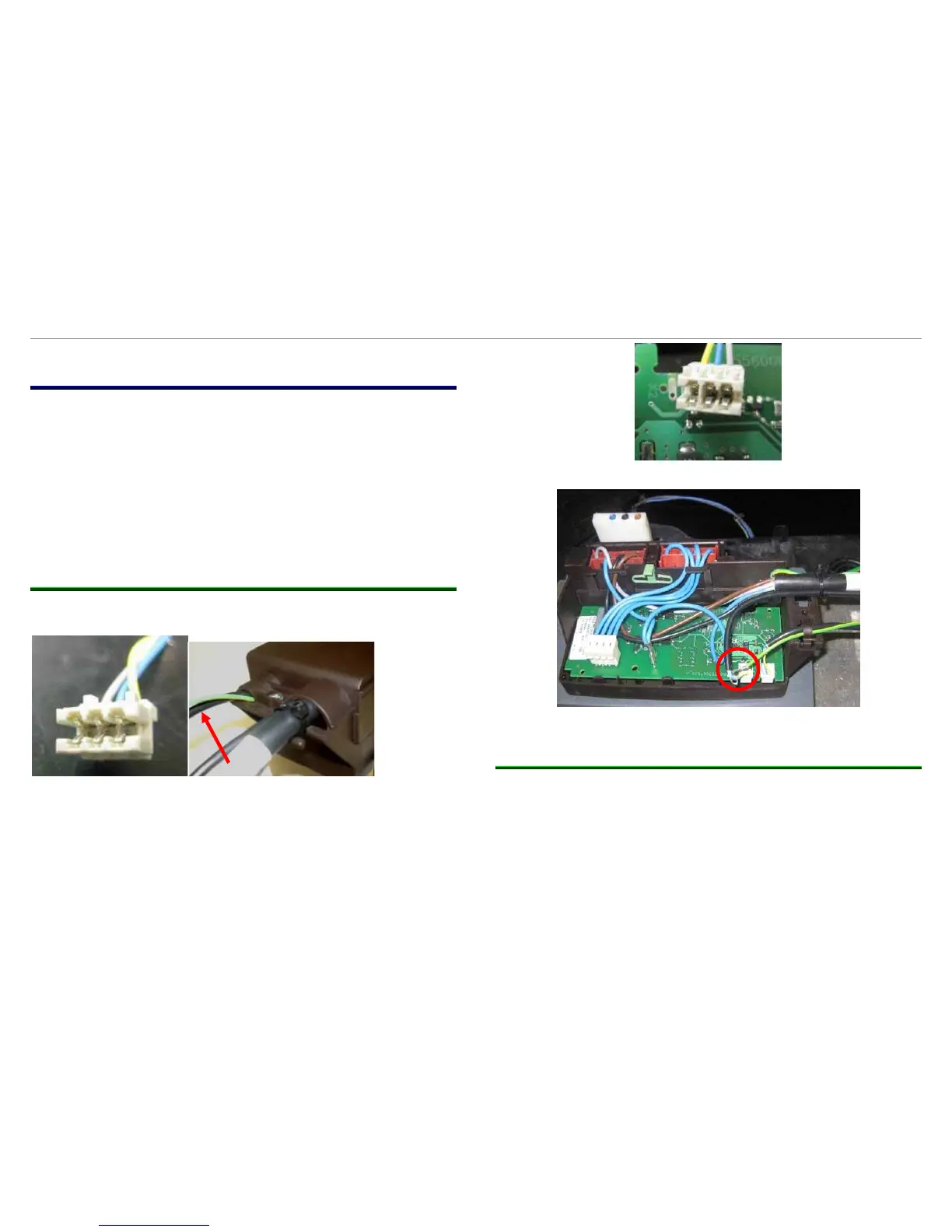

5.19 Check polybox connections
The procedure is as follows:
1) Check that the cable and connector that goes from the Polybox
box to the oven is connected and in the correct position.
2) Check that the cable and connector that goes from the Polybox
box to the hob is connected
If all of this is good connected, open polybox box
3) Check that both connectors (oven-polybox and hob-polybox)
are good connected in the wake up module.
5.19.1 Oven connector
It should be verified that the connector that comes out of the box and
goes in the oven is not polarized.
The polarized connector is connected in the wake up module.
5.19.2 Hob connector
Check that the cable and connector that goes from the Polybox box to
the hob is connected. See electrical diagram
