3 COMPONENTS AND FUNCTION
3.1 Electronic Induction (ELIN)
There are two types of elin (electronic induction).
One with its own power supply (“left or main elin”)
Another one without its own power supply (“right or secondary
elin”), which is powered by the main elin.
They are attached to the elin bracket with clips, plus a couple of
screws.
They communicate with the TouchControl through the LIN connector.
The TouchControl sends power level orders for each burner and the
elin returns the state of the burner (pan recognition, error detection,
etc.)
Depending on the type of model there are:
Domino 1 main elin
2I 60 cm 1 main elin
4I 60cm 1 main elin / 1 secondary elin
4I 70 cm 1 main elin / 1 secondary elin
4I 80cm 1 main elin / 1 secondary elin
3I 1 main elin / 1 secondary elin
5I 90cm 2 main elin / 1 secondary elin

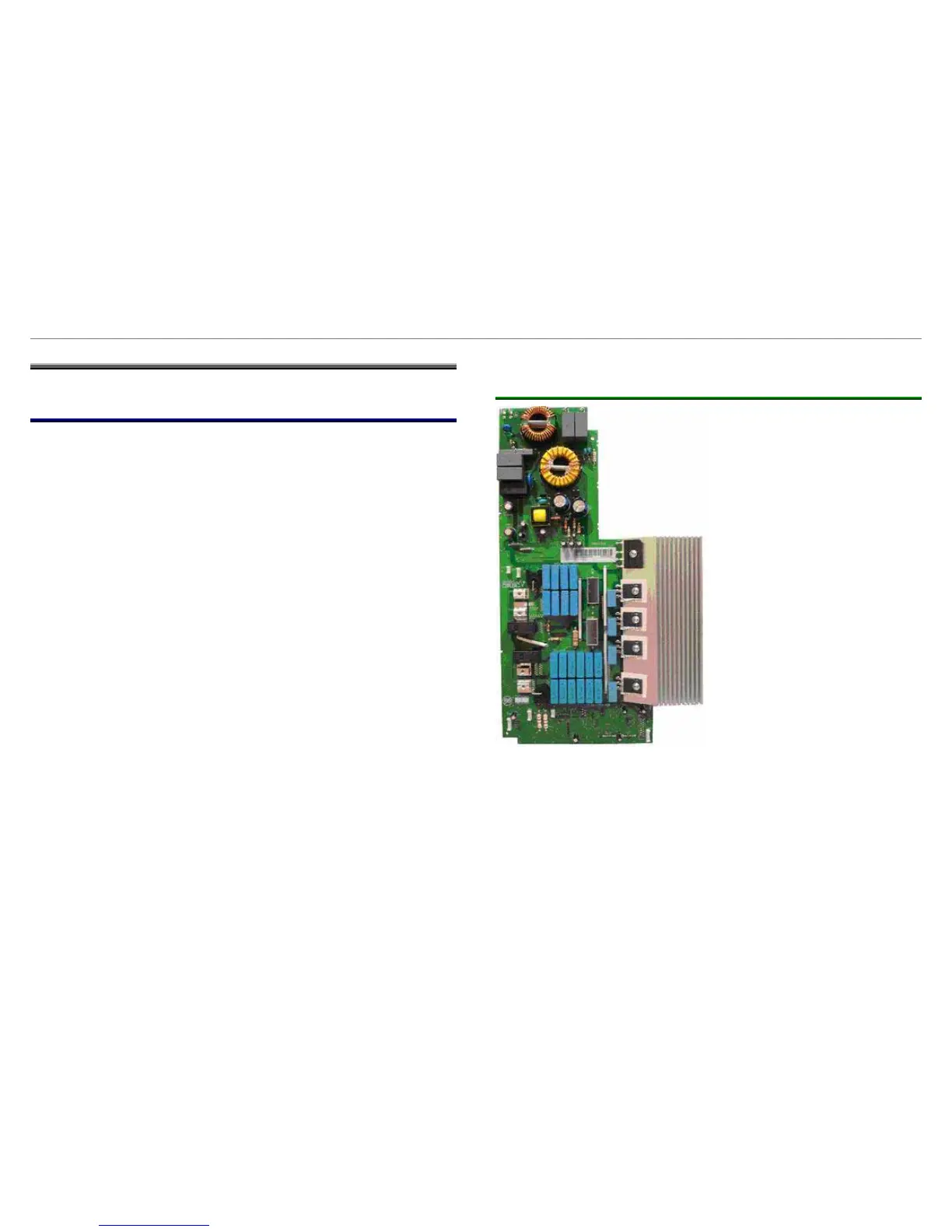

3.1.1 ELIN with own power supply (“left Elin”)
