206_58300000141095_ara_en_k.doc – 04.10.a Seite 46 von 113

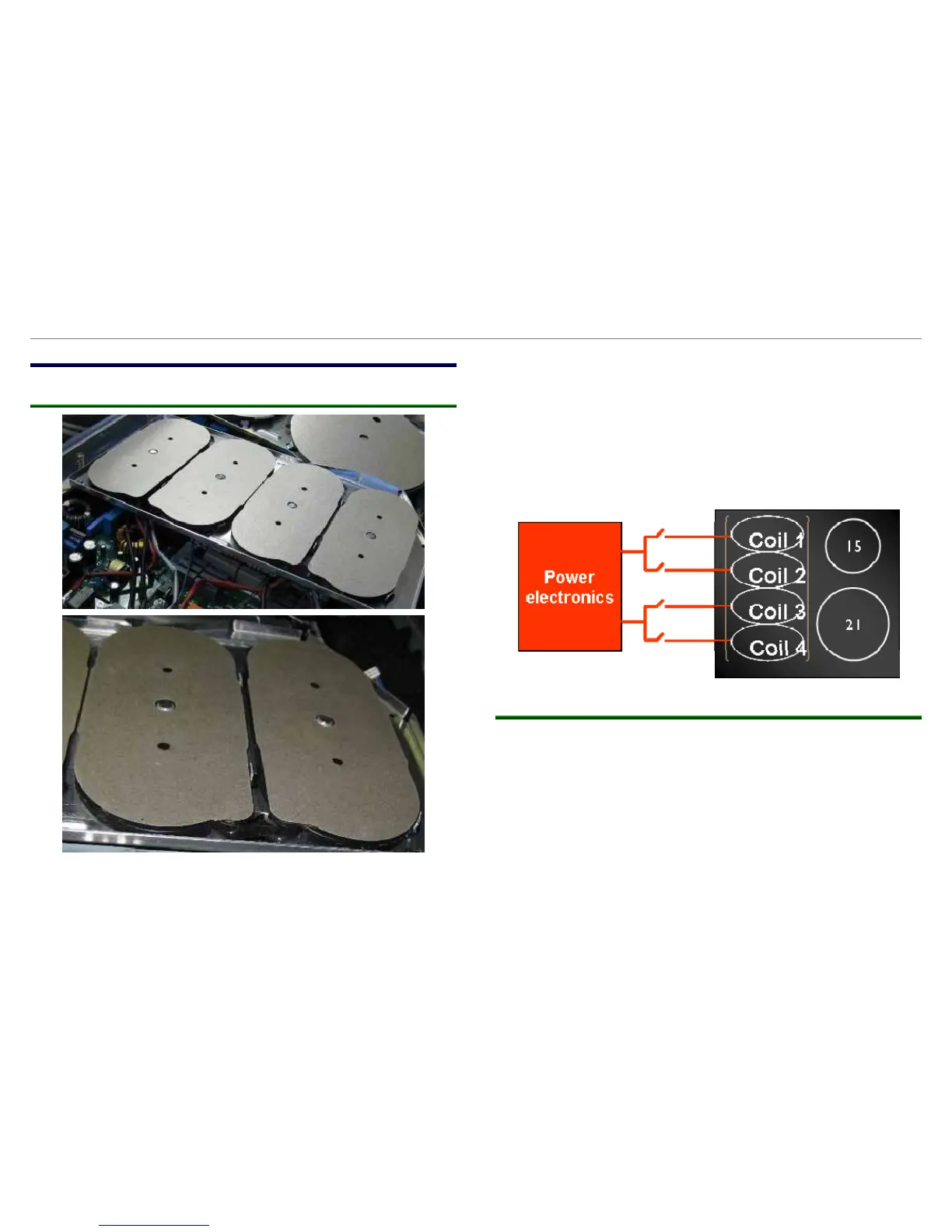

3.13 Oval inductors for combisurface or flexible zone
3.13.1 Oval inductors
.
The Combisurface or flexible zone is composed by 4 oval inductors
(coils) with 2 groups of 2 oval inductors controlled independently
The Combisurface can be used as :
• Fleximode: a unique surface, one power level. Only the
covered coils work
• Standardmode : two surfaces, two power levels. Only the
covered coils work
3.13.2 Types of oval inductors
The inductor´s set is compound of :
• Two oval inductors , placed in position 1 and 3, with a red
cable.
• Two oval inductors , placed in position 2 and 4, with a grey
cable.
In order to make easier the montage, it must be taken into account the
especial form at the corner.
