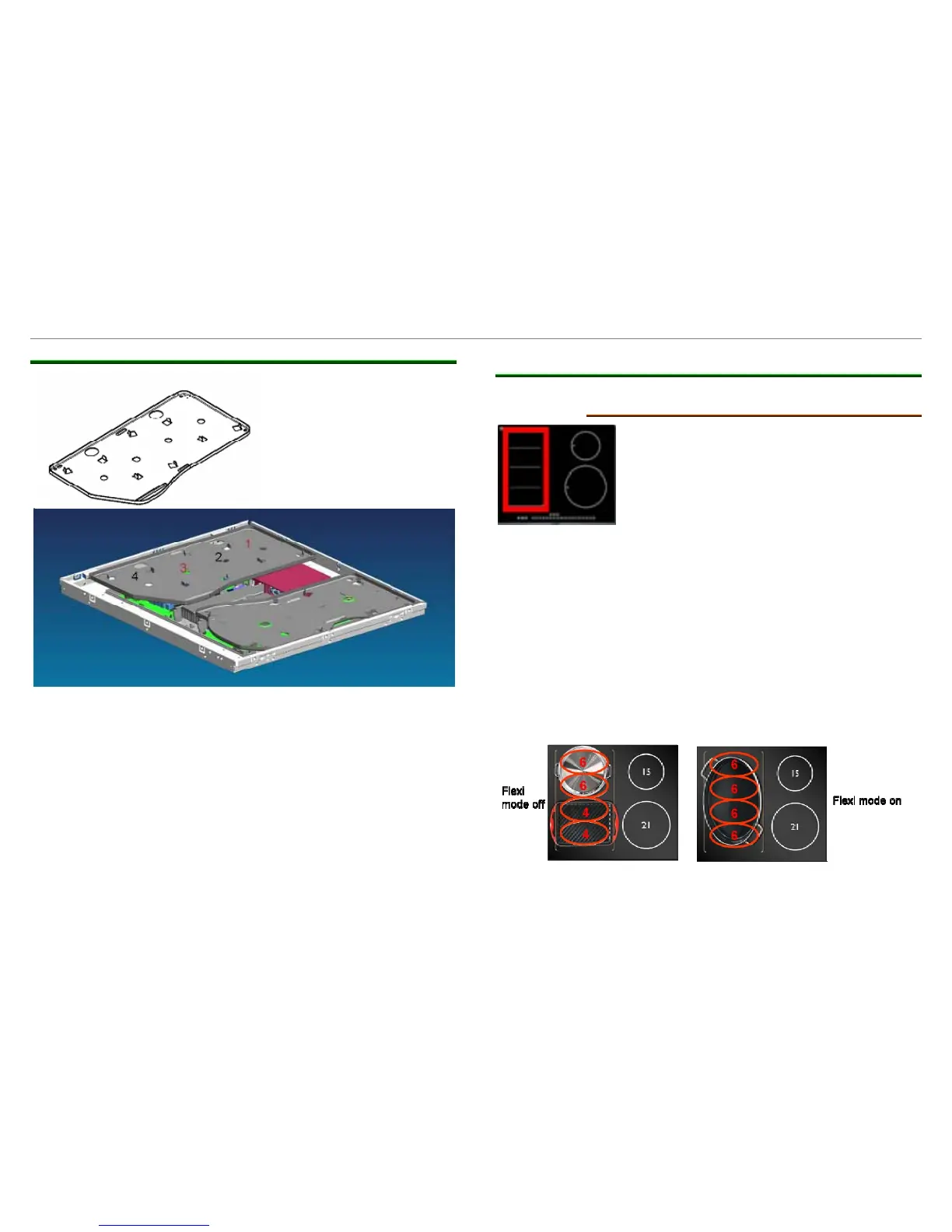

3.13.3 Oval inductors support
The aluminium base for oval inductors is designed with:
• Clips for fixing the position of the oval inductor
• 4 holes placed in the middle for NTCs connections
• 2 holes placed on the left side for inductor connections.
We must take into account that these inductors have a fix position
above the aluminium base. It must be checked, that the inductors
don´t move.
3.13.4 New control concept
3.13.4.1 Flexible Mode
• What is Flexi mode? It is the activation of the whole surface
marked with red rectangle. After, it is made a search, in order to
know where is the pot and activate only the necessary coil.
• If flexi mode is activated, there is the same power level for all
coils/zones/cookware!
• If flexi mode is not activated, it can be set two independent
power levels,
1 power level setting for coil 1 and 2
and other power level setting for coil 3 and 4.
The number from the oval in red, is the selected power in the zone
