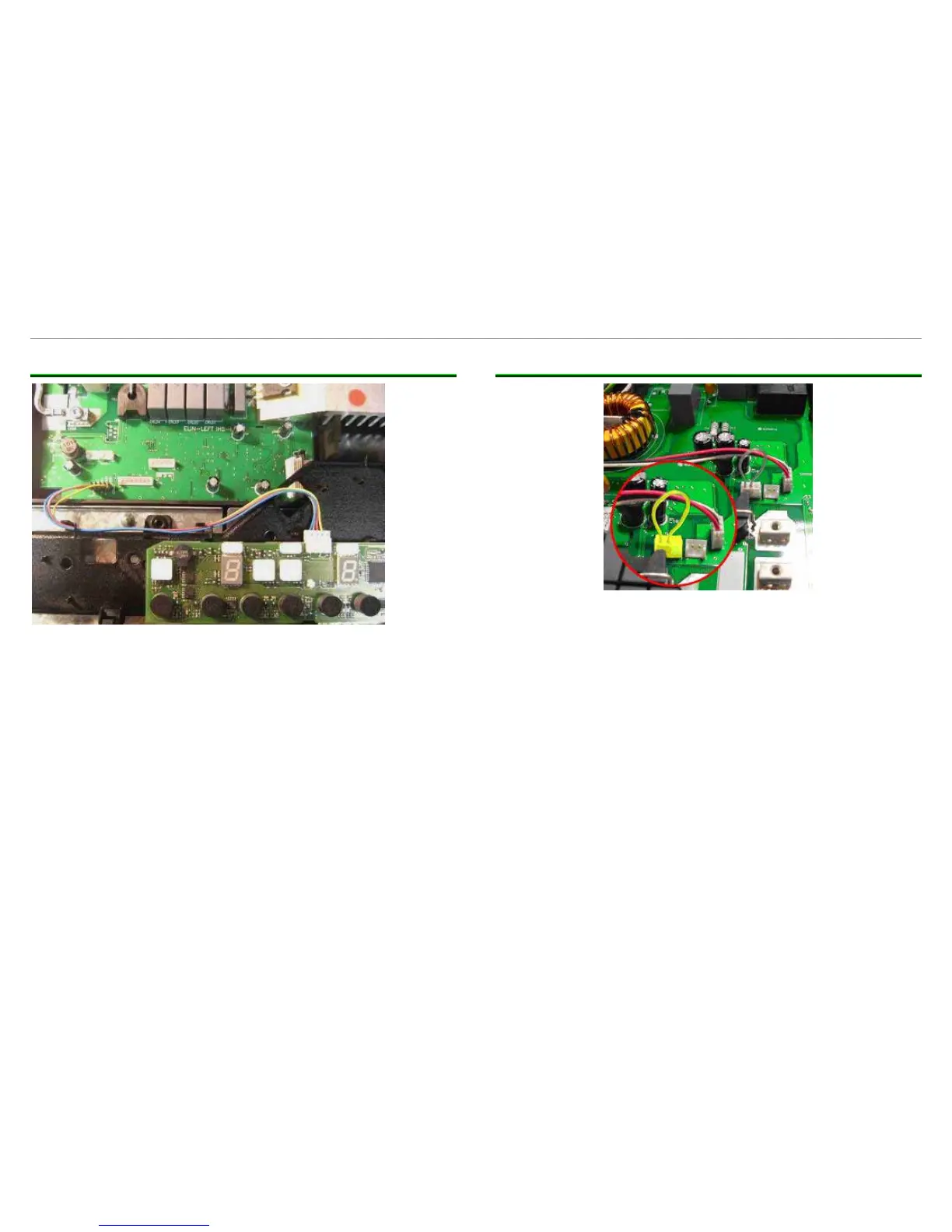

3.10.2 Touch Control feed connection
The 4-wire connector between the ELIN and Touch Control is the one
which feeds Touch Control.
3.10.3 Jumper connector for 15 cm frying sensor
In order for the frying sensor function of this 15 cm inductor to work it
is necessary to connect this jumper; if not, the frying sensor function is
not activated.
For the rest of the inductors with frying it is not necessary, because we
connect the 3-way NTC, which controls the frying and activates the
function.
