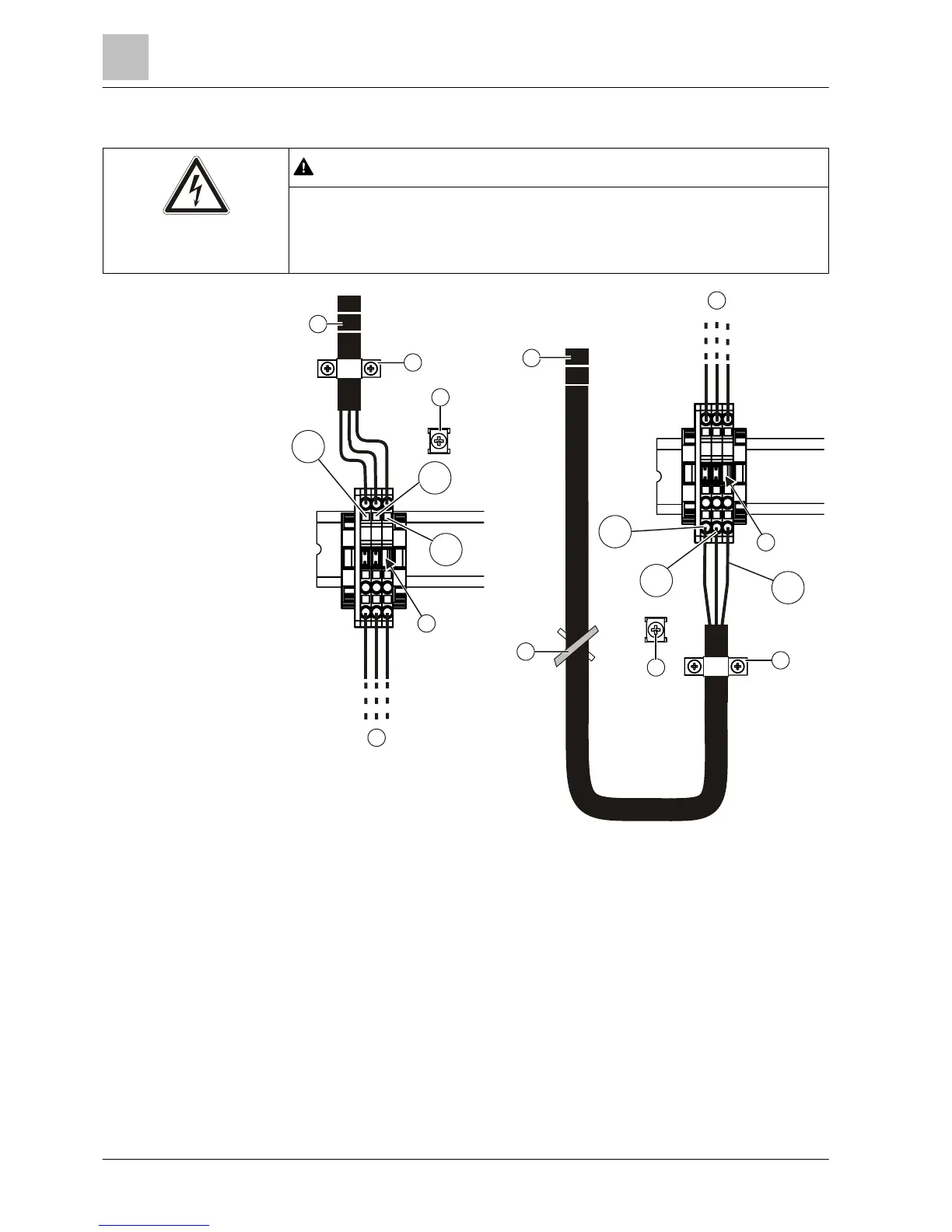

Figure 5: Mains connection for Standard and Comfort housings
1
Mains cable (supplied from above), 3 x 1.5 mm
2
e.g. NYM cable type
6 Cable tie
2 Strain relief clamp PE Protective conductor (terminal on the left)
3 Ground on the rear panel N Neutral conductor (terminal in the middle)
4 Disconnect terminal L1
External conductor (terminal on the right, with
mains disconnector)
5 Primary cabling for power supply
1. Lay the mains cable (1) along the left side of the housing.
2. Insulate the mains cable as needed and connect it to the power supply
terminals (PE, L1, N). Use cable end sleeves for wires.
3. Fixate the cable with the strain relief clamp (2).
4. Secure the cable with cable ties (6).
L1
N
PE
4
1
6
3
