5.3.5 Configurable inputs/outputs and supply voltage Vsys
The assignment of connection terminals on periphery board (2-loop) of FC722 and
periphery board (4-loop) of FC724 is not identical.

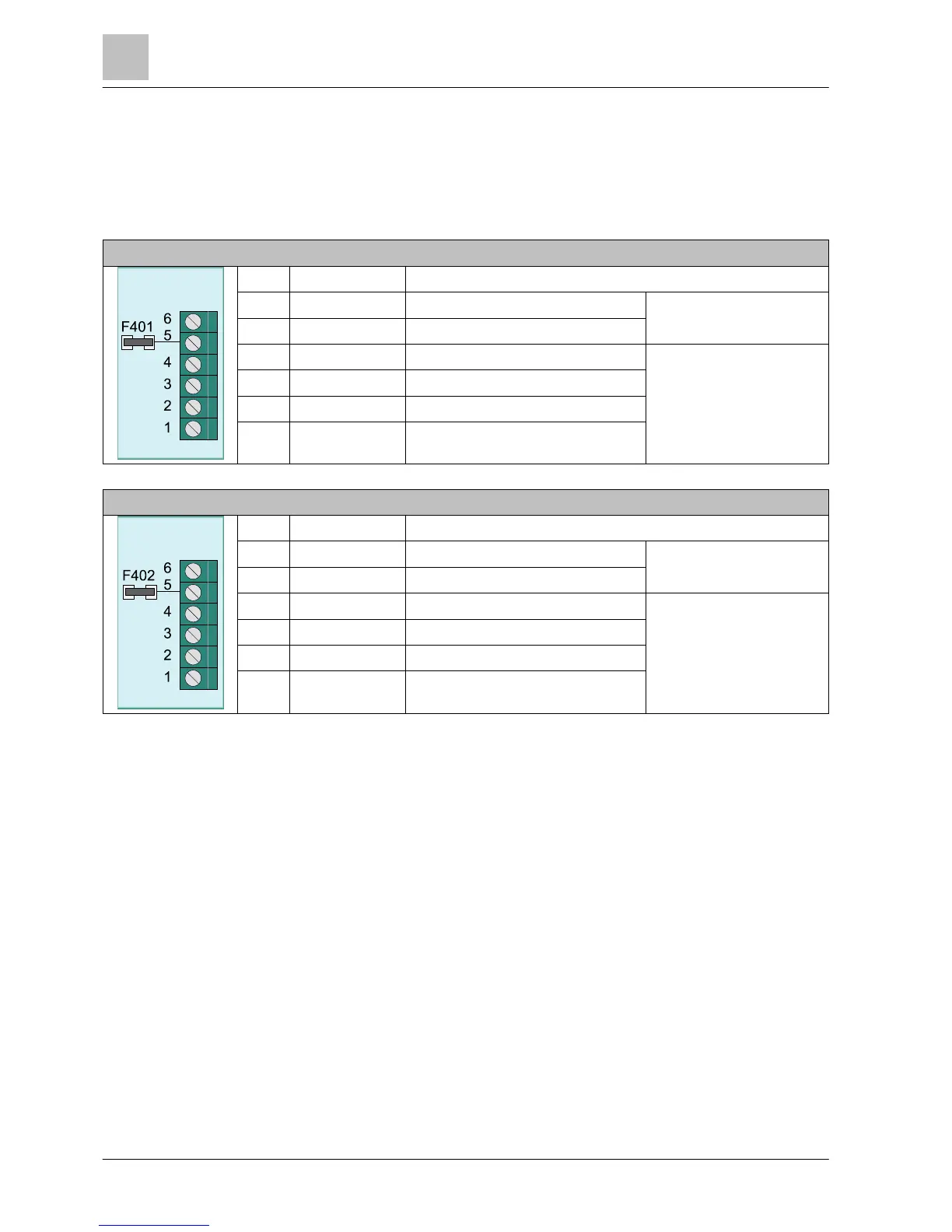

Assignment on FC722 periphery board (2-loop)
Permitted cable cross-section: 0.2 to 1.5 mm
2
.
FC722
X8 Designation Description
6 GND_01 (–) supply output 1
DC 20 V – DC 30 V/1 A
5 VSYS_01 (+) supply output 1
4 I/O4 Configurable input/output 4
Individual current max.
300 mA
total current max. 1 A
3 I/O3 Configurable input/output 3
2 I/O2 Configurable input/output 2
1 I/O1 Configurable input/output 1
FC722
X9 Designation Description
6 GND_02 (–) supply output 2 DC 20 V – DC 30 V/ 1 A
5 VSYS_02 (+) supply output 2
4 I/O8 Configurable input/output 8
Individual current max.
300 mA
total current max. 1 A
3 I/O7 Configurable input/output 7
2 I/O6 Configurable input/output 6
1 I/O5 Configurable input/output 5
Each of these freely configurable inputs/outputs can either be configured as an
input or output. The function and external circuit needed depend on the mode of
operation selected.
