5.3.3 Monitored outputs for alarm and fault (FT activation)

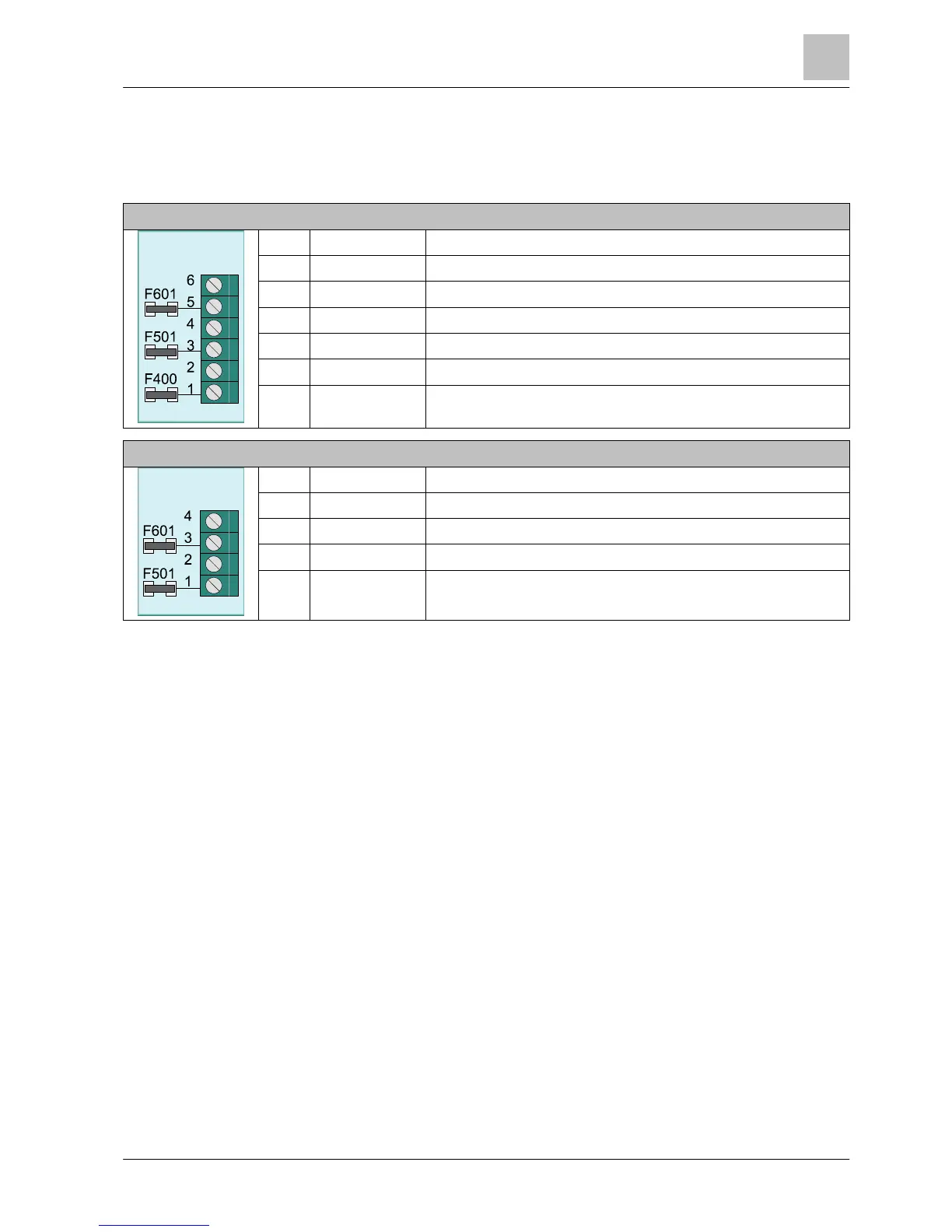

Connection terminals on periphery board (2-loop) of FC722 and/or periphery board
(4-loop) of FC724.
Permitted cable cross-section: 0.2…1.5 mm
2
.
FC722
X6 Designation Description
6 FAU_OUT Output fault
5 VSYS_O Supply output for consumer fault
4 AL_OUT- Alarm output (-)
3 AL_OUT+ Alarm output (+)
2 SOUND1- Output for acoustic signal transmitter (-)
1 SOUND1+ Output for acoustic signal transmitter (+)
FC724
X6 Designation Description
4 FAU_OUT Output fault
3 VSYS_O Supply output for consumer fault
2 AL_OUT- Alarm output (-)
1 AL_OUT+ Alarm output (+)
