Spare Parts List
7
7.1 Compatibility of detectors with central units
For all gases except O
2
, LDS6 exists in two versions as a consequence of a major upgrade.
Three of the LDS6 spare parts are affected by the change and will consequently exist in two
different versions. The "Sensor electronic" spare parts consist of one detector and one
detector PCB (A5E00681433) respectively. The PCB is not affected by the modification but
the detector is different. This spare parts list corresponds to the technical state of February
2009.
7.1.1 Detector Labels
The detector A5E-number indicates if a sensor is to be used with a Version 2 central unit.
Besides the example in the following picture also A5E1033996 (HCl) and A5E1030124 (CD
6C) are used with version 2.
The detector revision number (e.g. ES01) is only important if selecting a spare part that has
been stored for some time. To avoid degraded performance, do not use a spare part with a
lower revision number to replace a detector with higher revision number.

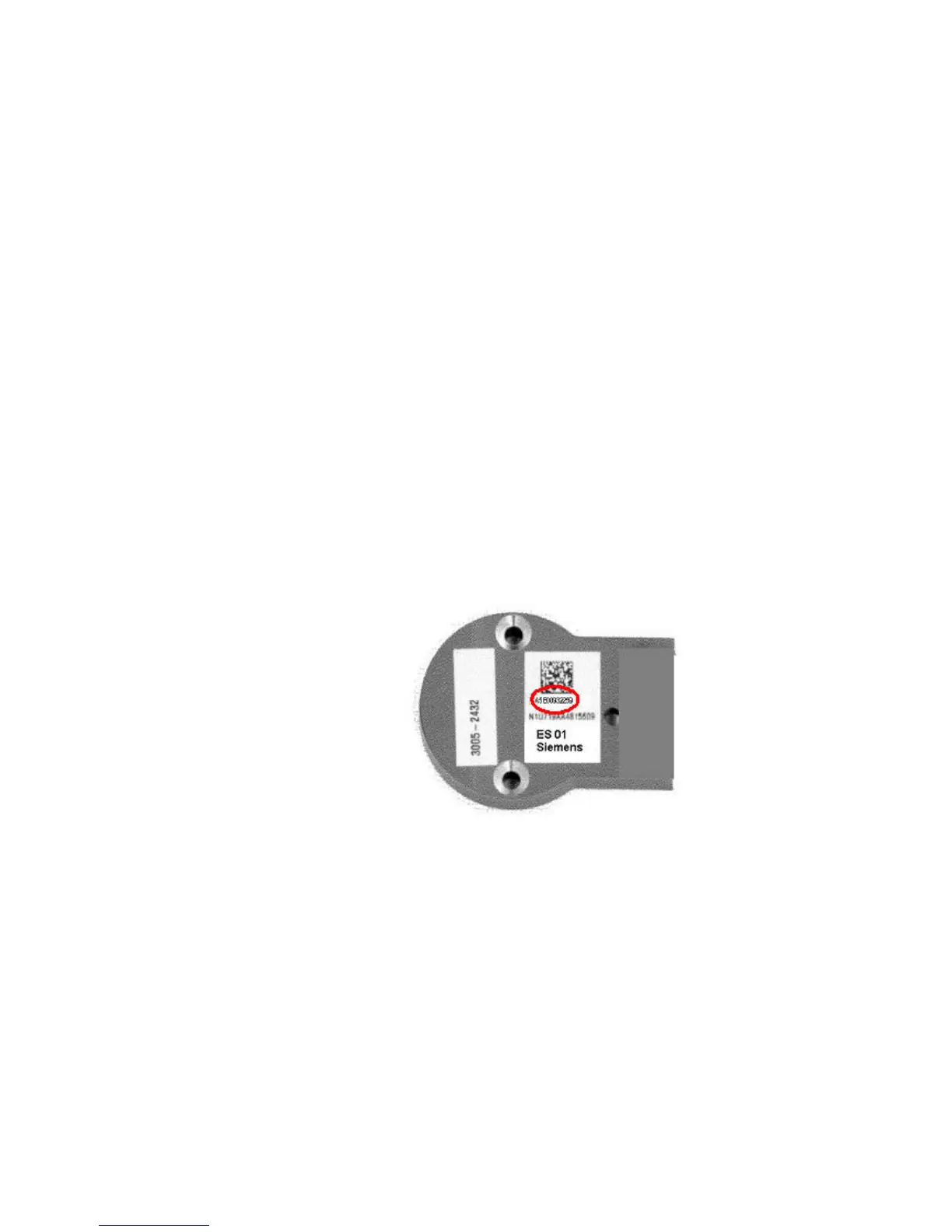

Figure 7-1 Labeling on the detector unit
See also
Spare Parts Lists (Page 79)
