Siemens LME7 Series Technical Instructions

Technical Instructions LME Series
Document No. LME-1000
Section 1 Page 2 SCC Inc.

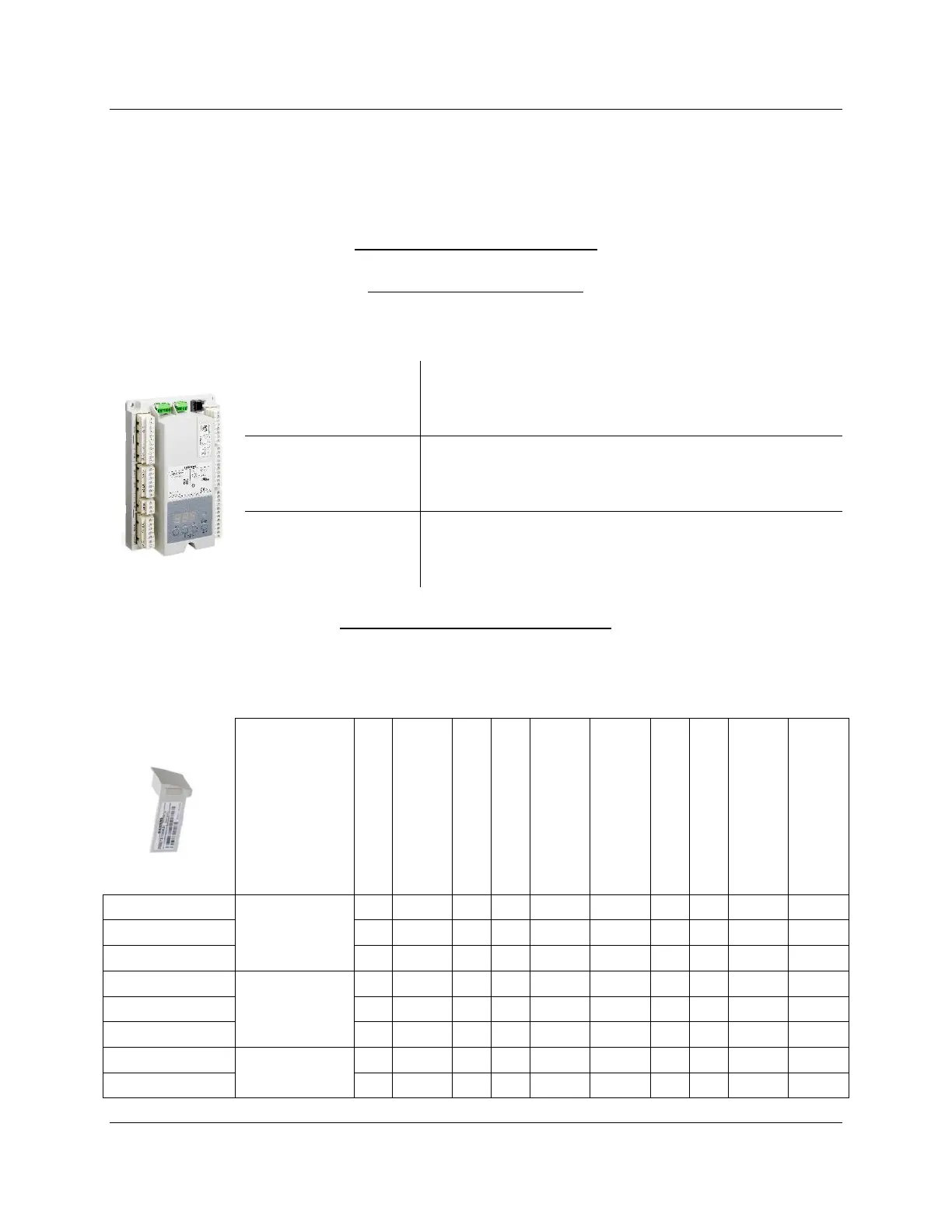

LME7 System Builder
The LME7 burner control system is comprised of many components. Use the following pages to
choose the components needed for your specific application.
Control Panel Components
Base Unit – Qty (1) Required
Choose one of the following LME7 base unit options. See page 10 for mounting information.
LME71.000A1
Flame safeguard, without actuator control, without
self-check scanner capability, 110V
LME73.000A1
Flame safeguard, with actuator control, without
self-check scanner capability, 110V
LME75.000A1
Flame safeguard, with actuator control, with self-
check scanner capability, 110V
Program Module – Qty (1) Required
Choose one of the following PME7 program modules. The program module contains the
program sequence used to operate the burner.
Base Unit Controls Actuator Actuator Control Can Be Disabled Controls PWM Blower Flame Rod Non-Self-Checking UV Scanner Self-Checking UV or IR Scanner Valve Proving Purge Independent Ignition Position Analog Input for Fire Rate
PME71.111A1
LME71.000A1
• • •
PME71.112A1 • •
PME71.901A1 • • • • • •
PME73.811A1
LME73.000A1
• • • • • •
PME73.812A1 • • • • • •
PME73.840A1 • • • • • •
PME75.811A1
LME75.000A1
• • • • • • •
PME75.812A1 • • • • • • •
