Viewing the Status Screen
When connected to the LME7, the ACS410 can provide a status screen. This provides a useful
summary of the LME7 inputs and outputs, as well as the operating state of the LME7. The
following steps outline the procedure for viewing the ACS410 status screen.
1. Open the ACS410 software, and connect to the LME7 at any password level.
2. Once connected, click on the “Status” tab at the top of the screen. The status screen will
appear detailing the operating state of the LME7. The status screen looks like Figure 9-2 below.

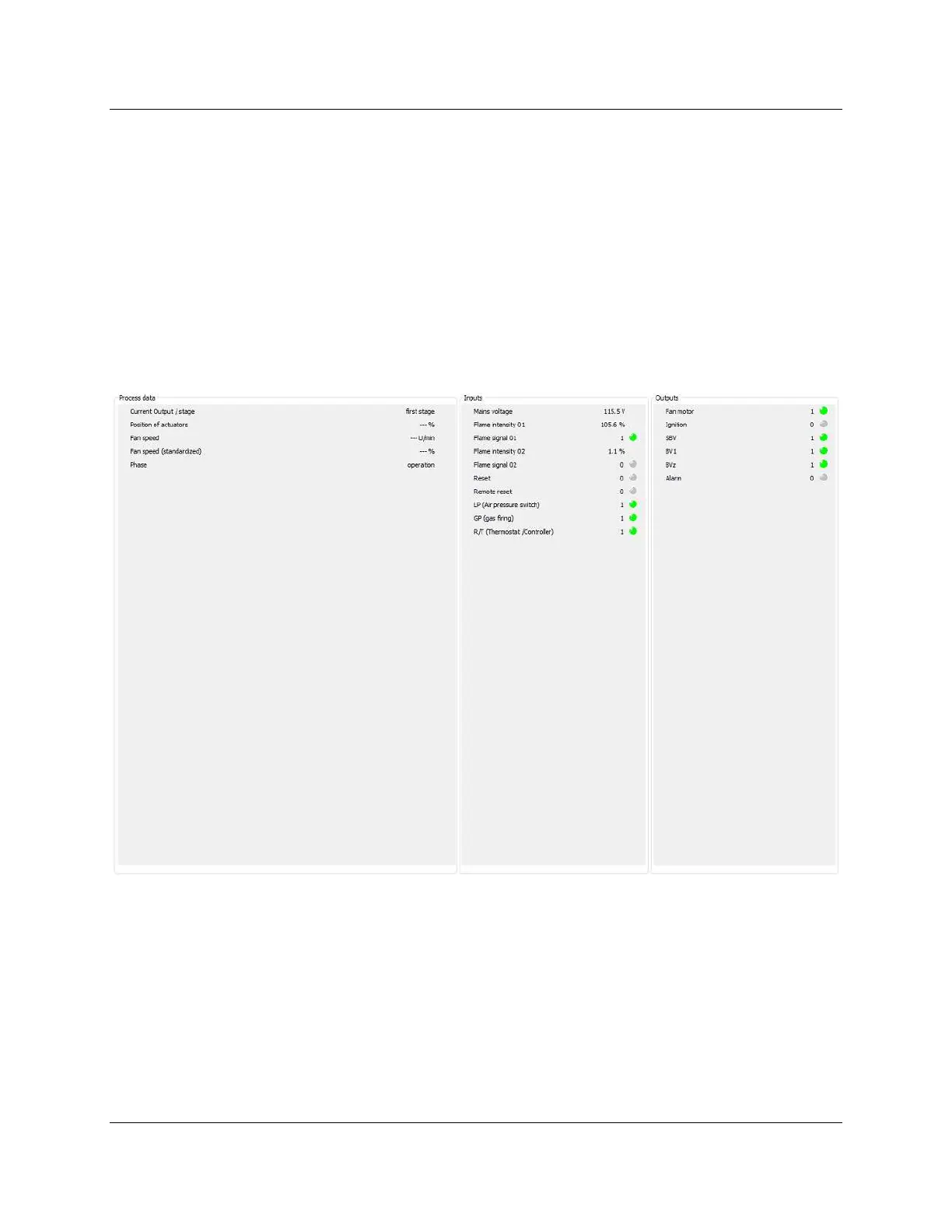

Figure 9-2: The ACS410 Status Screen
