Technical Instructions LME Series
Document No. LME-1000
Section 1 Page 10 SCC Inc.
Mounting
LME7 Controller
The LME7 must be mounted inside an enclosure that will protect it from dirt and moisture. The
unit should be mounted with three #8 screws (not provided). The panel, which the unit sits on,
should be drilled and tapped to accommodate these screws.
During the mounting process, consideration should be given to the various plugs and wires that
must be attached to the LME7. Electrical connections are made via plugs that are located in the
face of the unit with wires coming out to the top, left side, and right side of the unit. A space of
at least one inch is recommended above, to the left, and to the right of the LME7. The
recommended total space to leave for the LME7 is 8” x 6.75” x 3” because the overall
dimensions of the LME7 are 7.09” x 4.72” x 2.07”.

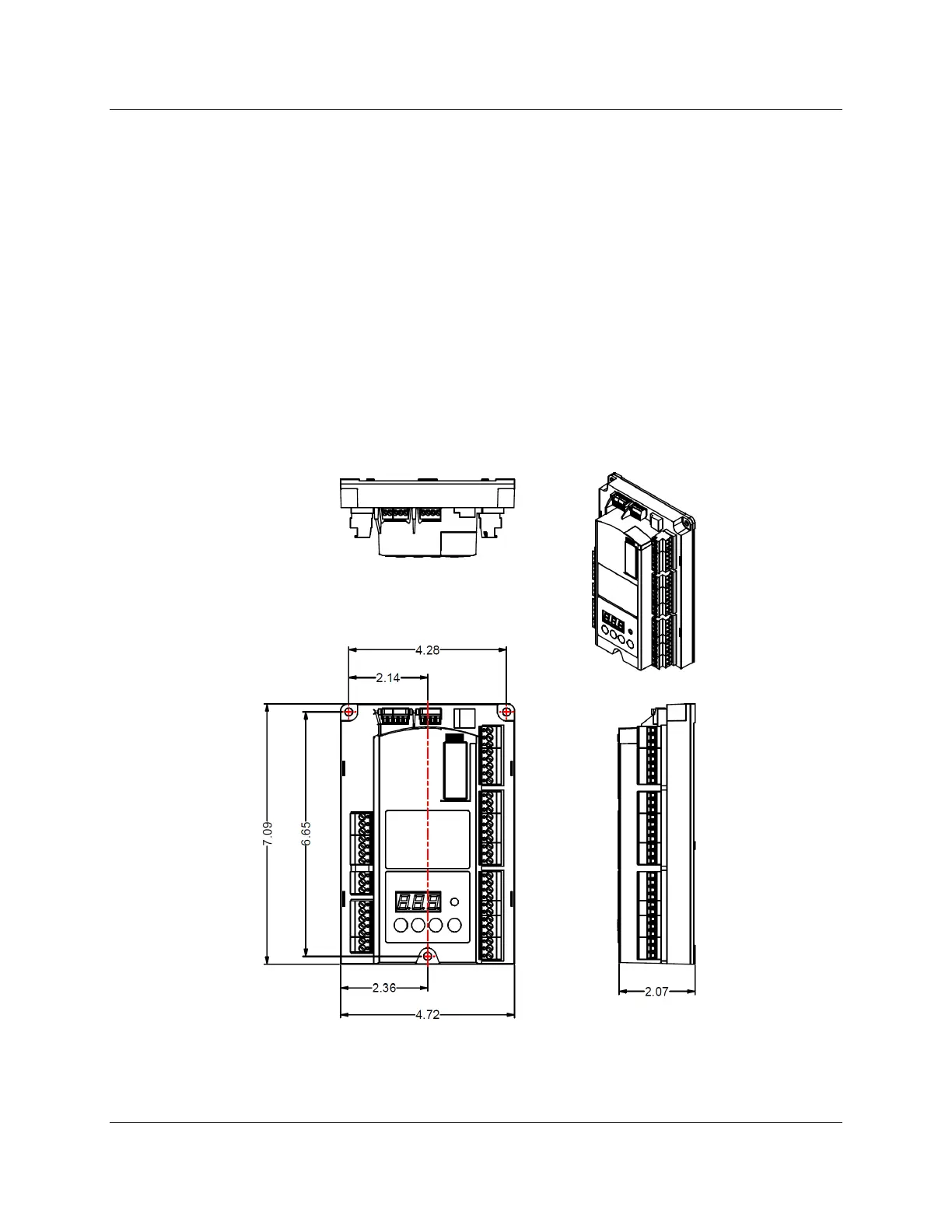

Figure 1-2: LME7 Dimensions (inches)
