23.4.1.4. Fault status messages, display of errors and info
Display of errors (faults) with lockout
P
Vh
mi n
s%
Bild 185/1107

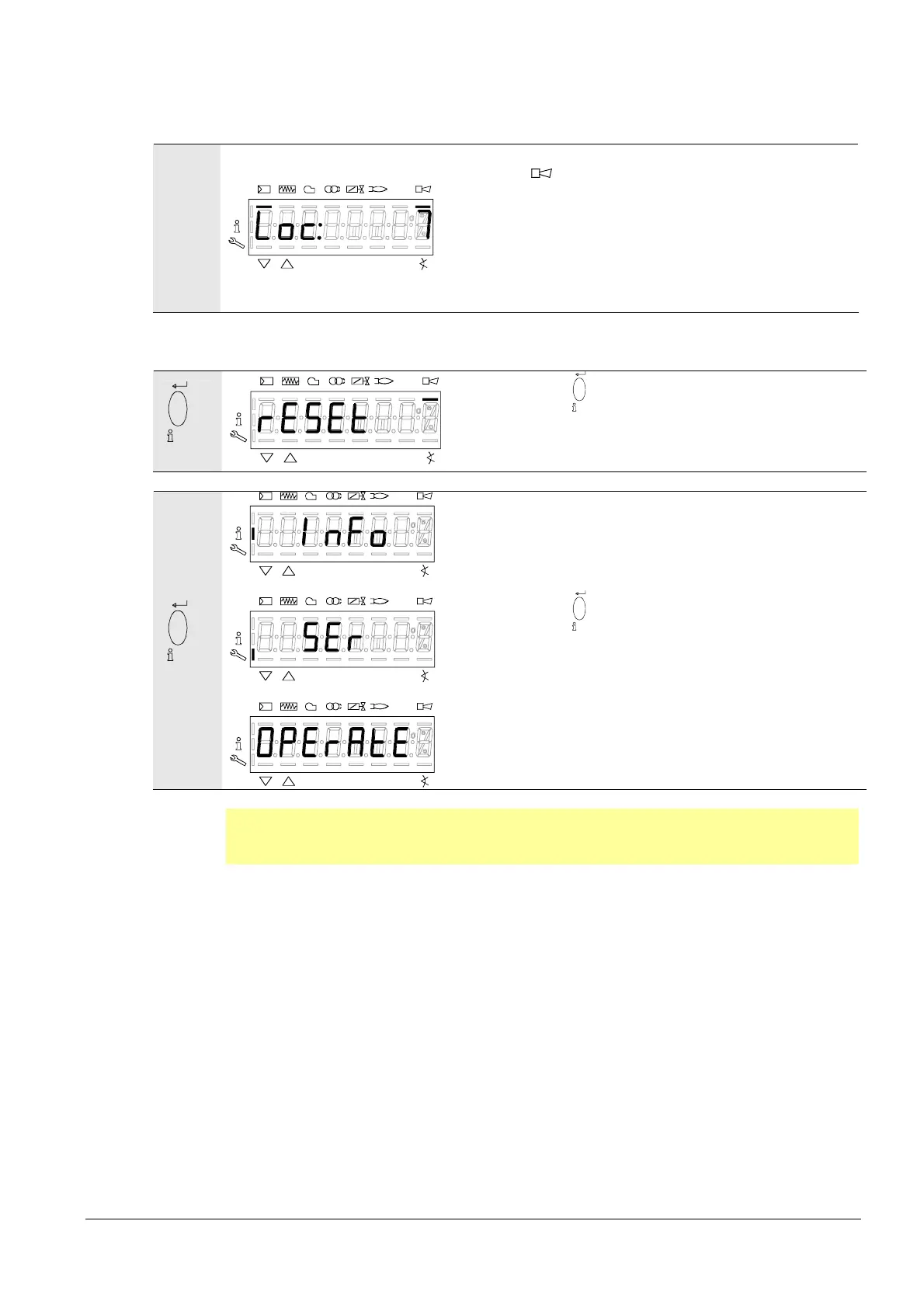

Display shows Loc:. The bar under the fault status
message
appears.
Unit is in the lockout position.
The current error code is displayed (see chapter Blink
code table).
Example: Error code 7
Reset
/
reset
1 s
P
Vh
min
s%
Bild 19/0707
When pressing
/
reset
for 1 second, rESEt appears on the
display.
When the button is released, the basic unit is reset.
/
reset
< 3 s
P
Vh
mi n
s%
Bild 20/0707
P
Vh
mi n
s%
Bild 21/0707
P
Vh
mi n
s%
Bild 22/0707
When pressing
/
reset
for > 3 seconds, the display shows
InFo, SEr and then OPErAtE.
When the button is released, the basic unit is reset.

Note:
For meaning of the error and diagnostic codes, see chapter Error code list…
When an error has been acknowledged, it can still be read out from the error history.
