Siemens LMV27.100x2 - 22.1.3 Display of operating position

129/219
Building Technologies Basic Documentation LMV27... CC1P7541en
22 Operation of LMV27 via the AZL2 17.12.2018
22.1.3 Display of operating position
P
Vh
mi n
s%
Bild 12/0707

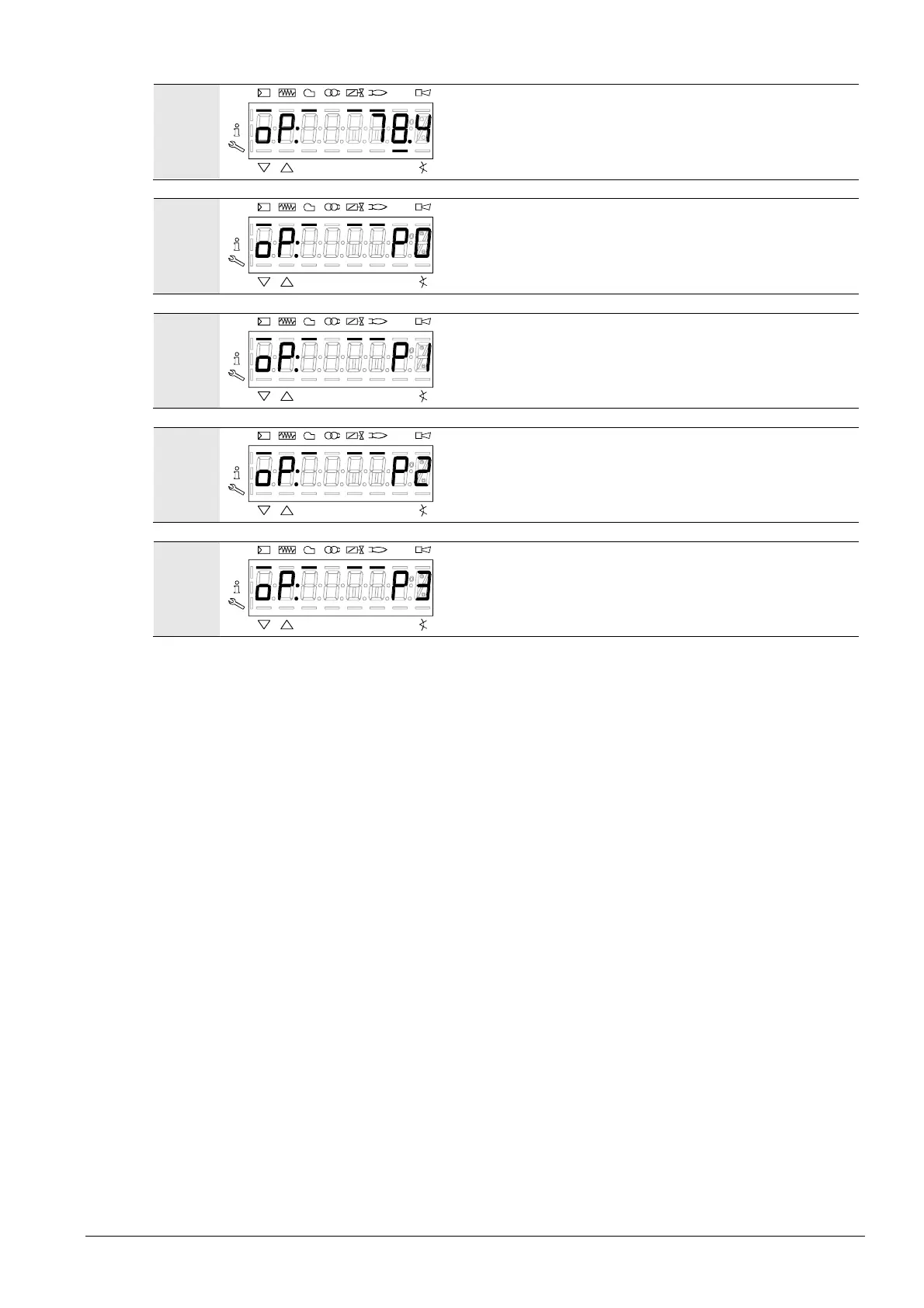

Display oP stands for Operating position reached.
Modulating mode: Current output in %
P
Vh
mi n
s%
Bild 13/0707
Display oP: P0 stands for Ignition point.
Multistage mode: Current heating stage
P
Vh
mi n
s%
Bild 14/0707
Display oP: P1 stands for Stage 1.
Multistage mode: Current heating stage
P
Vh
mi n
s%
Bild 15/0707
Display oP: P2 stands for Stage 2.
Multistage mode: Current heating stage
P
Vh
mi n
s%
Bild 16/0707
Display oP: P3 stands for Stage 3.
Multistage mode: Current heating stage
