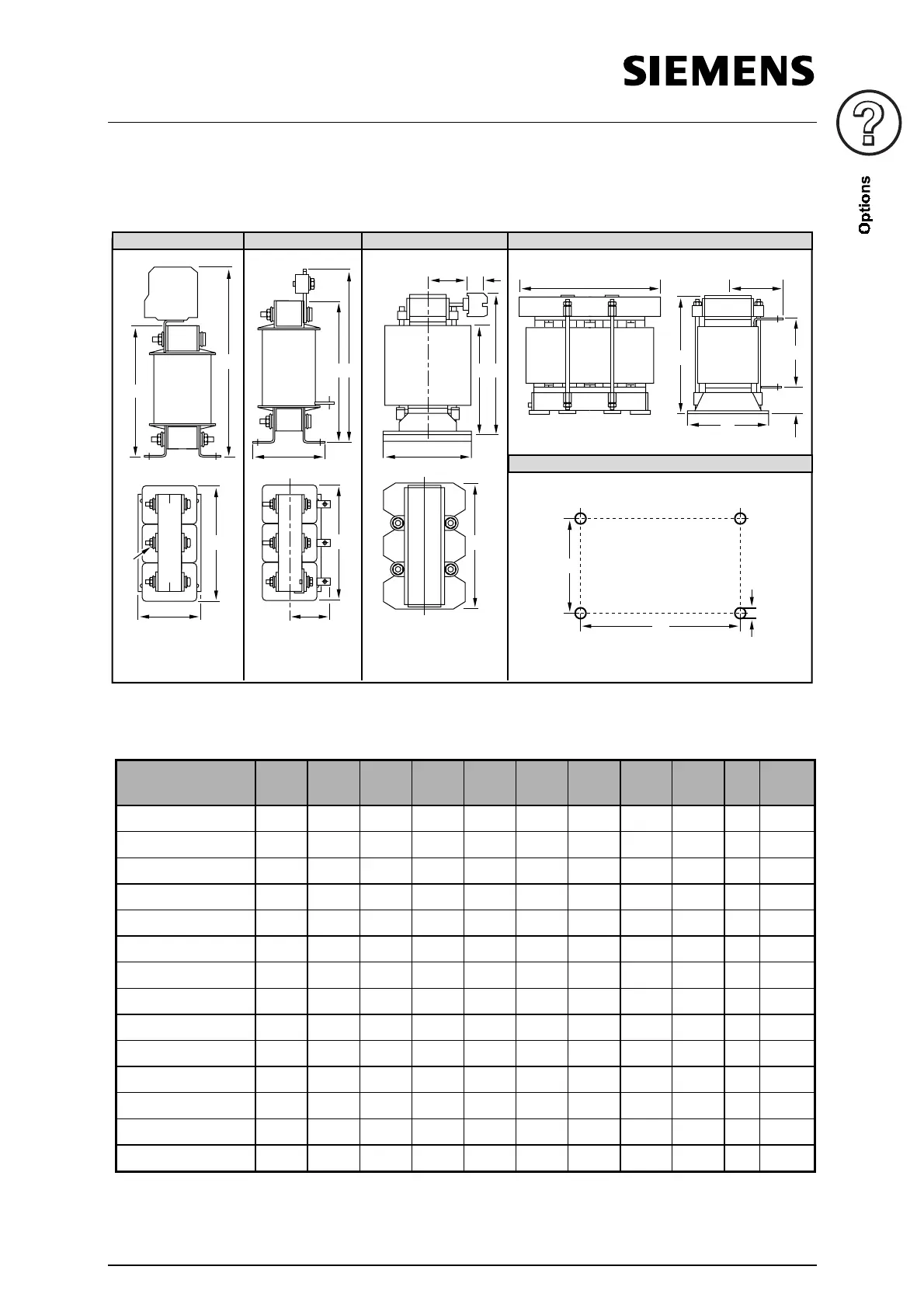

Installation of Output Reactors
Output Reactors (Iron core)
d
G
D
D D
G
B G
26mm
2
Plan view without
terminal strip
Plan view without
DIN rail and
terminal strip
h
H
W
W
h
h
s
H H
H
W
n
1
n
2
T
h
1 or 2 3 4 5
Mounting hole
Type Drawing H (mm)
max
h (mm)
max
W (mm)
max
D (mm)
max
c
1
(mm)
max
n
1
(mm)
max
n
2
(mm)
max
c
2
(mm)
max
d Weight
(kg)
6SE7016-1ES87-1FE0 2 153 140 178 73 - 53 166 - M5 4.4
6SE7021-8ES87-1FE0 2 180 165 219 99 - 69 201 - M6 8.0
6SE7022-6ES87-1FE0 2 180 165 219 119 - 89 201 - M6 9.2
6SE7023-4ES87-1FE0 2 265 206 267 107 - 77 249 - M6 11
6SE7024-7ES87-1FE0 5 220 103 197 104 69 70 176 55 M6 20
6SE7027-2ES87-1FE0 3 221 206 267 107 77 77 249 - M6 11
6SE7031-0ES87-1FE0 3 221 206 267 107 77 77 249 - M6 17
6SE7031-5ES87-1FE0 5 220 100 197 128 81 94 176 59 M6 25
6SE7031-8ES87-1FE0 5 250 119 281 146 98 101 200 65 M8 30
6SE7032-6ES87-1FE0 5 250 121 281 146 111 101 200 64 M8 30
6SE7033-2ES87-1FE0 5 280 139 311 155 114 118 224 67 M8 45
6SE7033-7ES87-1FE0 5 280 - 264 155 101 118 224 - M8 45
6SE7035-1ES87-1FE0 5 280 150 310 155 106 118 224 66 M8 45
6SE7037-0ES87-1FE0 5 335 180 360 169 114 138 264 76 M8 60
