Siemens Midimaster Eco - Installation of Filters

ECO REFERENCE MANUAL
15-9

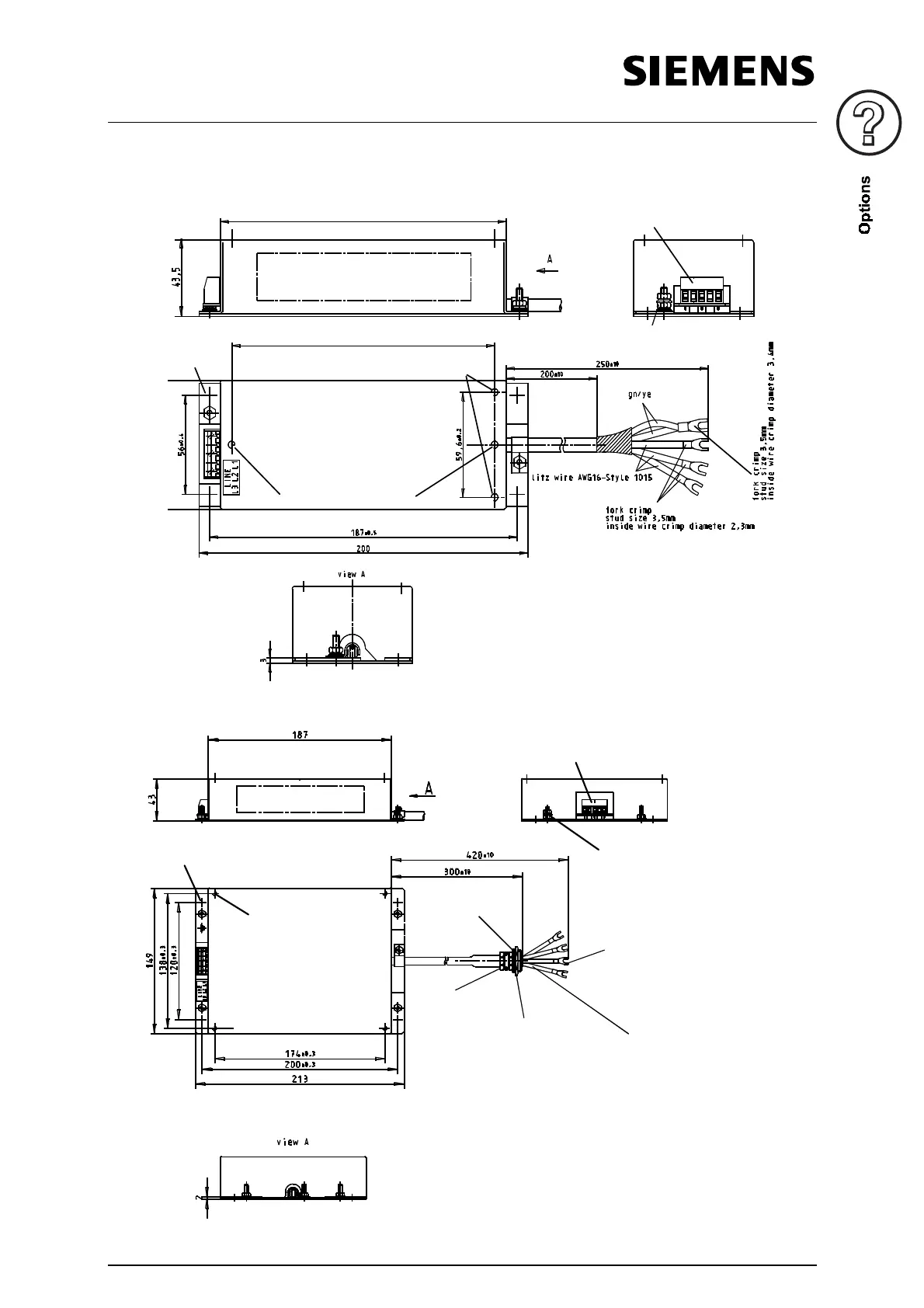

Installation of Filters
6SE3290-0DA87-0FA1,6SE3290-0DA87-0FB1
Rating Label
4 x Fixing holes
∅
4.8mm
Inverter mounting holes
M4 (thread depth max. 5mm)
160
±
0.4
Nema 1 Gland plate fixings.
M4 (thread depth max. 5mm)
174
Terminal 2.5mm
2
Rated Torque of screw 0.7 Nm
Earth Stud, M4
Rated Torque 1.5 Nm
6SE3290-0DB87-0FA3, 6SE3290-0DB87-0FB3
Rating Label
4 x Fixing holes
∅
4.8mm
Inverter mounting holes x 4
M4 (thread depth max. 5mm)
Tightening Torque 1.5Nm max.
Terminal 2.5 mm
2
Rated Torque of screw 0.7 Nm
Earth Stud, M4
Rated Torque 1.5 Nm
Reducer
Pg16 - Pg9
Cable Gland Pg9
Fork crimp
Stud size 3.5mm
Inside wire crimp diameter 2.3mm
Hexagonal flat nut Pg16
Rated torque 7.0 Nm
Litz wire AWG12 - Style 1015
