Installing/mounting
3.3 Mounting Details
Milltronics MFA 4p
10 Operating Instructions, 08/2017, A5E33988839_AB
3.3
Mounting Details

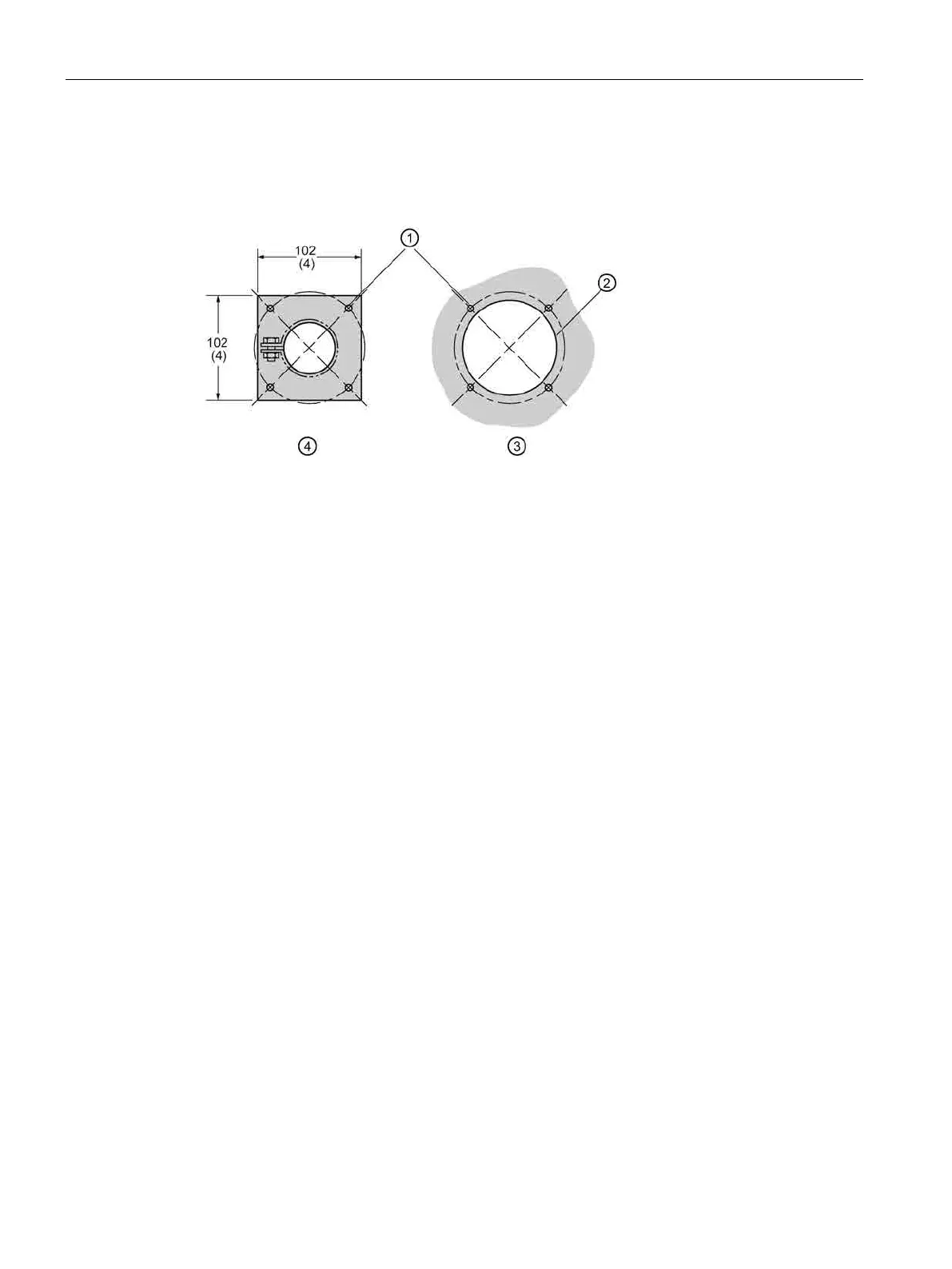

MSP-9 Mounting Details
Dimensions in mm (inch)
① 6 (0.25) ∅ 4 holes equally spaced on a 114 (4.5) BCD
② 95 (3.75) ∅ probe clearance hole
③ Panel cutout
④ Probe flange
● For high temperature and corrosion resistance applications
● 304 stainless steel body comes with stainless steel clamp and silicone gasket
● 1.5 m (5 ft) Belden 83321 Teflon
1)
cable potted in probe
● Pre-amp is mounted in an enamel painted steel Hammond 1414N4E enclosure
1)
Teflon is a registered trademark of E.I. du Pont de Nemours and Company
