Siemens milltronics MFA 4P

Dimension drawings
8.2 Probes
Milltronics MFA 4p
36 Operating Instructions, 08/2017, A5E33988839_AB
8.2.4
Hazardous Locations XPP-5

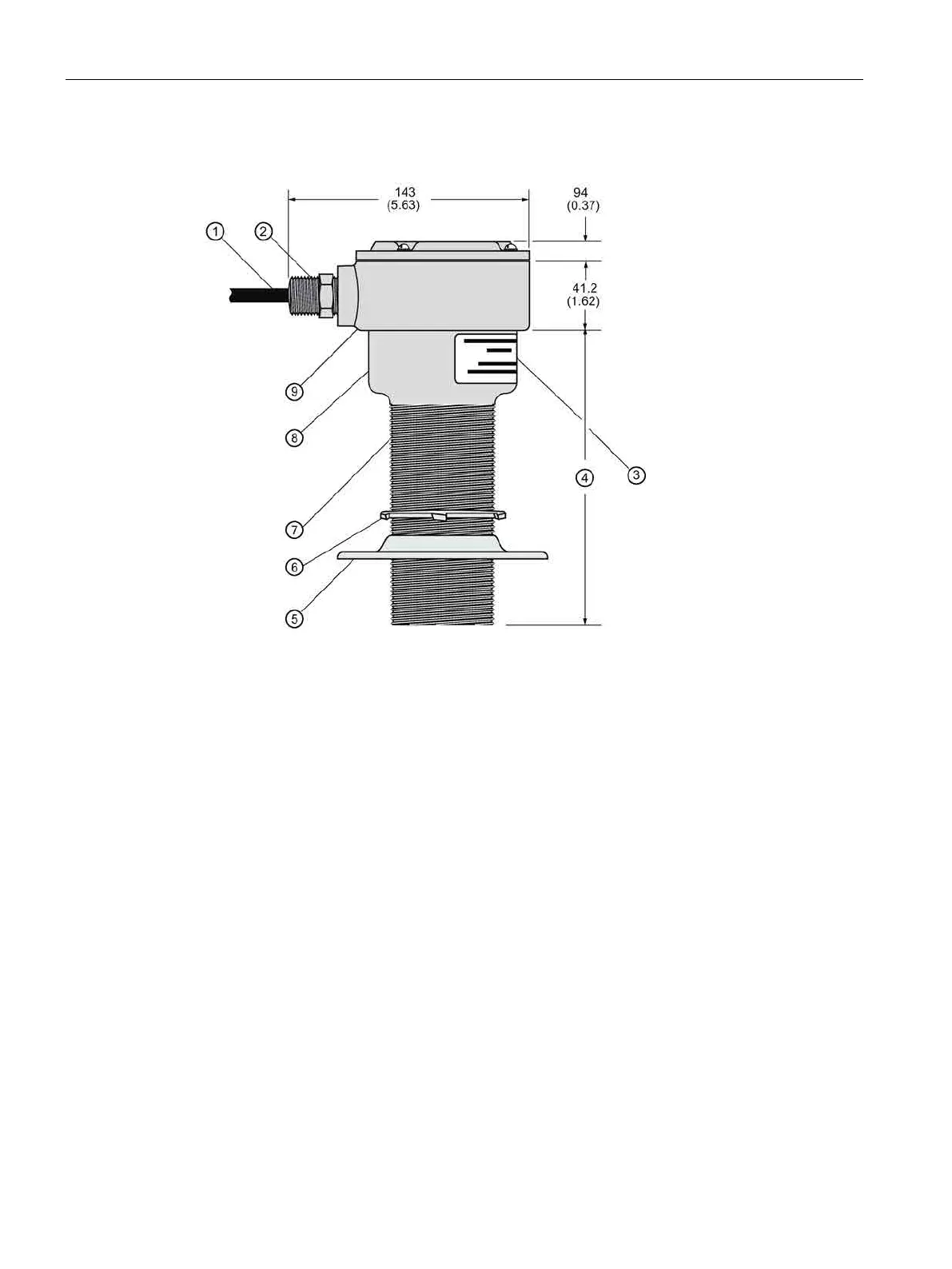

Dimensions in mm (inch)
① 2 conductor shielded cable
② ¾" NPT
③ Nameplate
④ 171.5 (6.75) nominal
⑤ Mounting flange
⑥ Locknut
⑦ 2" NSPL
⑧ Probe body (potted aluminum housing)
⑨ Probe body (potted aluminum junction box)
● C.S.A Approved for:
– Class I, Div. 1, Groups A, B, C, and D
– Class II, Div. 1, Groups E, F, and G
– Class III
● Aluminum body with die-cast flange and zinc-plated locknut.
● Pre-amp and cable potted in the probe's body.
