Dimension drawings
8.1 MFA 4p
Milltronics MFA 4p
32 Operating Instructions, 08/2017, A5E33988839_AB
Type 4/NEMA 4/IP65 Painted Steel Enclosure & Type 4X/NEMA 4X/IP65
Stainless Steel Enclosure

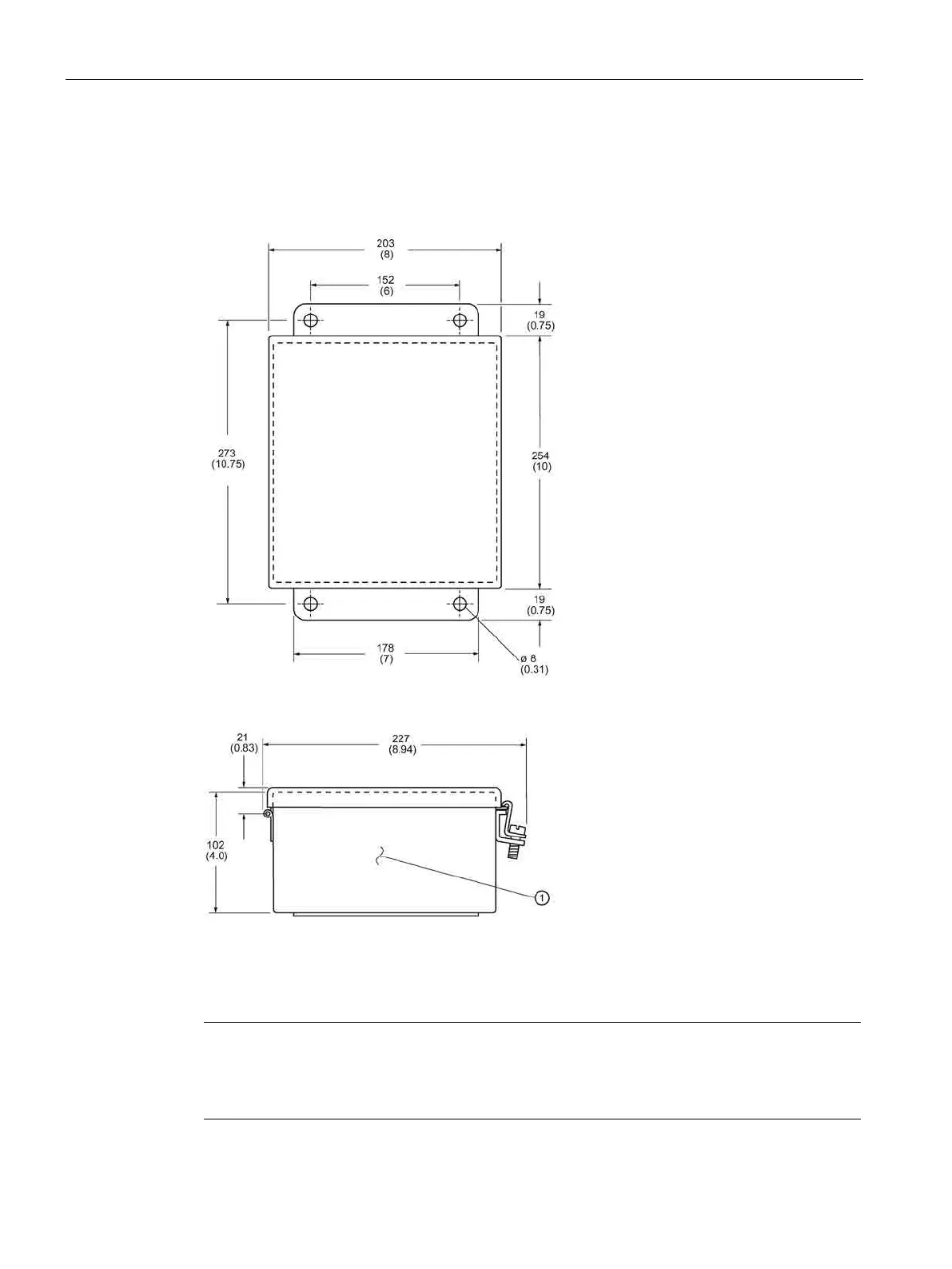

Dimensions in mm (inch)
① Suitable location for conduit entrance (customer specified)
Painted steel enclosure does not provide grounding between conduit connections: use
grounding type bushings and jumpers.
Use only approved, suitable size hubs for watertight application.
