Applications
B.6 Belt Conveyors
Milltronics MFA 4p
48 Operating Instructions, 08/2017, A5E33988839_AB
B.6
Belt Conveyors

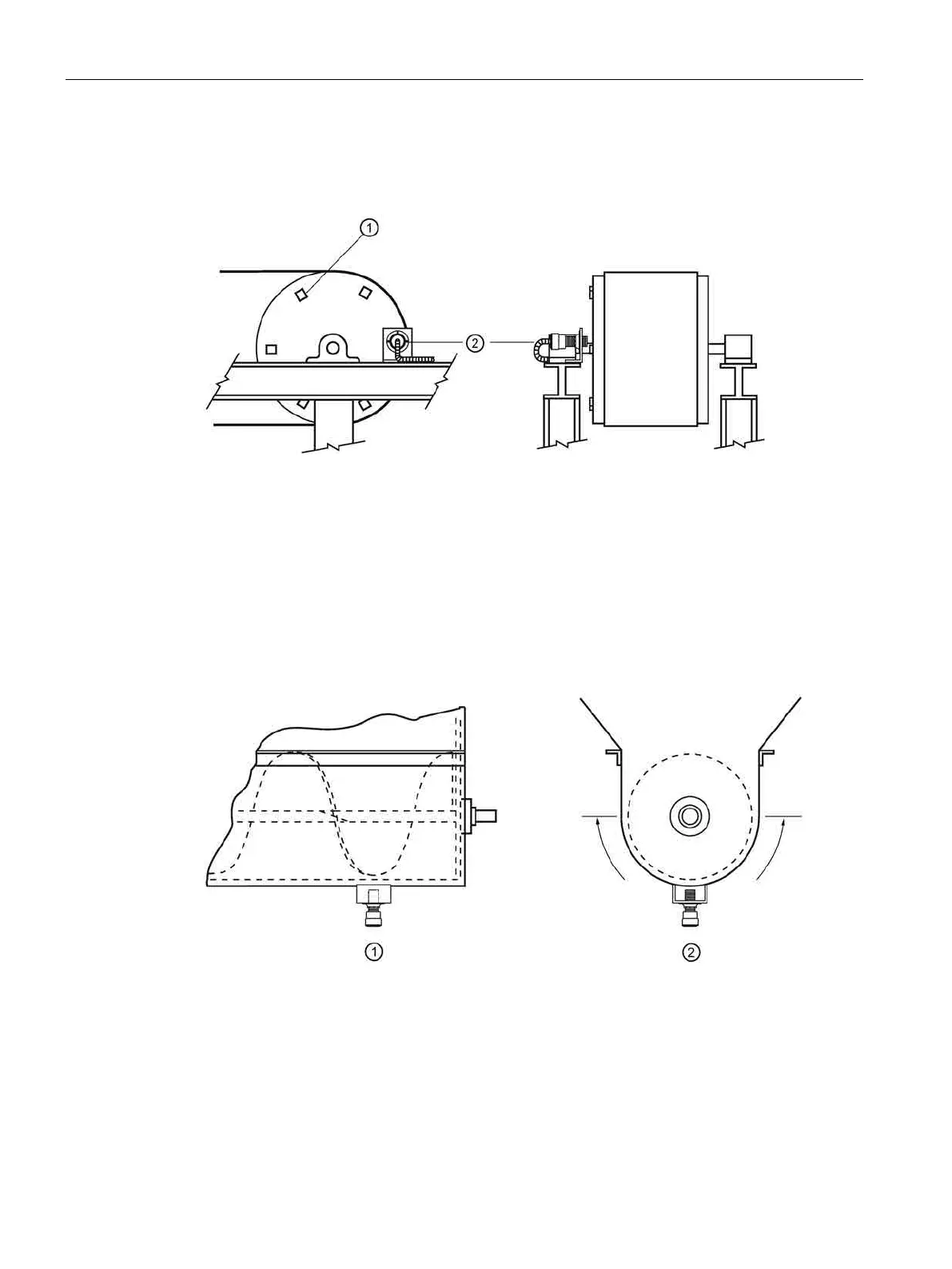

Dimensions in mm (inch)
50 x 50 x 25 (2 x 2 x 1) ferrous blocks or spoked wheel
Probe
Potential for damage in each application governs the minimum gap allowable. Maximum gap
for operation is 102 mm (4 inch), optimum 25 to 50 mm (1 to 2 inch).
B.7
Screw Conveyors
The probe should be located at the idler end (usually feed end)
Arrows indicate permissible placement range of the probe
A ferrous mass added behind the flight of a screw conveyor, where it passes the probe aids
Borderline Operation. This mass must be added for all non-ferrous screws.
