Dimension drawings
8.2 Probes
Milltronics MFA 4p
Operating Instructions, 08/2017, A5E33988839_AB
33

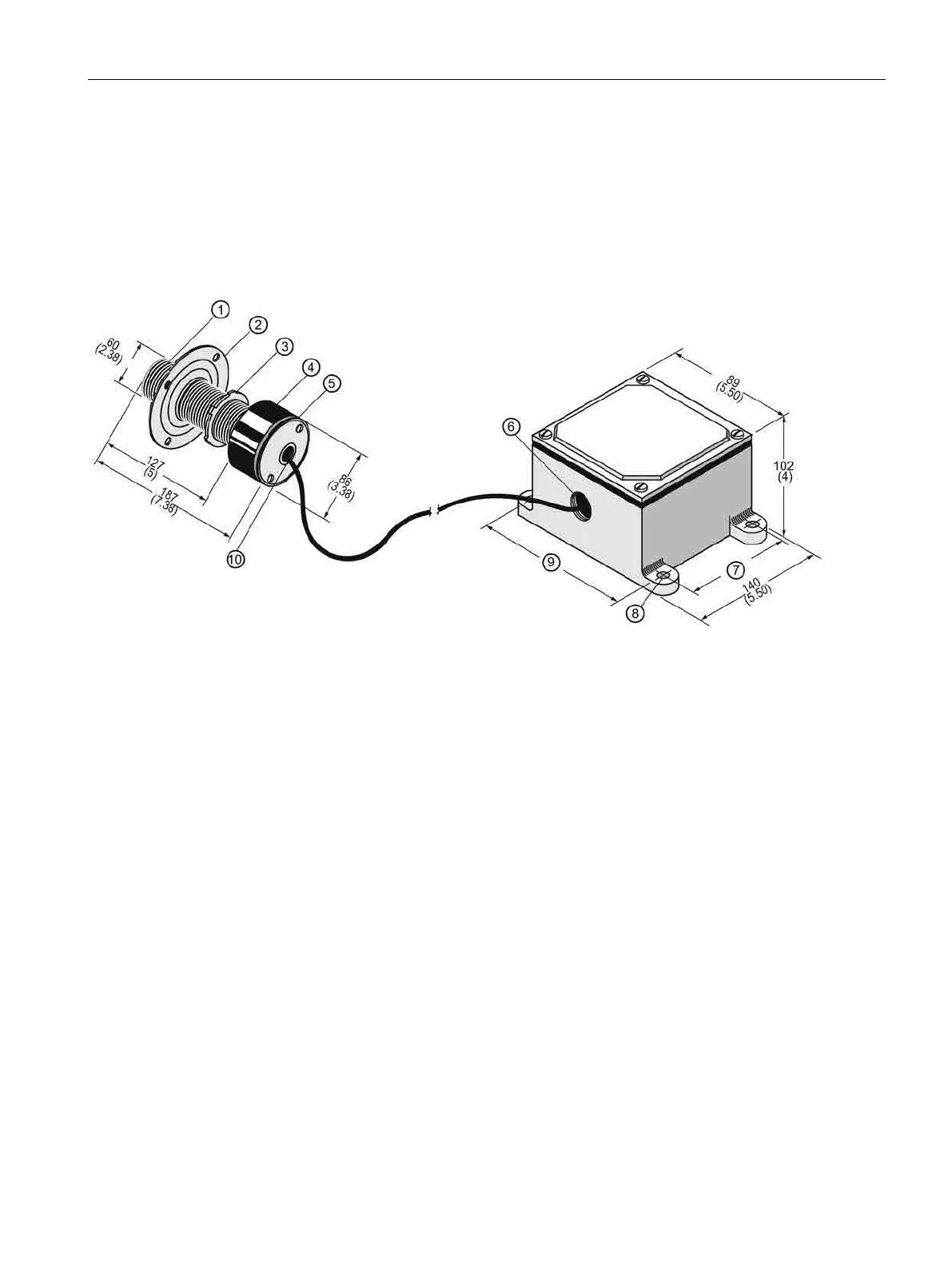

High Temperature Probe MSP-3
Dimensions in mm (inch)
① 2" NPSL
② Mounting flange
③ Locknut
④ Probe body
⑤ Gasket
⑥ ½" NPT, tapped both sides
⑦ Mounting centers 111 (4.375)
⑧ 8 (0.312) ∅, 4 holes
⑨ Mounting centers 165 (6.50)
⑩ CAP c/w ½" NPT conduit entrance
● Cast aluminum body comes with cast aluminum cap and zinc flange, zinc plated locknut,
and silicone rubber gasket.
● See Mounting Details (Page 10)
● Pre-amp is mounted in a NEMA 4 cast aluminum enclosure.
