Dimension drawings
8.2 Probes
Milltronics MFA 4p
34 Operating Instructions, 08/2017, A5E33988839_AB
8.2.2
Stainless Steel Probe MSP-9

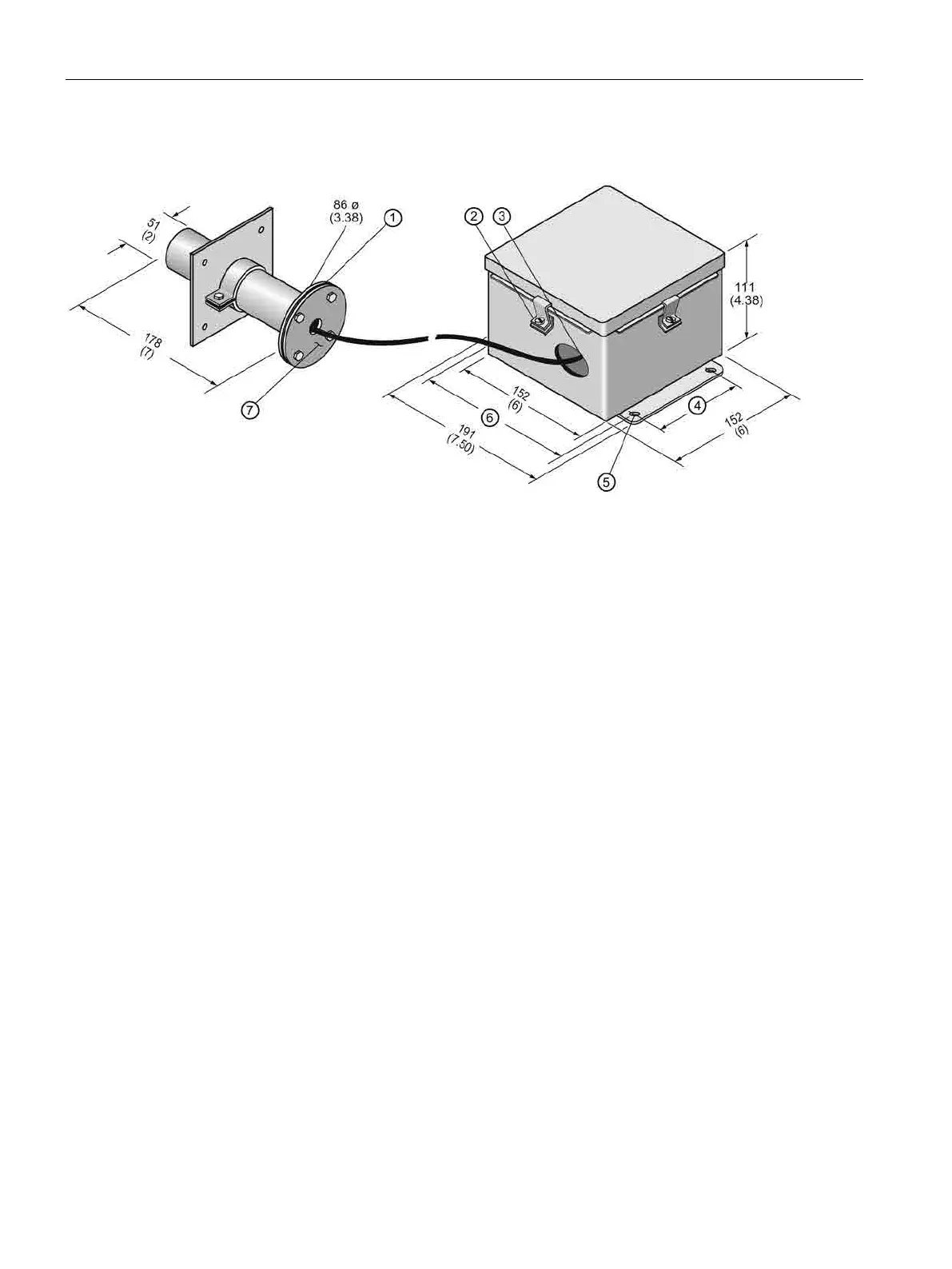

Dimensions in mm (inch)
① Gasket
② Clamps, 4 places
③ 22 (0.875) ∅, 2 places
④ 102 (4) mounting centers
⑤ 8 (0.312), 4 places
⑥ 171 (6.75) mounting centers
⑦ Cap c/w 22 (0.8758) ∅ hole
