Siemens milltronics MFA 4P User Manual

Installing/mounting
3.4 Wiring
Milltronics MFA 4p
Operating Instructions, 08/2017, A5E33988839_AB
11

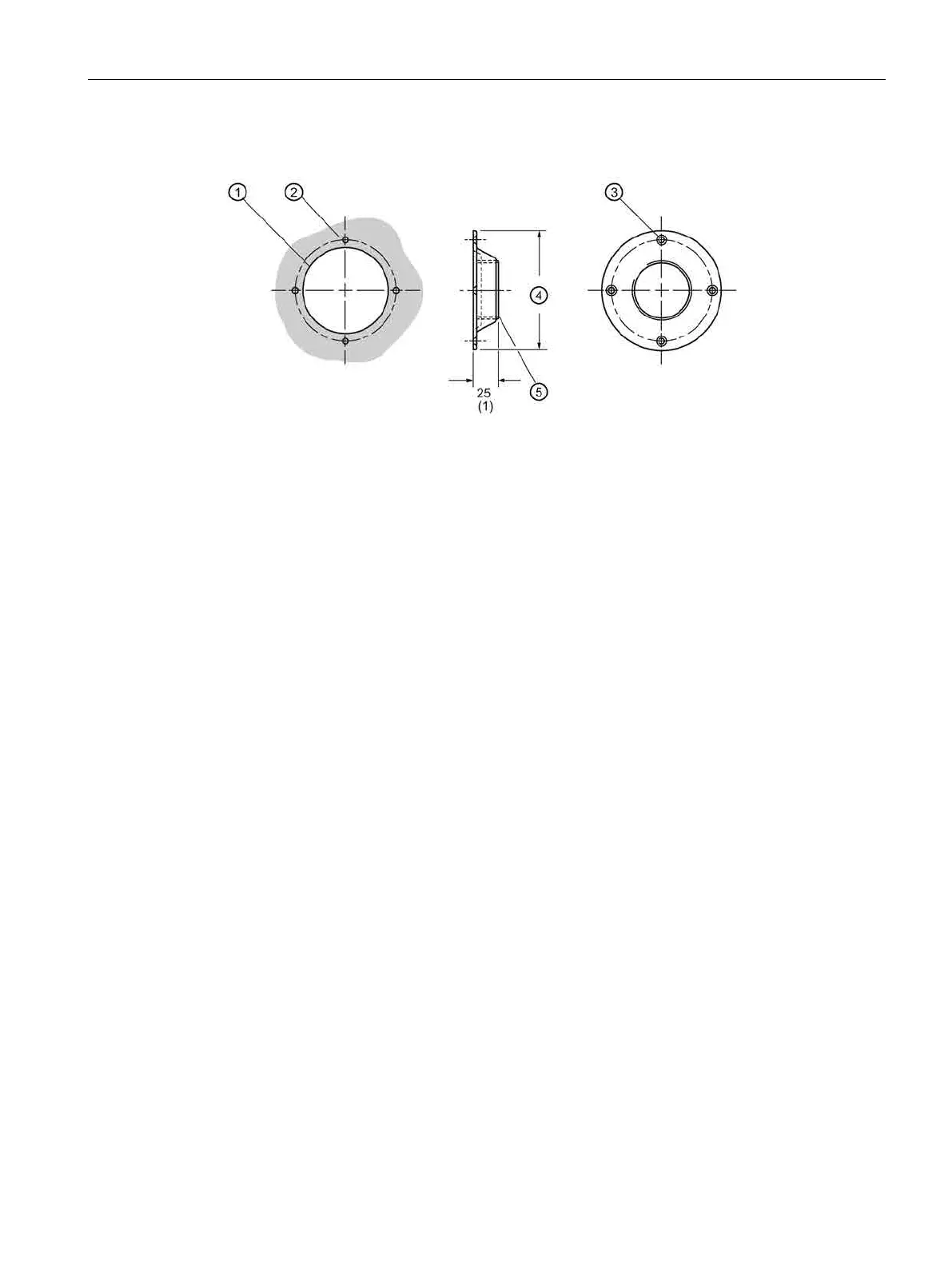

MSP-3, MSP-12, XPP-5 Mounting Details
Dimensions in mm (inch)
① 95 (3.75) ∅ probe clearance hole
② 6 (0.25) ∅ hole for ¼ - 20 nut and bolt or drill and tap, four holes on 114 (4.5) BCD
③ 6 (0.25) ∅ hole for ¼ - 20 bolt on 114 (4.5) BCD, four places
④ 113 (5.25) O.D.
⑤ 2" NSPL
3.4
Wiring
Where possible, the probe components should be interconnected via flexible conduit. This
allows for easier removal or adjustment of the probe and mounting flange assembly.
