Siemens MPP 464 IE H - Page 27

X21 3 S_S4 I/O NO contact S4
4 S_S3 NO contact S3
5 S_S2 NO contact S2
6 S_S1.1 NO contact S1.1
7 BZS_S1.2 Reference pot. NO contact S1.2
8 S_S1.2 NO contact S1.2
9 HS 4
I
Indicator light S4 All inputs
"High" active
10 HS 3 Indicator light S3
11 HS 2 Indicator light S2
12 HS 1 Indicator light S1

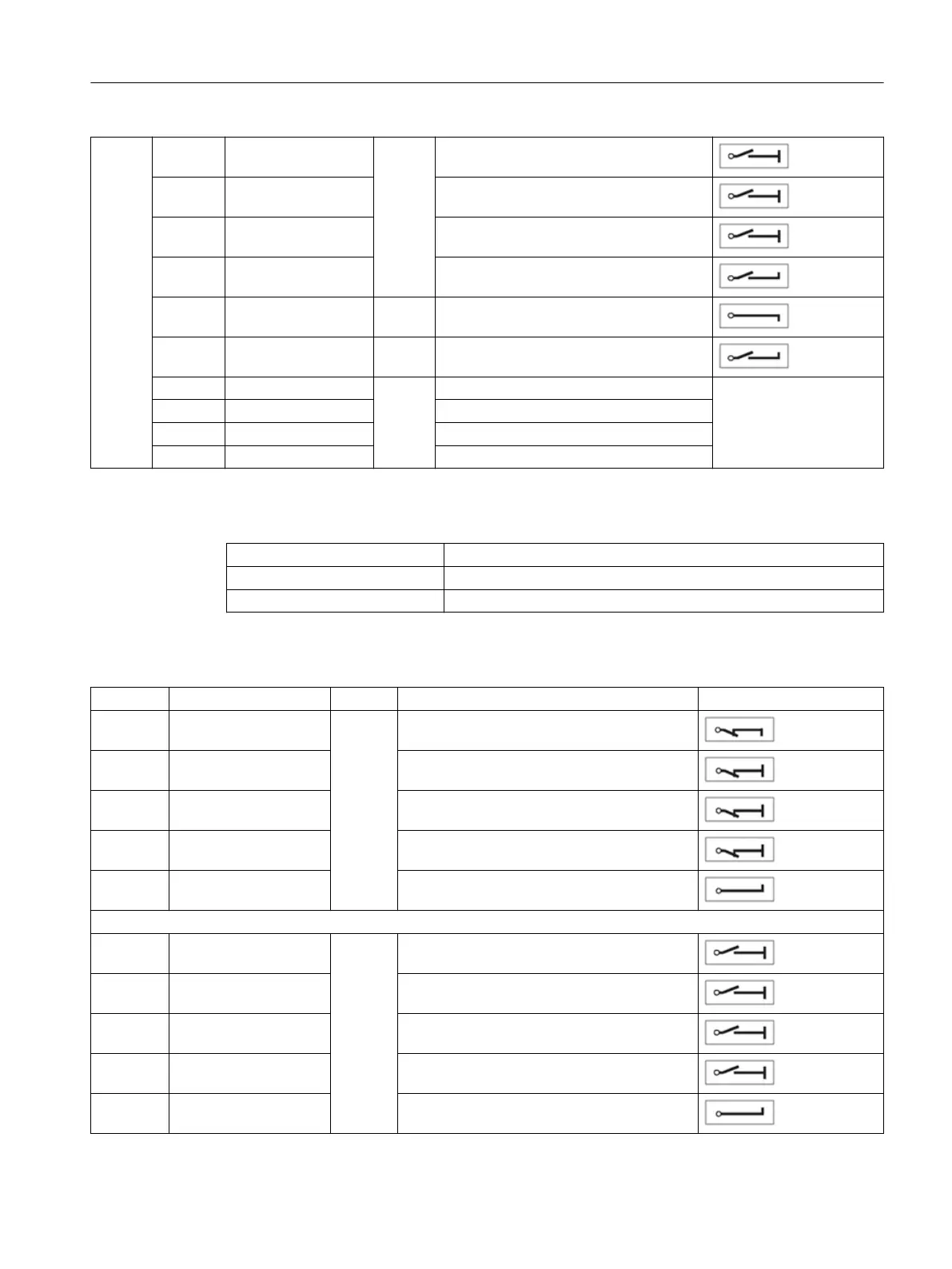

Plug X22
Connector designation: X22
Connector type: Mini-Combicon MC 1.5/12-G-3.81
Cable length (max.): 30 m
Table 3-12 Plug X22
Pin Signal Type Signal name Function
1 OE_S7 I/O NC contact S7
2 OE_S8 NC contact S8
3 OE_S9 NC contact S9
4 OE_S10 NC contact S10
10 BZOE_S7-10 Reference potential NC contacts S7 ... S10
5 S_S7 I/O NO contact S7
6 S_S8 NO contact S8
7 S_S9 NO contact S9
8 S_S10 NO contact S10
9 BZ S_S7-10 Reference potential NO contacts S7 ... S10
Description
3.4 Interfaces
Machine Pushbutton Panel: MPP 464 IE H
Equipment Manual, 03/2021, A5E50810237B AA 27
