Introduction
1-3
MP270 Equipment Manual
Release 01/99

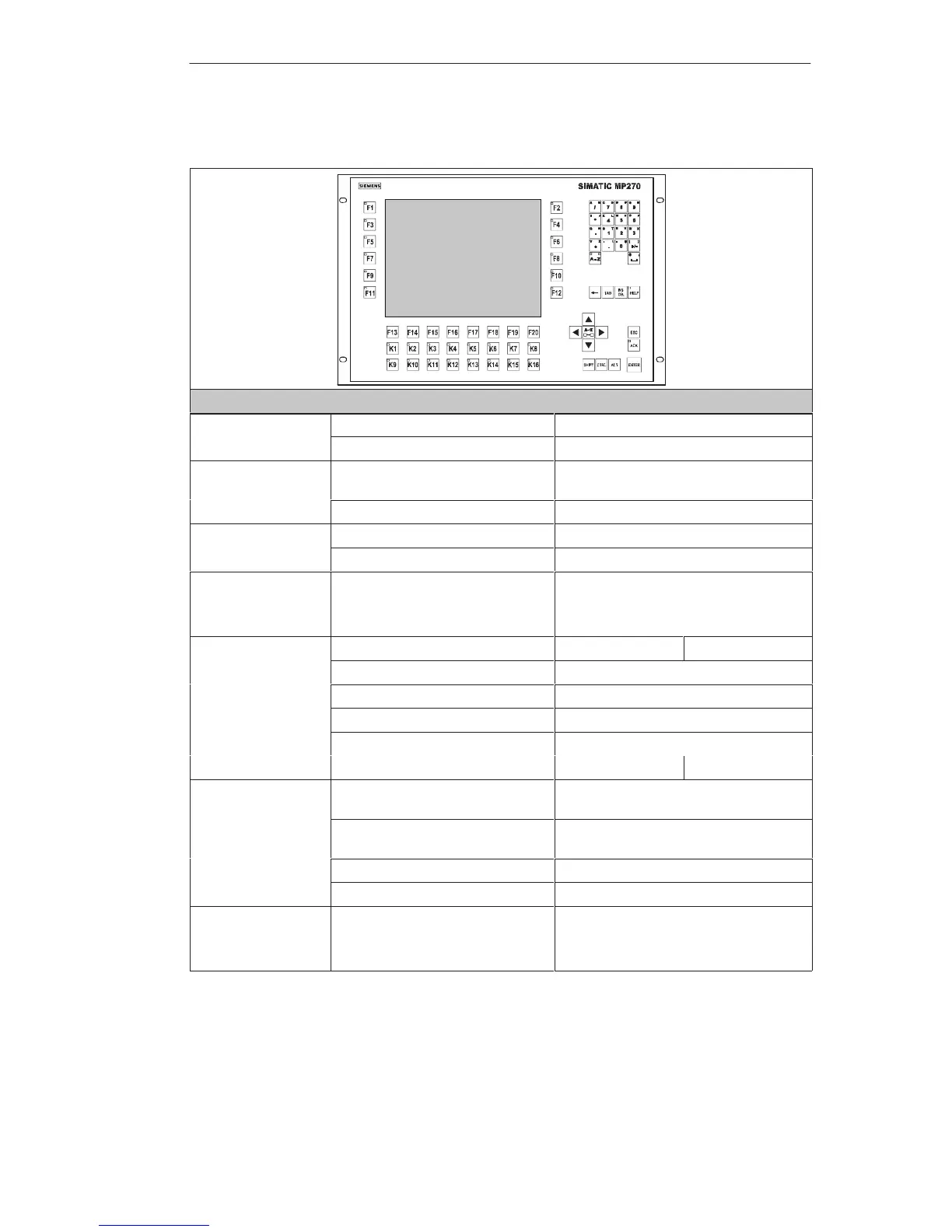

MP270 general overview
Overview: MP270 model
Processor Type SC400
Clock frequency 66 MHz
Memory Flash EPROM for operating system,
runtime software and configuration
8 MB
DRAM working memory 16 MB
Software Operating system MicrosoftR WindowsR CE
Operation-capable runtime software SIMATIC ProTool/Pro runtime
Interfaces Serial interface to connect PLC,
PC/PU, printer
1 × RS232/TTY (active/passive)
1 × RS232 (9-pin)
1 × RS422/RS485
Display Type TFT LCD
1)
STN LCD
2)
Active screen area (W × H) in mm 211 × 158 (10.4’’)
Resolution (pixels) 640 × 480
Colors 256
Back-lighting CCFL tube
Service life, approx. (h) 40,000 50,000
Membrane keyboard System keys with dedicated
functions
33
(3 with LEDs)
Function keys with configurable
functions
36
(28 with LEDs)
Those usable as softkeys 20
Labeling the function keys System-specific with labelling strips
Special features External memory extension:
S Slot for PC card
S Slot for CF card
4
Not currently supported
1)
Active matrix display
2)
Passive matrix display
