Operating Special Screen Objects
5-9
MP270 Equipment Manual
Release 01/99
5.2.4 Message Buffer
Purpose
The message buffer displays all message events allocated a time stamp. It is
possible to configure the sorting sequence displayed. Open message buffers are
constantly updated.
Structure
In order to have access to the message buffer for event messages and/or alarm
messages on the MP270, the following functions must have been configured:
for event messages:
Show_event_message_buffer
for alarm messages:
Show_alarm_message_buffer

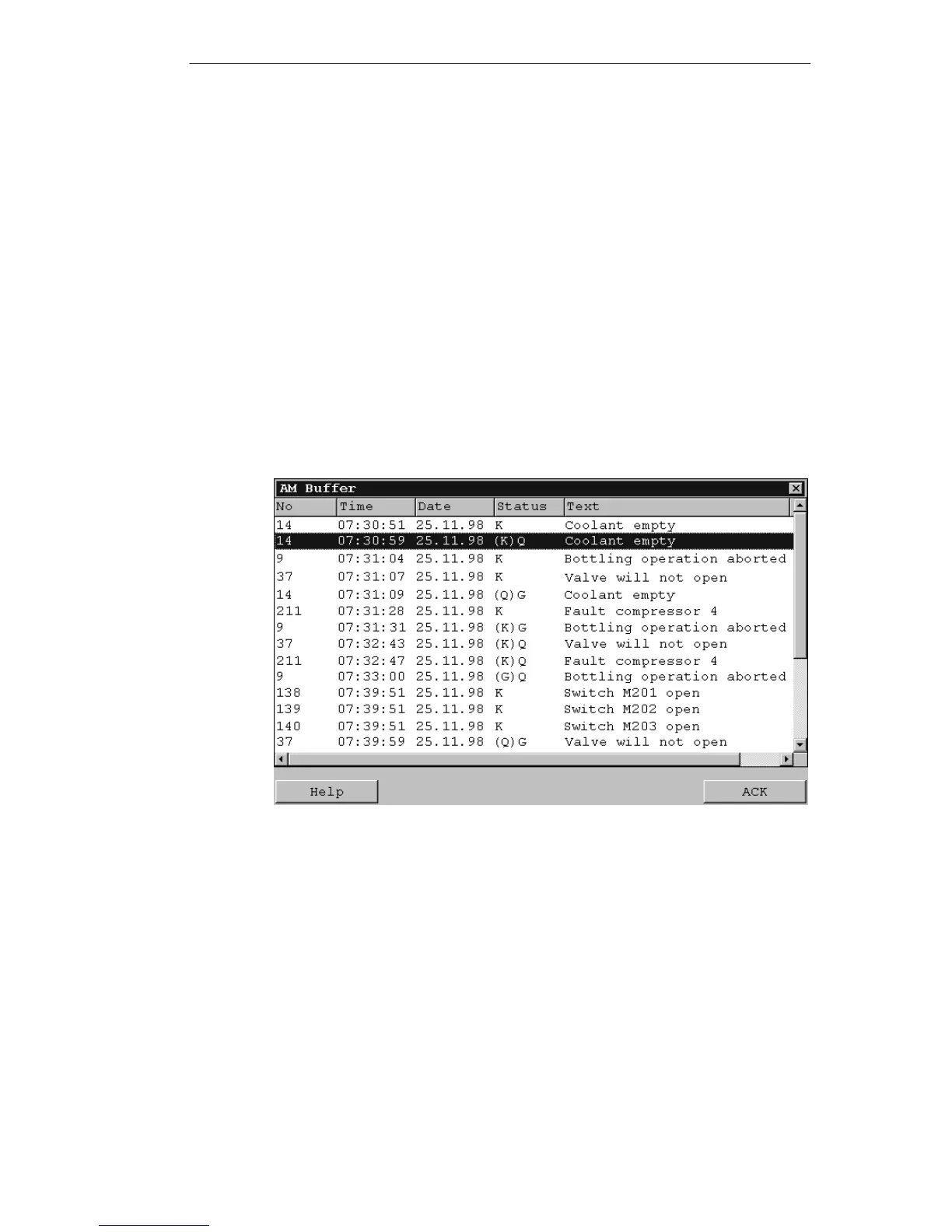

Figure 5-3 illustrates an example of the alarm buffer.
Figure 5-3 Alarm buffer (example)
