Operating Special Screen Objects
5-8
MP270 Equipment Manual
Release 01/99
5.2.3 Message Page
Purpose
The message page displays all messages allocated a time stamp. It is possible to
configure the sorting sequence displayed. Open message pages are constantly
updated.
Structure
In order to have access to the message page for event messages and/or alarm
messages on the MP270, the following functions must have been configured:
for event messages:
Show_event_message_page
for alarm messages:
Show_alarm_message_page

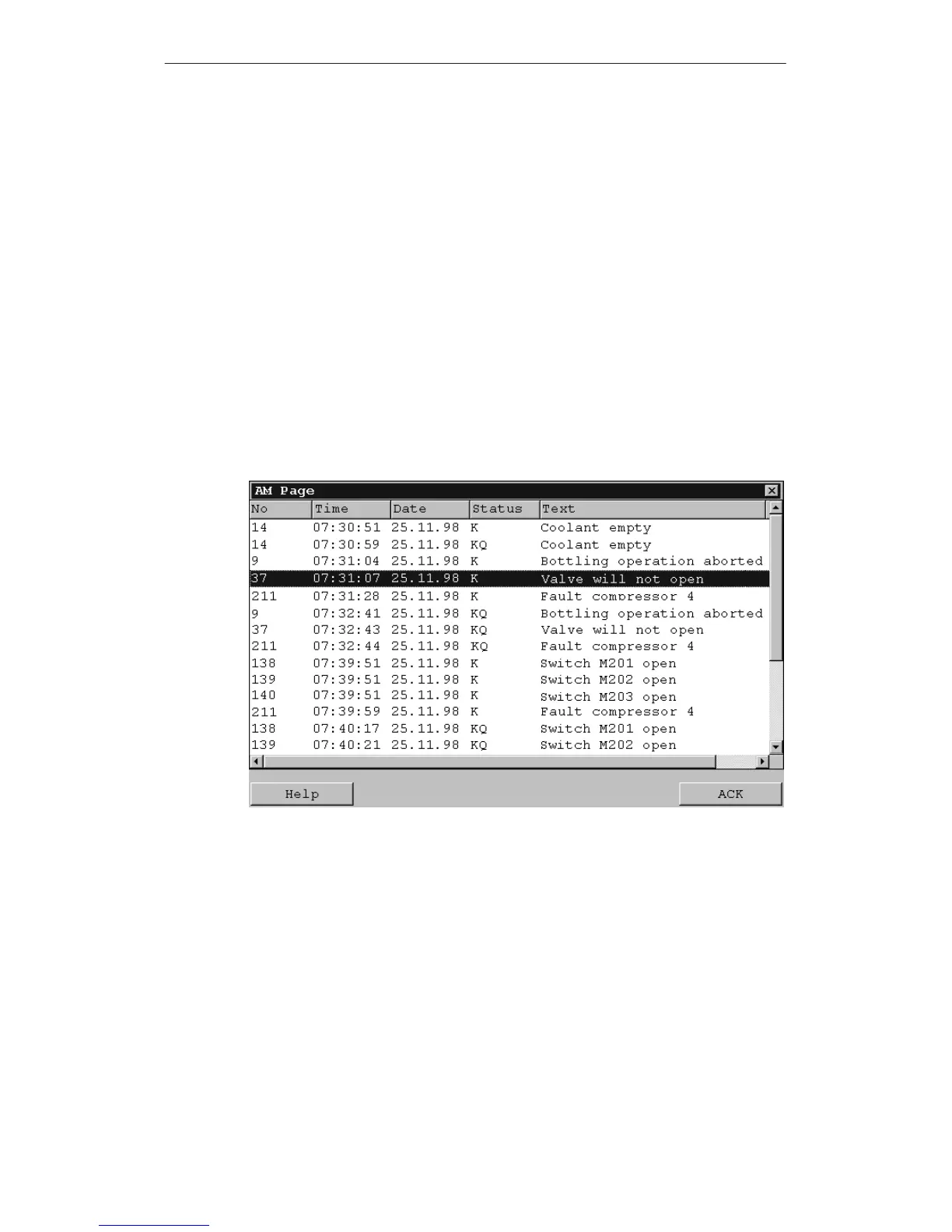

Figure 5-2 illustrates an example of the alarm message page.
Figure 5-2 Alarm message page (example)
