Workpoint Clients Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

10-112 HiPath 3000/5000 V9, Service documentation

wclient.fm

optiPoint Accessories

10.8.2 Headsets

A headset replaces the telephone handset, which means that the user’s hands are free when

telephoning. Cordless headsets (121 TR 9-5) may also be used.

Note: A headset key can be configured for the optiPoint. This allows the user to take calls and

to switch between the handset and the headset.

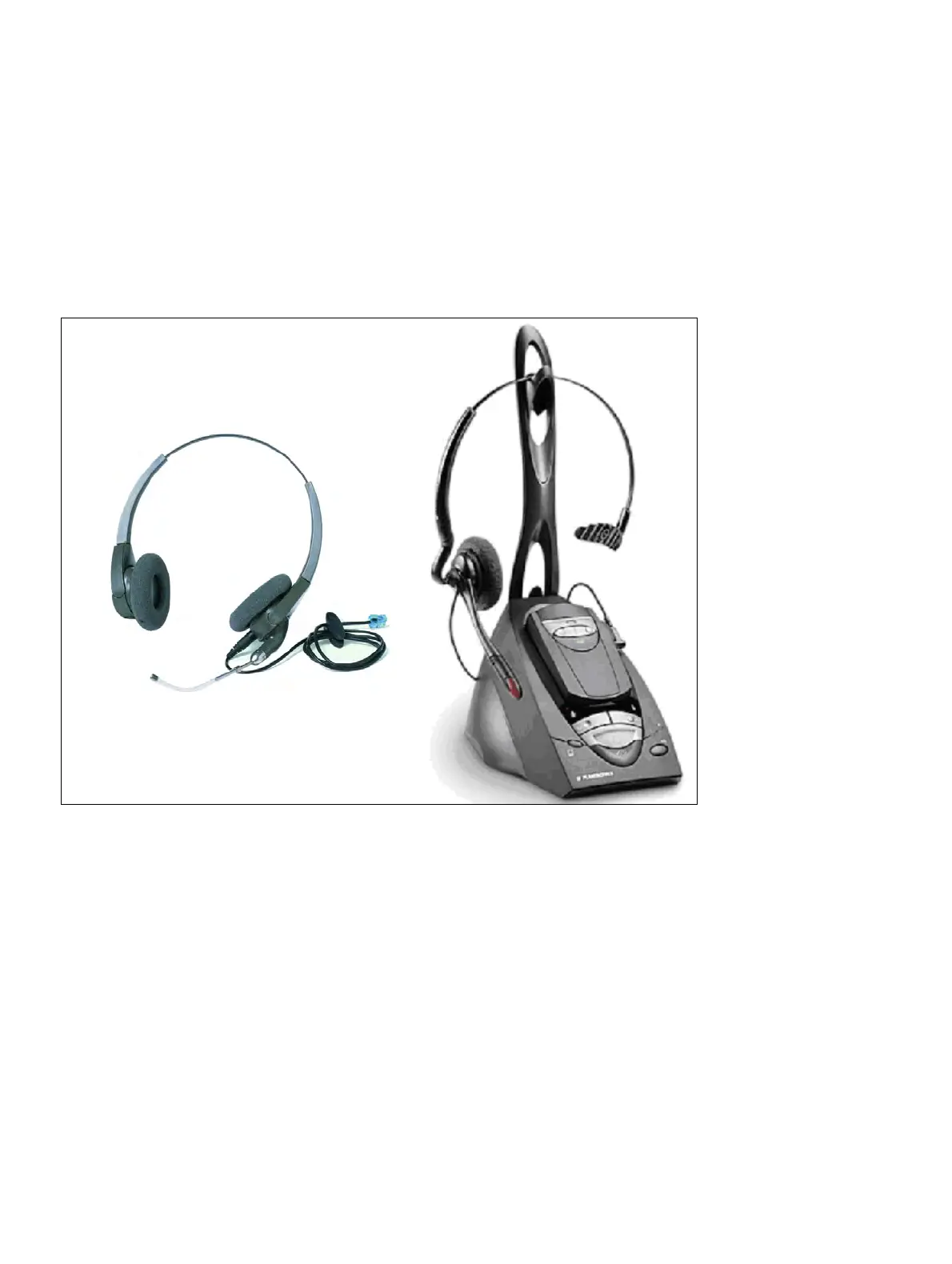

Figure 10-54 Example: Corded and Cordless Headsets
