Connecting Loads
E.2 Switching inductive loads
ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
207
E.2 Switching inductive loads
Connecting inductive loads on PM-E F pm DC24V PROFIsafe, EM 4 F-DO DC24V/2A PROFIsafe
and EM 4 F-DI/3 F-DO DC24V PROFIsafe

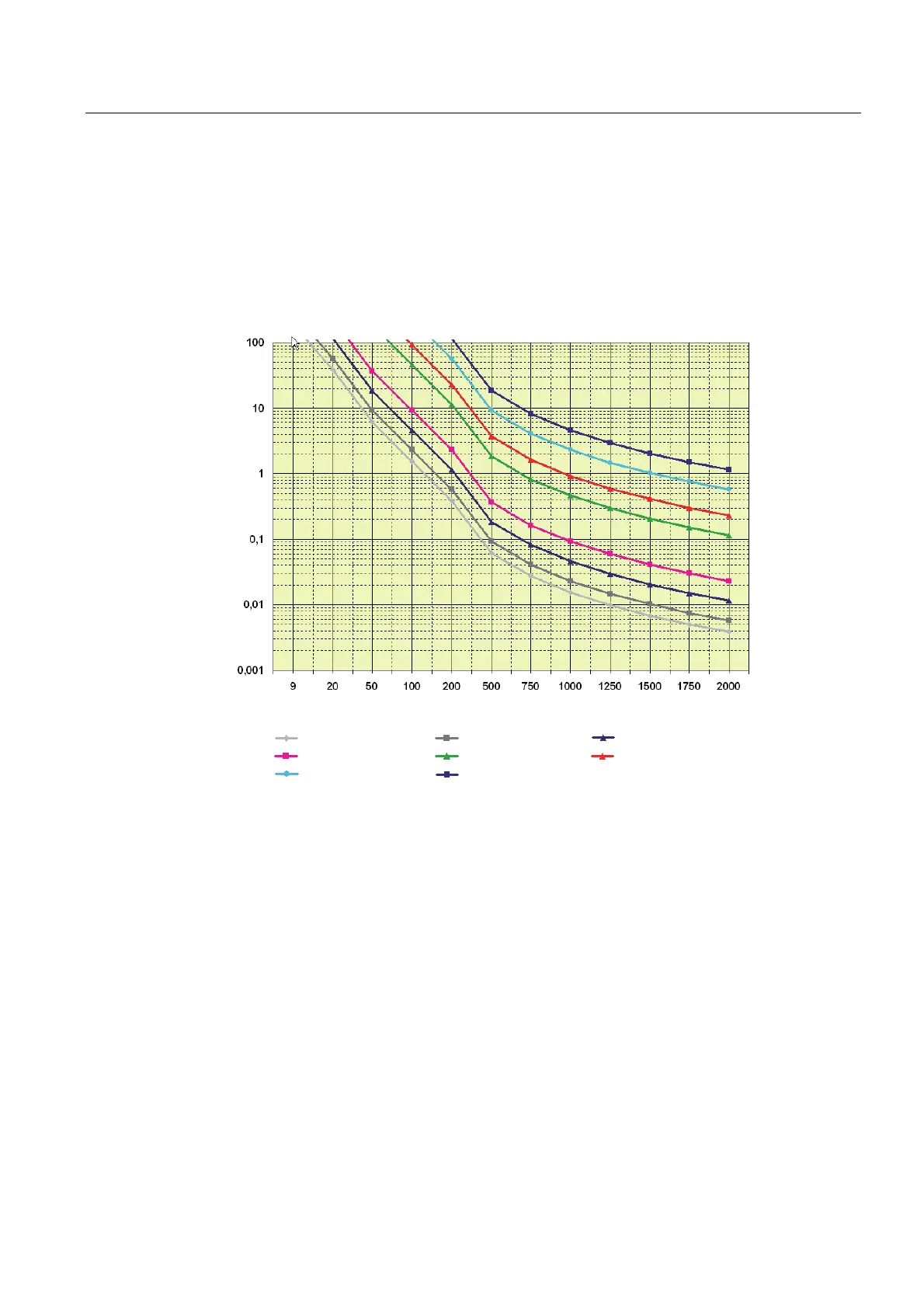

The diagram below shows the maximum permitted inductive loads as a function of the load
current and switching frequency.
,QGXFWLYLW\LQ+
/RDGFXUUHQWLQP$
)UHTXHQF\ +]
)UHTXHQF\ +]
)UHTXHQF\ +]
)UHTXHQF\ +]
)UHTXHQF\ +]
)UHTXHQF\ +]
)UHTXHQF\ +]
)UHTXHQF\ +]
