Fail-Safe Modules
7.2 PM-E F pm DC24V PROFIsafe Power Module
ET 200S Distributed I/O System - Fail-Safe Modules
68 Installation and Operating Manual, 08/2008, A5E00103686-07
WARNING
The SF LED and the status displays of the inputs/outputs are not designed for safety-
related functions and may therefore not be evaluated for safety-related activities.
Terminal Assignment
The following figure and the following table show the terminal assignment of the PM-
E F pm DC 24V PROFIsafe for the supported terminal modules TM-P30S44-A0 or TM-
P30C44-A0.










'&9'&9

00



$8;$8;


'2'2 
33 
'2'2 
00 


'2'2 
33

$8;
'2'2 
00 
$

$



$

$

,QIHHG
,QIHHG
,QIHHG

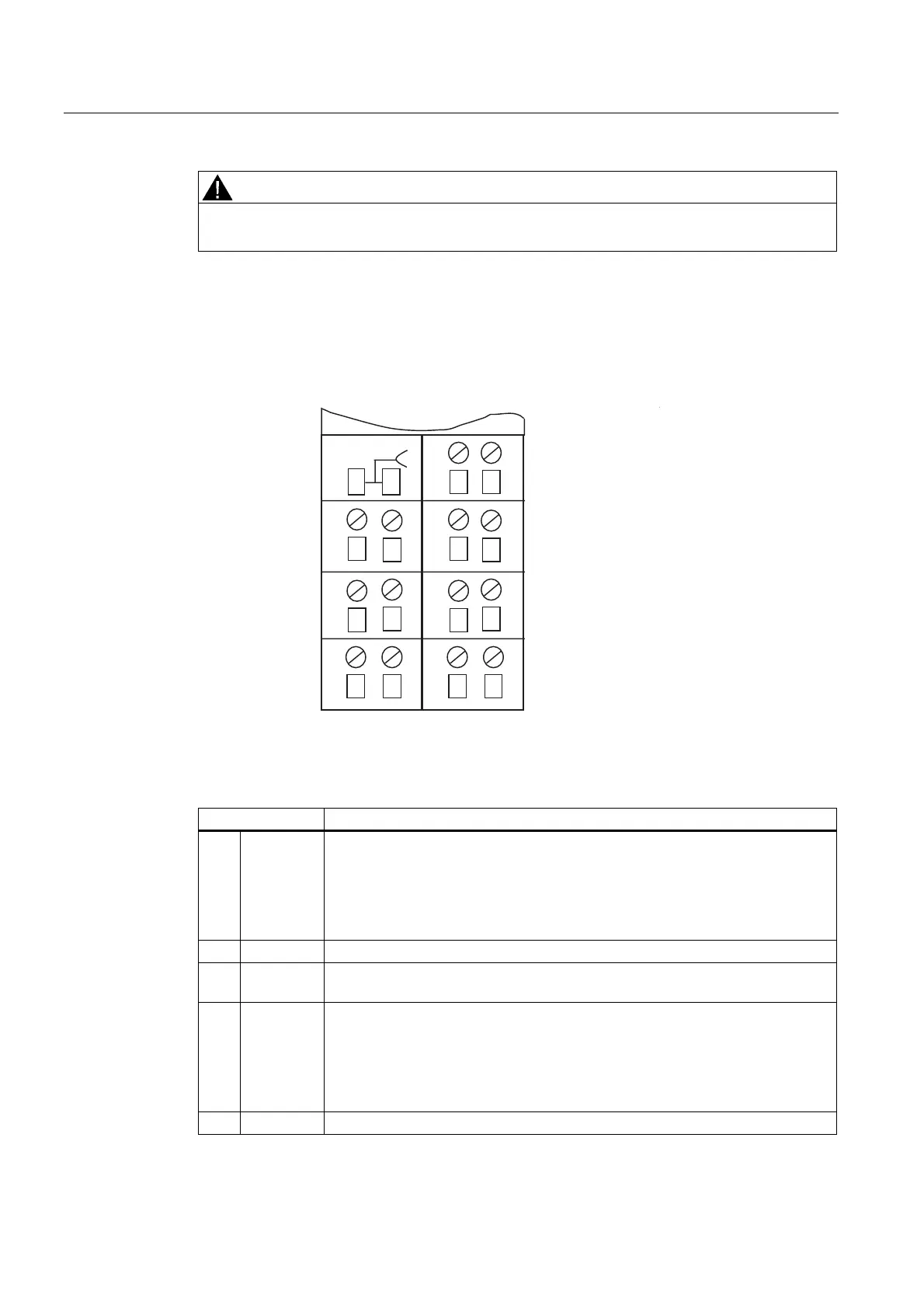

Figure 7-4 Terminal assignment TM-P30S44-A0 or TM-P30C44-A0 for PM-E F pm DC 24V
PROFIsafe
Table 7- 2 Terminal assignment of the TM-P30S44-A0 or TM-P30C44-A0
Terminal Designation
2 24 VDC 24 VDC rated load voltage for:
• Inserted power module
• Corresponding potential group
• DO 0 and DO 1
• Voltage buses P1 and P2
3 M Ground
A
4
AUX 1 Any terminal for PE or voltage bus up to the maximum rated load voltage of the
module
6 24 VDC 24 VDC rated load voltage for:
• Inserted power module
• Corresponding potential group
• DO 0 and DO 1
• Voltage buses P1 and P2
7 M Ground
