Fail-Safe Modules
7.3 PM-E F pp DC24V PROFIsafe power module
ET 200S Distributed I/O System - Fail-Safe Modules
Installation and Operating Manual, 08/2008, A5E00103686-07
87
WARNING
The SF LED and the status displays of the inputs/outputs are not designed for safety-
related functions and may therefore not be evaluated for safety-related activities.
Terminal Assignment
The following figure and the following table show the terminal assignment of the PM-
E F pp DC 24V PROFIsafe for the supported terminal modules TM-P30S44-A0 or TM-
P30C44-A0.
'&9'&9
00
$8;$8;
33
$8;
00
$
$
$
$
,QIHHG
,QIHHG
,QIHHG

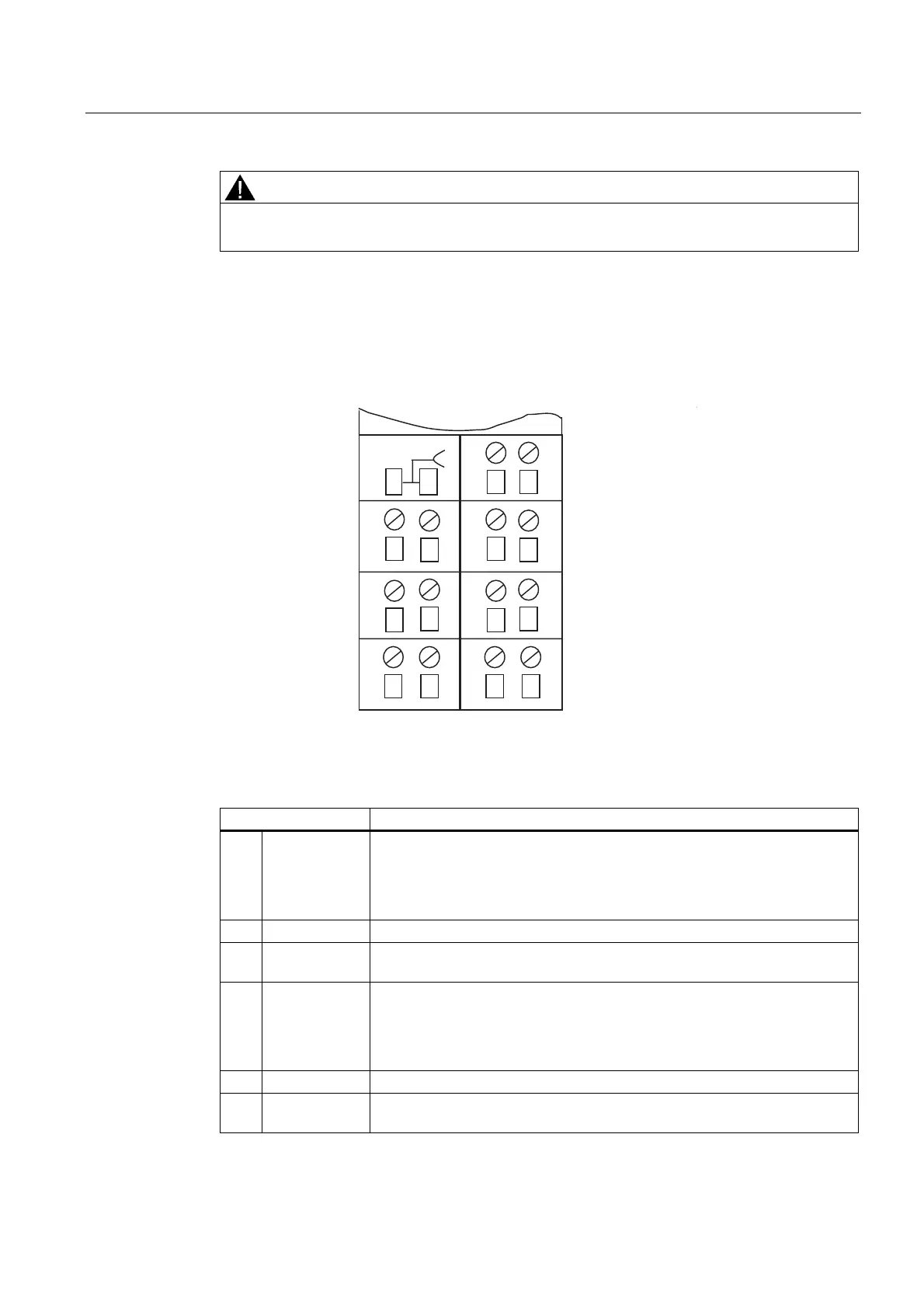

Figure 7-10 Terminal assignment TM-P30S44-A0 or TM-P30C44-A0 for PM-E F pp DC 24V
PROFIsafe
Table 7- 7 Terminal assignment of the TM-P30S44-A0 or TM-P30C44-A0
Terminal Designation
2 24 VDC 24 VDC rated load voltage for:
• Inserted power module
• Corresponding voltage group and
• Voltage bus P2
3 M Ground
A
4
AUX 1 Any terminal for PE or voltage bus up to the maximum rated load voltage of
the module
6 24 VDC 24 VDC rated load voltage for:
• Inserted power module
• Corresponding voltage group and
• Voltage bus P2
7 M Ground
A
8
AUX 1 Any terminal for PE or voltage bus up to the maximum rated load voltage of
the module
