9.4 BACnet
9.4.1 Commission the BACnet/IP module
Participating devices
− Climatix controller POL6XX.
− Communication module POL908.
Participating tools:
− Operator unit (HMI).
− PC with web browser.

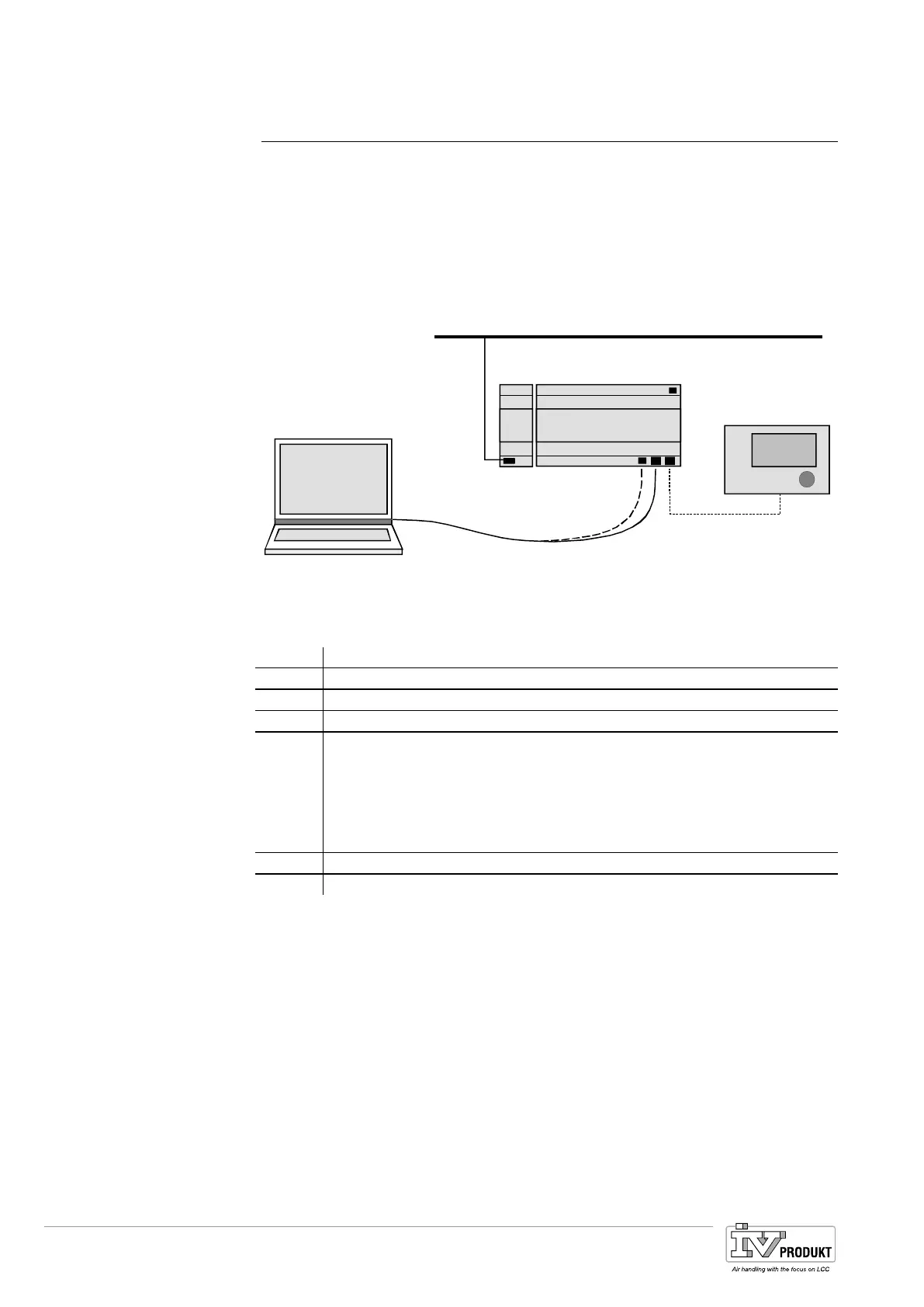

P3933Z27
BACnet / Ethernet IP
POL908 / POL6XX
HMI
PC
SCOPE
WEB
The SAPRO application (MBRCode.bin) is fully commissioned.
The BACnet/IP module is connected to the bus and configured. Procedure:
Step Action
1 Controller OFF.
2 Connect BACnet/IP module to the controller via plug connection.
3 Connect the BACnet/IP bus cable to the module.
4 Controller ON:
The module starts / initialization begins.
As soon as the two LEDs "BSP" and "BUS" are steady green, com-
munication with the controller and bus (BACnet) is active.
Caution:
HMI must be reset a second time to update; prior to parameterization.
5 Enter BACnet settings via HMI and web browser.
6 Configure BACnet/IP module.
Devices
Tools
Illustration
Prerequisite
Commission BACnet/IP
module
