Functions
KNX communications (RDG2..KN)
4
120 | 186
A6V11545892_en--_e
● Binding setting on subordinate
4

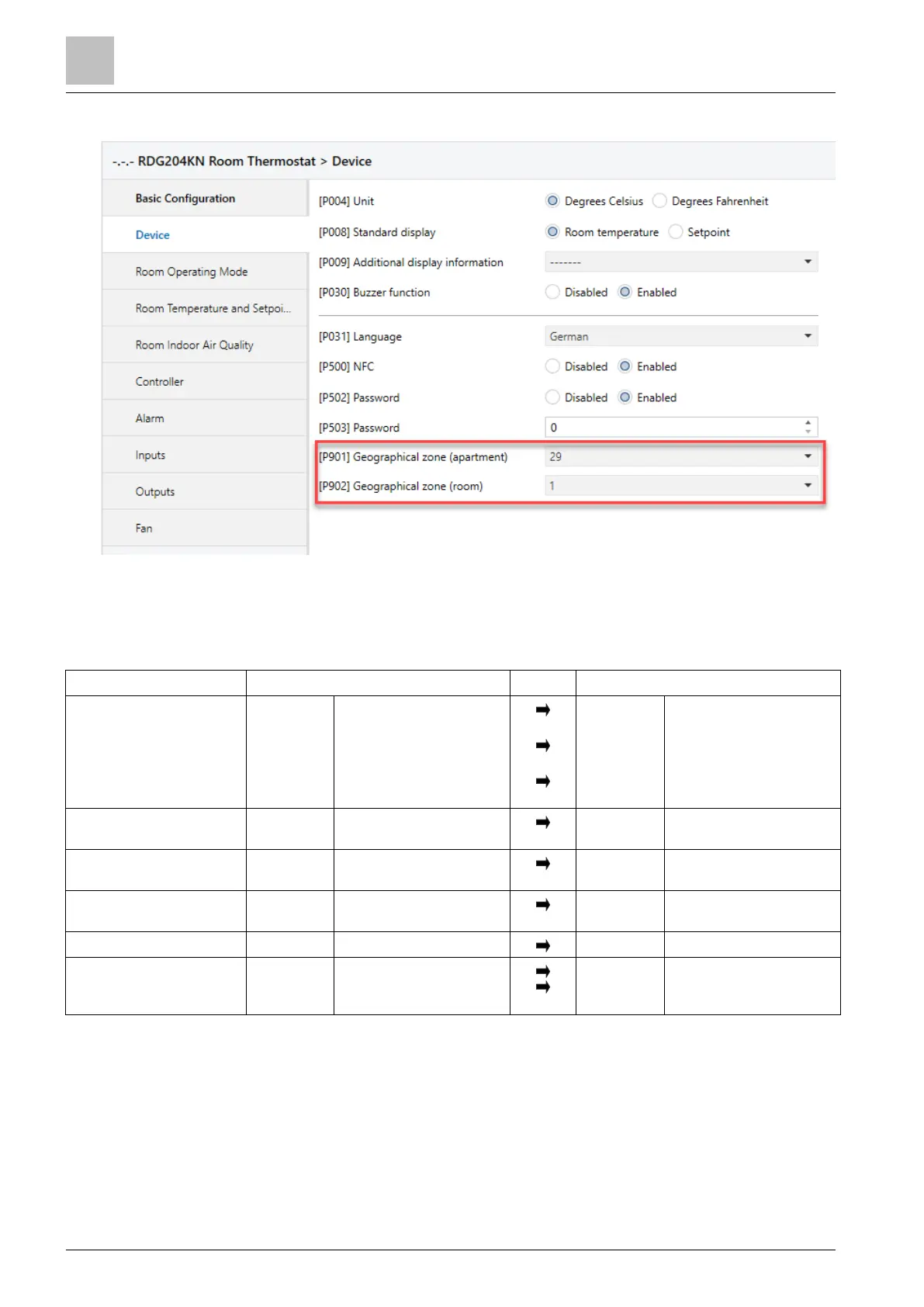

The M/S - manager/subordinate binding is set using communication objects, for
object details, see Manager/subordinate communication in KNX S-Mode [➙ 68].
S-Mode objects manager
S-Mode objects subordinate
Setpoint:
[90]
[91]
[27]
Room temp: Current cooling
setpoint (send)
Room temp: Current heating
setpoint (send)
Room temp: Comfort setpoint
abs (send)
[93]
[92]
[26]
Room temp: Current cooling
setpoint (receive)
Room temp: Current heating
setpoint (receive)
Room temp: Comfort setpoint
abs (receive)
Room temperature:
[37]
Built-in room temperature
value
[36]
External room temperature
value
Room humidity:
[77]
Built-in room relative humidity
value [%r.h.]
[78]
External room relative
humidity value [% r.h.]
Operation mode:
[17]
Room operating mode: Status
[94]
Room operating mode: Status
(receive)
ChangeOverWater:
[95]
ChangeOverWater status
[96]
ChangeOverWater status
Fan speed:
[97]
[51]
Manual fan command value
(send)
FanStatus
[52]
[50]
Fan command value
FanManual
M/S - manager/subordinate binding via communication objects
