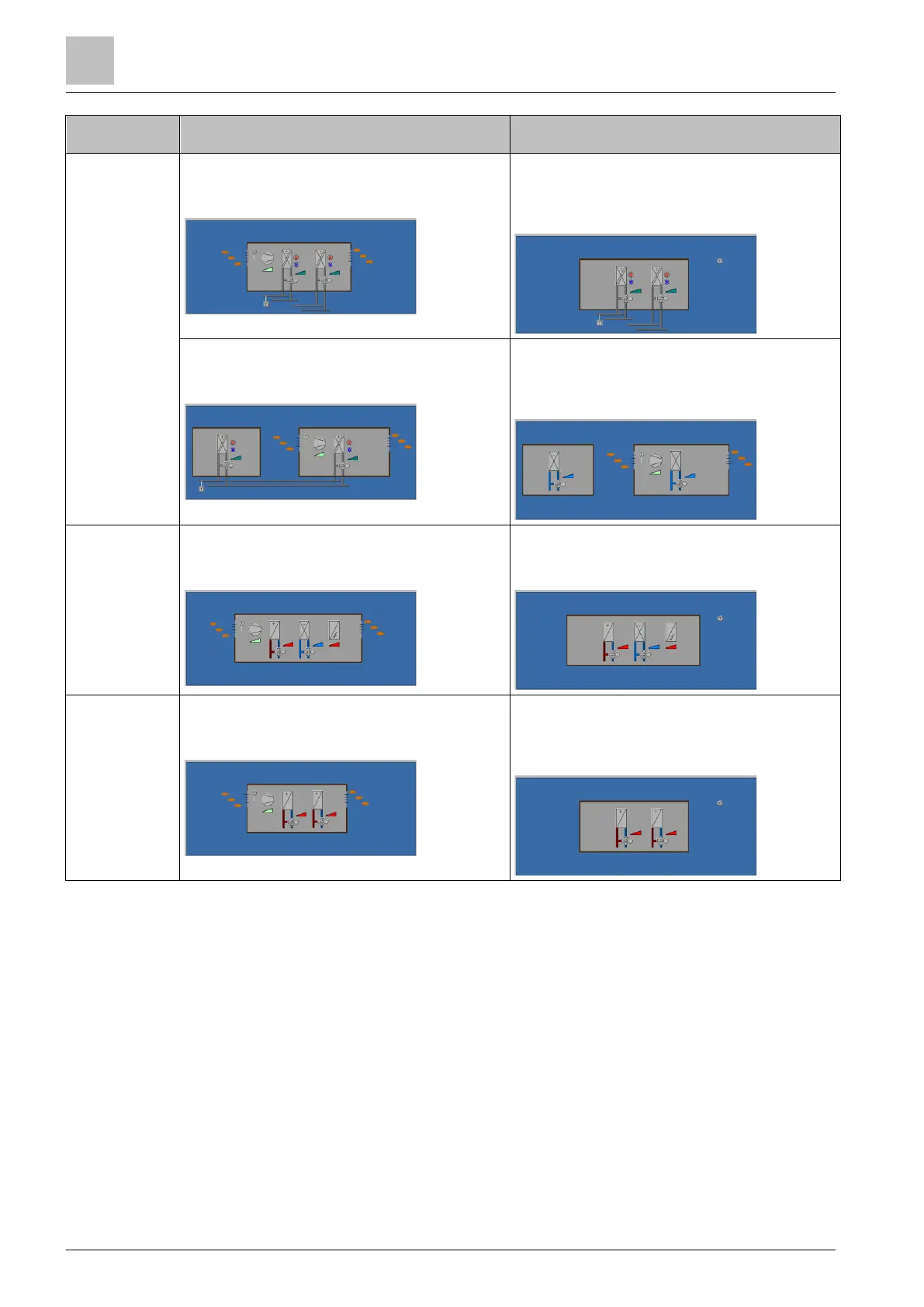

Plant type
Application
configuration
Application
configuration
2-pipe/2-stage
heating or cooling
2-pipe/2-stage fan coil unit
– Control sequence: No impact (P001 = any)
– Fan operation: Enabled (P350 <> 0)
2-pipe/2-stage
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
2-pipe/2-stage fan coil unit
– Control sequence: No impact (P001 = any)
– Fan operation: 2
nd
stage (P350 = 4)
2-pipe/2-stage
– Control sequence: No impact (P001 = any)
– Fan operation: 2
nd
stage (P350 = 5)
4-pipe with electric
heater
4-pipe fan coil unit with electric heater
– Control sequence: Not auto c/o (P001 > 2)
– Fan operation: Enabled (P350 <> 0)
1 stage Heat and Cool with electric heater
– Control sequence: No impact (P001 <> 2)
– Fan operation: Disabled (P350 = 0)
4-pipe/2-stage
4-pipe/2-stage fan coil unit
– Control sequence: Not auto c/o (P001 > 2)
– Fan operation: Enabled (P350 <> 0)
4-pipe/2-stage
– Control sequence: Not auto c/o (P001 > 2)
– Fan operation: Disabled (P350 = 0)
