Supported tools
ACS tool
5
A6V11545892_en--_e
155 | 186

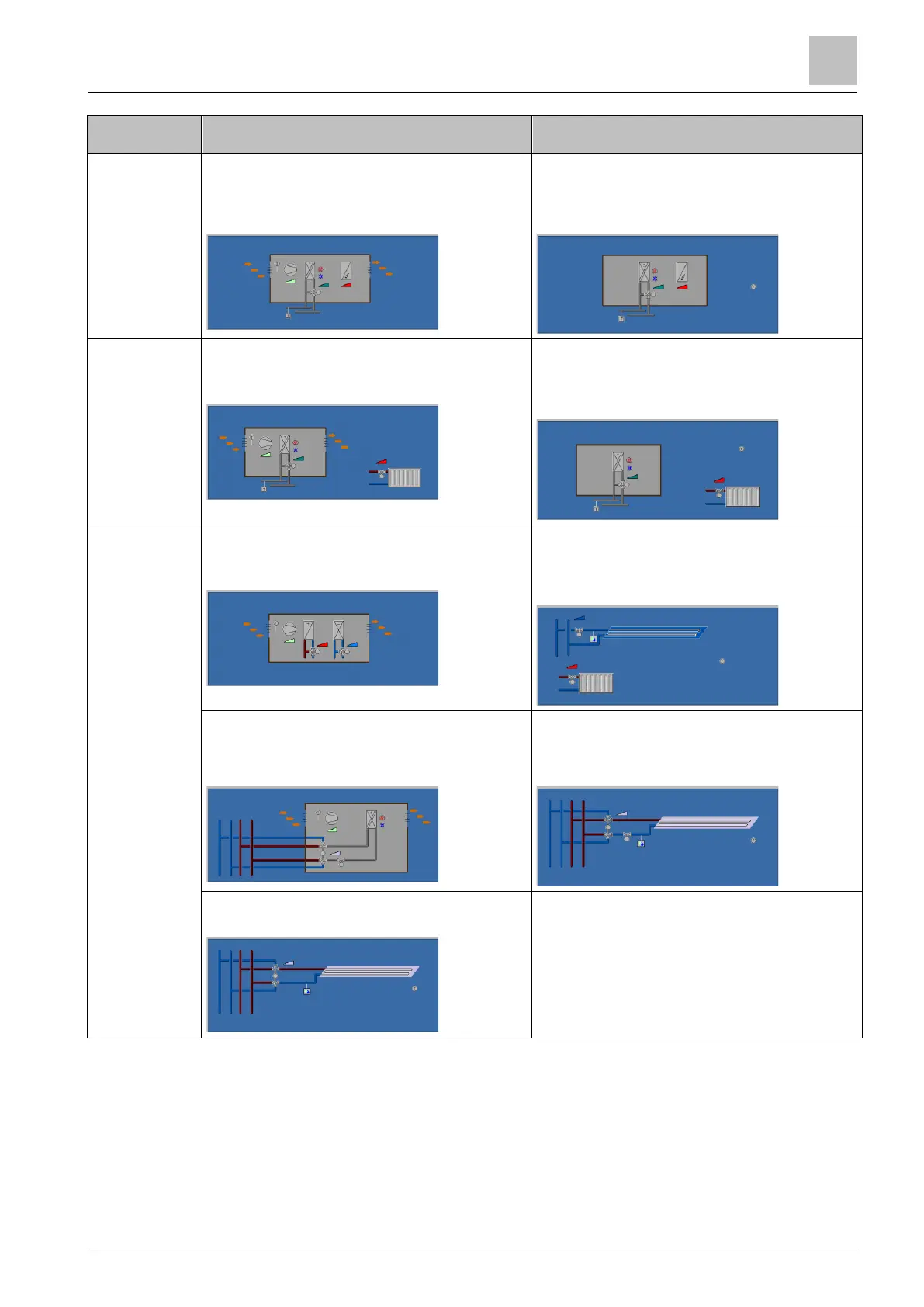

Plant type
Application
configuration
Application
configuration
2-pipe with electric
heater
2-pipe fan coil unit with electric heater
– Control sequence: No impact
(P001 = any)
– Fan operation: Enabled (P350 <> 0)
Single-stage with electric heater
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
2-pipe with
radiator
2-pipe fan coil unit with radiator
– Control sequence: No impact (P001 = any)
– Fan operation: Enabled (P350 <> 0)
Single-stage with radiator
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
4-pipe
4-pipe fan coil unit
– Control sequence: Not auto c/o (P001 <> 3)
– Fan operation: Enabled (P350 <> 0)
Chilled ceiling with radiator
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
4-pipe fan coil unit with PICV and 6-port control ball
valve as changeover
– Fan operation: Must be enabled
(P350 <> 0)
H/C ceiling with PICV and 6-port control ball valve as
changeover
– Fan operation: Disabled (P350 = 0)
H/C ceiling with 6-port valve
– Fan operation: Disabled (P350 = 0)
