Supported tools
ACS tool
5
154 | 186
A6V11545892_en--_e
To start the application, select Applications ➙ Plant operation ➙ Standard
diagram.

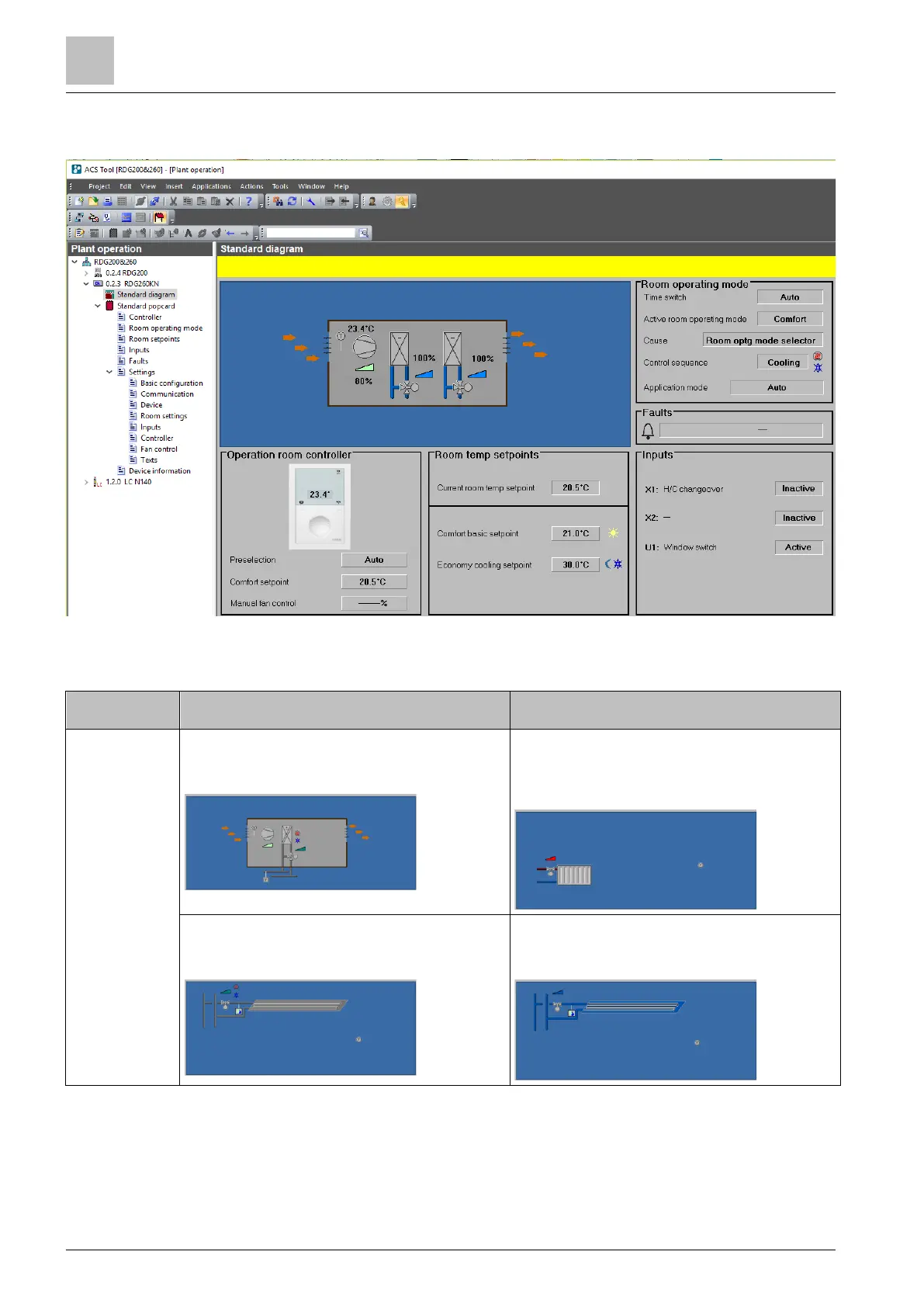

The ACS tool provides standard plant diagrams for RDG2..KN room thermostats,
depending on the following configuration:
Plant type
Application
configuration
Application
configuration
2-pipe
2-pipe fan coil unit
– Control sequence: No impact (P001 = any)
– Fan operation: Enabled (P350 <> 0)
Radiator
– Control sequence: Heating only (P001 = 0)
– Fan operation: Disabled (P350 = 0)
Chilled/heated ceiling
– Control sequence: Changeover
– Fan operation: Disabled (P350 = 0)
Chilled ceiling
– Control sequence: Cooling only (P001 = 1)
– Fan operation: Disabled (P350 = 0)
